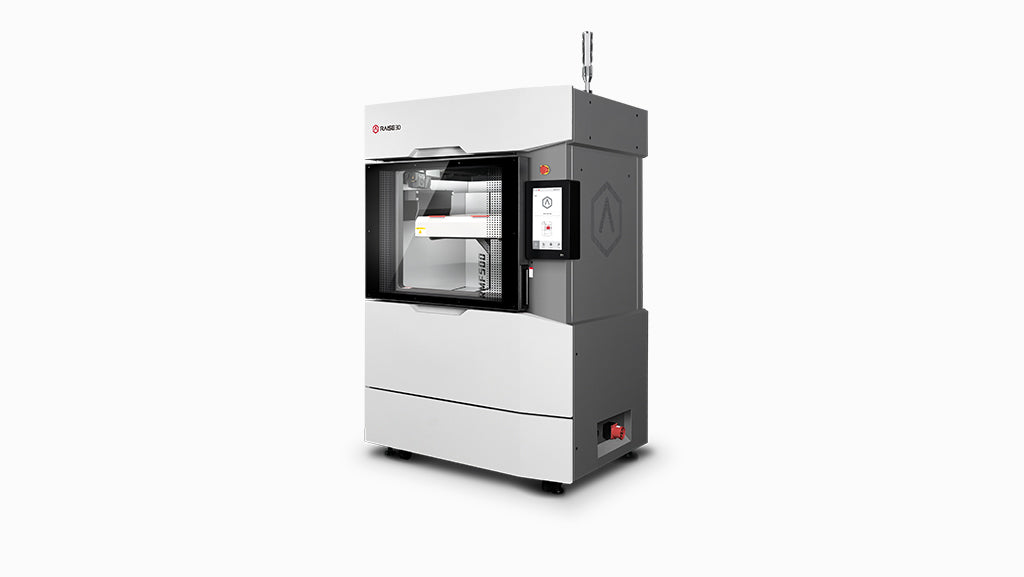

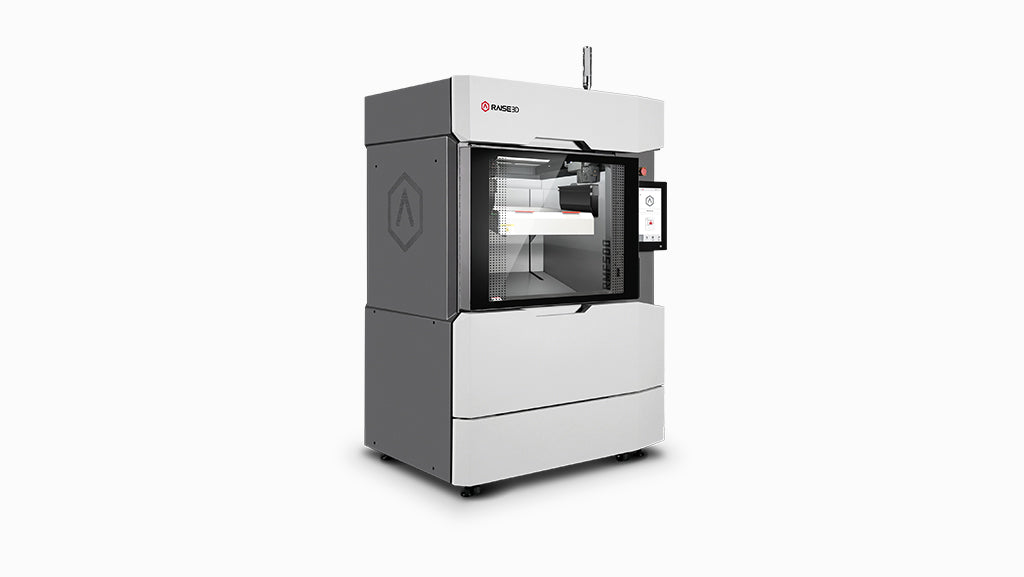

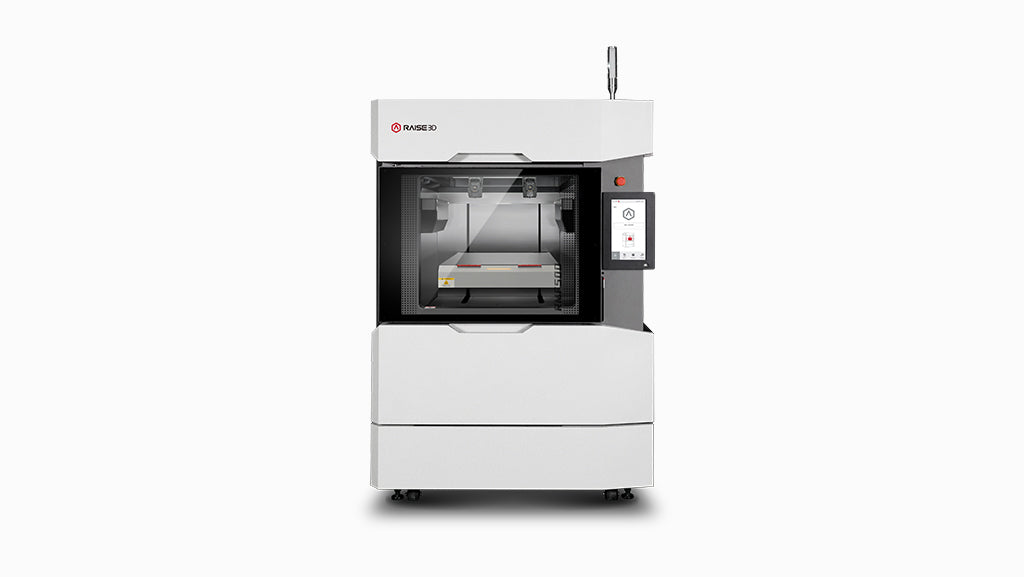

Raise3D RMF500 3D Printer
Raise3D RMF500 3D Printer
Raise3D RMF500 is a reliable and precise industrial 3D printer that produces small batch customized part with high repeatability. It inherits Raise3D’s proven expertise in FFF technology and polymer material science. Raise3D RMF500 has a large build volume of 500 x 500 x 500 mm and a maximum printing speed of 500 mm/s, making it an ideal choice for industrial manufacturing.
- High Productivity with Large Build Volume
- Engineered for High Repeatability and Precision
- Designed for Uninterrupted Production
- Diversified High-Performance Engineering Materials
- More Open
- More Affordable

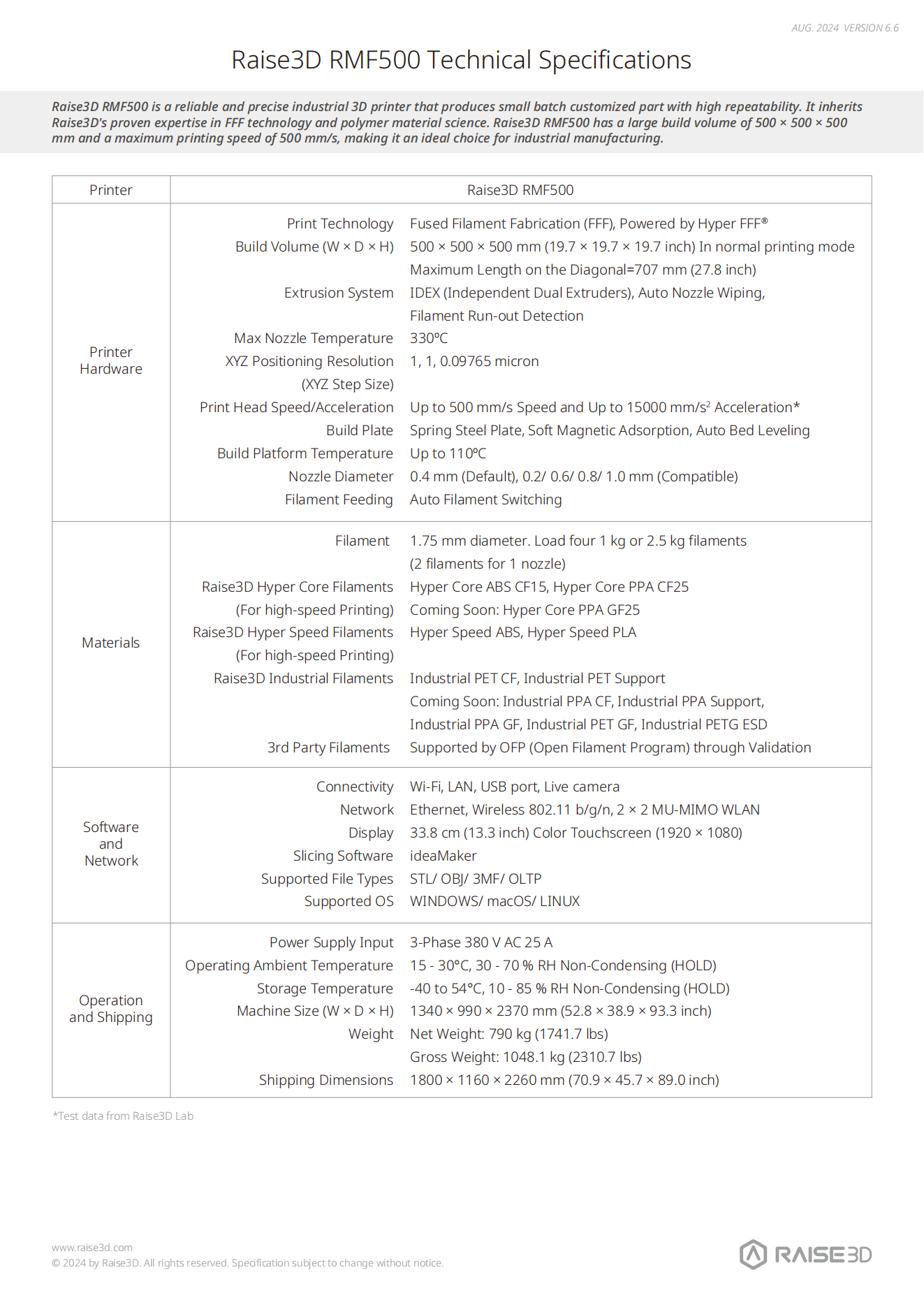

Specification:
Machine Size (W x D x H): 1340 x 990 x 2370 mm (52.8 x 39 x 93.3 inch)
Build Size: 500 x 500 x 500 mm (19.7 x 19.7 x 19.7 inch)
Printing Speed: ≤500 mm/s
Print Head Acceleration: ≤15000 mm/s2
XYZ Positioning Resolution (XYZ Step Size) : 1, 1, 0.09765 micron
Extrusion System: IDEX
Maximum Build Platform Temperature: 110°C
Extruder Maximum Heating Temperature: 330°C

Product Support

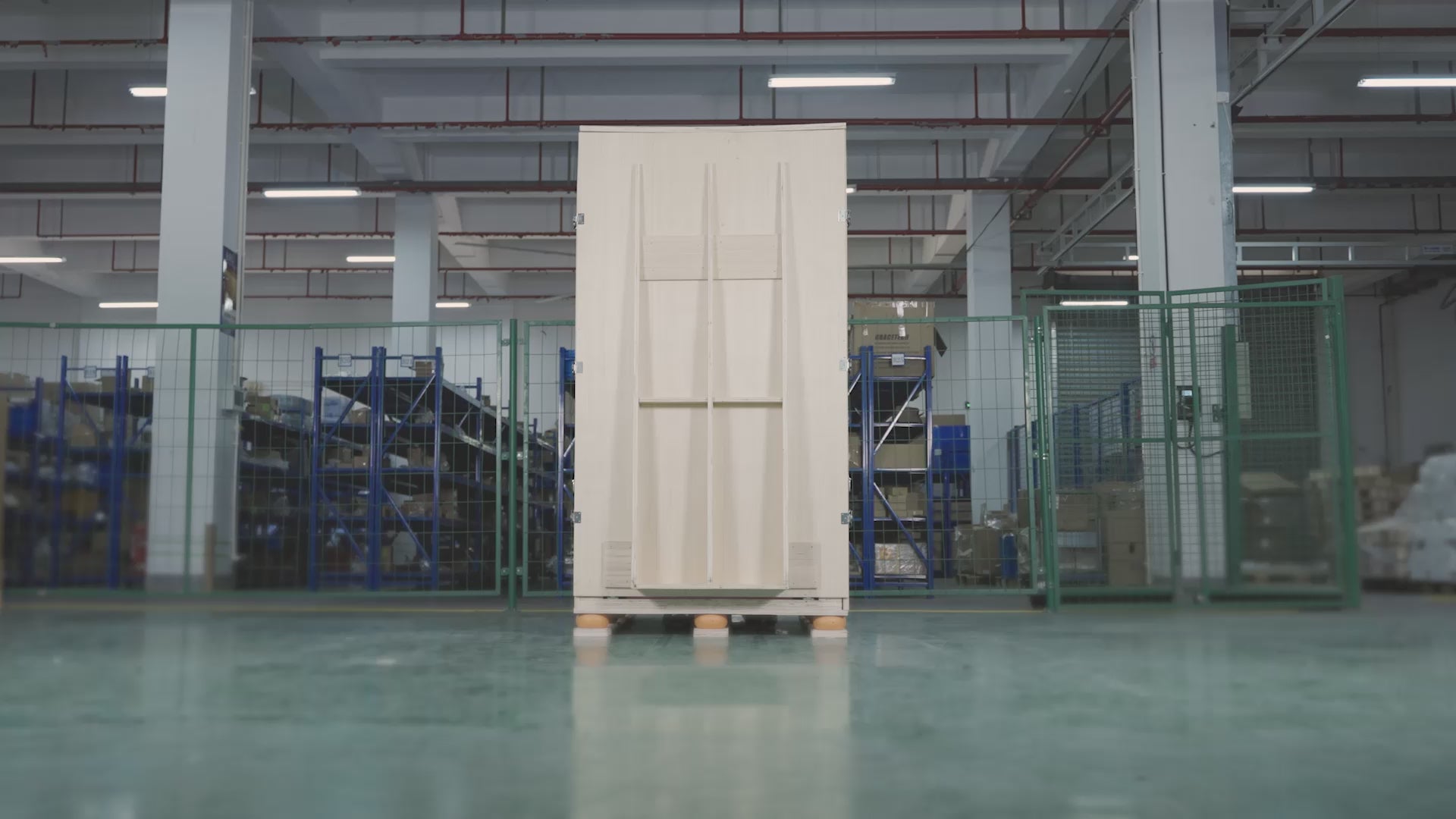

Step 1:UnpackCut ties, remove wooden brackets and screws with supplied tools. Roll printer on casters to site, lock feet, unpack power cable, key and toolboxes.
Step 2:Install TrayConfirm 380 V supply, connect power, switch on main breaker, release e-stop, start printer and follow wizard.Step 3:CalibrateLoad four filament spools into cartridges, insert ends into feeding holes for auto-loading.Step 4 :Start PrintRun 3-step offset calibration (30–60 min), settings auto-save; printer ready.
