Pro2 Series Accessories

Filters

Sort by:

42 products

PEI Build Plate Assembly without Soft Magnetic Laminate for Raise3D Pro2 SeriesPEI Build Plate Assembly with Soft Magnetic Laminate for Raise3D Pro2 Series - view 2
PEI Build Plate Assembly with Soft Magnetic Laminate (Pro2 Series Only)
PEI Build Plate Assembly without Soft Magnetic Laminate for Raise3D Pro2 SeriesRaise3D,INC. · Spare Parts

PRODUCT OVERVIEW

PEI Build Plate Assembly with Soft Magnetic Laminate (Pro2 Series Only)

$ 54.99

Product details

  • ProductPEI Build Plate Assembly with Soft Magnetic Laminate (Pro2 Series Only). Listed SKU: [S]3.01.1.017.027A01.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • SpecificationsProduct specifications: PEI Build Plate Product Size (WxDxH): 331.8 × 340 × 0.6 mm Print Area Size: 305 × 305 mm Printer Compatibility: Raise3D Pro2 Series Included: 1 × PEI Build Plate (Pro2 Series Only) 1 × Soft Magnetic Laminate. The PEI Build Plate (Pro2 Series Only) is made of high strength spring steel sheet with double-sided PEI coated powder, which is characterized by high temperature resistance, excellent flame retardancy, high strength and high rigidity. Benefits: Double-sided PEI coating, and both sides can be used for printing, with excellent durability. High Flatness and flexible design to facilitate printed model removal. Model can be easily removed by gently bending the plate. High temperature resistance, excellent flame retardancy, high strength, and high rigidity. Compatible with a wide range of materials. Strong first-layer bonding (when printing certain filaments, glue is required). For more information on filament compatibility and requirement of the glue, please refer to this list . Notes: For Pro2 Series users, if you wish to use the PEI Build Plate for the first time, please purchase the PEI Build Plate Assembly with Soft Magnetic Laminate (Pro2 Series Only), and apply the Soft Magnetic Laminate before using the PEI Build Plate. For detailed instructions, please visit here . Once your Pro2 Series printer has the Soft Magnetic Laminate on it, and if you need to purchase more PEI Build Plate for replacement, you can purchase directly the PEI Build Plate (Pro2 Series Only) without Soft Magnetic Laminate. After applying the Soft Magnetic Laminate and the PEI Build Plate, please calibrate the nozzle height following the detailed instructions here . The current slicing profiles for the Pro2 Series are compatible with the prints on the PEI Build Plate. Dust, grease, and print residue can reduce the adhesion of the PEI Build Plate. Regular cleaning of the surface with mild detergent (such as alcohol) and water is recommended to maintain optimal adhesion. Avoid using any strong detergents or acetone as they may damage the PEI surface. If adhesion on the PEI Build Plate surface is reduced, the textured PEI surface can be carefully sanded with fine sandpaper (600 grit recommended) to help restore adhesion. The PEI coating may bring some textures to the bottom of the printed part. For users who require a smooth print finish, it is necessary to use Raft, which may require to use more filament, and has the risk of ripping the model when removing Raft (especially for thin-walled structures). Please avoid using a spatula to help remove the printed model, as the spatula may scratch or damage the PEI surface or even cause the coating to peel off. Safety warnings: The edge of the printing plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands. Do not touch the printing plate with your hands during printing. After printing, the temperature of the printing plate is extremely high. Please wait for the printing plate to drop to room temperature before taking it out.

Product description

Product specifications:

PEI Build Plate Product Size (WxDxH): 331.8 × 340 × 0.6 mm

Print Area Size: 305 × 305 mm

Printer Compatibility: Raise3D Pro2 Series

Included:

1 × PEI Build Plate (Pro2 Series Only)

1 × Soft Magnetic Laminate.

The PEI Build Plate (Pro2 Series Only) is made of high strength spring steel sheet with double-sided PEI coated powder, which is characterized by high temperature resistance, excellent flame retardancy, high strength and high rigidity.

Benefits:

  • Double-sided PEI coating, and both sides can be used for printing, with excellent durability.
  • High Flatness and flexible design to facilitate printed model removal. Model can be easily removed by gently bending the plate.
  • High temperature resistance, excellent flame retardancy, high strength, and high rigidity.
  • Compatible with a wide range of materials.
  • Strong first-layer bonding (when printing certain filaments, glue is required).

For more information on filament compatibility and requirement of the glue, please refer to this list.

Notes:

  1. For Pro2 Series users, if you wish to use the PEI Build Plate for the first time, please purchase the PEI Build Plate Assembly with Soft Magnetic Laminate (Pro2 Series Only), and apply the Soft Magnetic Laminate before using the PEI Build Plate. For detailed instructions, please visit here. Once your Pro2 Series printer has the Soft Magnetic Laminate on it, and if you need to purchase more PEI Build Plate for replacement, you can purchase directly the PEI Build Plate (Pro2 Series Only) without Soft Magnetic Laminate.
  2. After applying the Soft Magnetic Laminate and the PEI Build Plate, please calibrate the nozzle height following the detailed instructions here.
  3. The current slicing profiles for the Pro2 Series are compatible with the prints on the PEI Build Plate.
  4. Dust, grease, and print residue can reduce the adhesion of the PEI Build Plate. Regular cleaning of the surface with mild detergent (such as alcohol) and water is recommended to maintain optimal adhesion. Avoid using any strong detergents or acetone as they may damage the PEI surface.
  5. If adhesion on the PEI Build Plate surface is reduced, the textured PEI surface can be carefully sanded with fine sandpaper (600 grit recommended) to help restore adhesion.
  6. The PEI coating may bring some textures to the bottom of the printed part. For users who require a smooth print finish, it is necessary to use Raft, which may require to use more filament, and has the risk of ripping the model when removing Raft (especially for thin-walled structures).
  7. Please avoid using a spatula to help remove the printed model, as the spatula may scratch or damage the PEI surface or even cause the coating to peel off.

Safety warnings:

  1. The edge of the printing plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands.
  2. Do not touch the printing plate with your hands during printing.
  3. After printing, the temperature of the printing plate is extremely high. Please wait for the printing plate to drop to room temperature before taking it out.

Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]3.01.1.017.027A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 54.99
Add to cart
PEI Build Plate Assembly without Soft Magnetic Laminate for Raise3D Pro2 Series
PEI Build Plate Assembly without Soft Magnetic Laminate (Pro2 Series Only)
PEI Build Plate Assembly without Soft Magnetic Laminate for Raise3D Pro2 SeriesRaise3D,INC. · Spare Parts

PRODUCT OVERVIEW

PEI Build Plate Assembly without Soft Magnetic Laminate (Pro2 Series Only)

$ 49.99

Product details

  • ProductPEI Build Plate Assembly without Soft Magnetic Laminate (Pro2 Series Only). Listed SKU: [S]3.01.1.017.028A01.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • SpecificationsProduct specifications: PEI Build Plate Product Size (WxDxH): 331.8 × 340 × 0.6 mm Print Area Size: 305 × 305 mm Printer Compatibility: Raise3D Pro2 Series Included: 1 × PEI Build Plate (Pro2 Series Only) The PEI Build Plate (Pro2 Series Only) is made of high strength spring steel sheet with double-sided PEI coated powder, which is characterized by high temperature resistance, excellent flame retardancy, high strength and high rigidity. Benefits: Double-sided PEI coating, and both sides can be used for printing, with excellent durability. High Flatness and flexible design to facilitate printed model removal. Model can be easily removed by gently bending the plate. High temperature resistance, excellent flame retardancy, high strength, and high rigidity. Compatible with a wide range of materials. Strong first-layer bonding (when printing certain filaments, glue is required). For more information on filament compatibility and requirement of the glue, please refer to this list . Notes: For Pro2 Series users, if you wish to use the PEI Build Plate for the first time, please purchase the PEI Build Plate Assembly with Soft Magnetic Laminate (Pro2 Series Only) , and apply the Soft Magnetic Laminate before using the PEI Build Plate. For detailed instructions, please visit here . Once your Pro2 Series printer has the Soft Magnetic Laminate on it, and if you need to purchase more PEI Build Plate for replacement, you can purchase directly the PEI Build Plate (Pro2 Series Only) without Soft Magnetic Laminate. After applying the PEI Build Plate, please calibrate the nozzle height following the detailed instructions here . The current slicing profiles for the Pro2 Series are compatible with the prints on the PEI Build Plate. Dust, grease, and print residue can reduce the adhesion of the PEI Build Plate. Regular cleaning of the surface with mild detergent (such as alcohol) and water is recommended to maintain optimal adhesion. Avoid using any strong detergents or acetone as they may damage the PEI surface. If adhesion on the PEI Build Plate surface is reduced, the textured PEI surface can be carefully sanded with fine sandpaper (600 grit recommended) to help restore adhesion. The PEI coating may bring some textures to the bottom of the printed part. For users who require a smooth print finish, it is necessary to use Raft, which may require to use more filament, and has the risk of ripping the model when removing Raft (especially for thin-walled structures). Please avoid using a spatula to help remove the printed model, as the spatula may scratch or damage the PEI surface or even cause the coating to peel off. Safety warnings: The edge of the printing plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands. Do not touch the printing plate with your hands during printing. After printing, the temperature of the printing plate is extremely high. Please wait for the printing plate to drop to room temperature before taking it out.

Product description

Product specifications:

PEI Build Plate Product Size (WxDxH): 331.8 × 340 × 0.6 mm

Print Area Size: 305 × 305 mm

Printer Compatibility: Raise3D Pro2 Series

Included:

1 × PEI Build Plate (Pro2 Series Only)

The PEI Build Plate (Pro2 Series Only) is made of high strength spring steel sheet with double-sided PEI coated powder, which is characterized by high temperature resistance, excellent flame retardancy, high strength and high rigidity.

Benefits:

  • Double-sided PEI coating, and both sides can be used for printing, with excellent durability.
  • High Flatness and flexible design to facilitate printed model removal. Model can be easily removed by gently bending the plate.
  • High temperature resistance, excellent flame retardancy, high strength, and high rigidity.
  • Compatible with a wide range of materials.
  • Strong first-layer bonding (when printing certain filaments, glue is required).

For more information on filament compatibility and requirement of the glue, please refer to this list.

Notes:

  1. For Pro2 Series users, if you wish to use the PEI Build Plate for the first time, please purchase the PEI Build Plate Assembly with Soft Magnetic Laminate (Pro2 Series Only), and apply the Soft Magnetic Laminate before using the PEI Build Plate. For detailed instructions, please visit here. Once your Pro2 Series printer has the Soft Magnetic Laminate on it, and if you need to purchase more PEI Build Plate for replacement, you can purchase directly the PEI Build Plate (Pro2 Series Only) without Soft Magnetic Laminate.
  2. After applying the PEI Build Plate, please calibrate the nozzle height following the detailed instructions here.
  3. The current slicing profiles for the Pro2 Series are compatible with the prints on the PEI Build Plate.
  4. Dust, grease, and print residue can reduce the adhesion of the PEI Build Plate. Regular cleaning of the surface with mild detergent (such as alcohol) and water is recommended to maintain optimal adhesion. Avoid using any strong detergents or acetone as they may damage the PEI surface.
  5. If adhesion on the PEI Build Plate surface is reduced, the textured PEI surface can be carefully sanded with fine sandpaper (600 grit recommended) to help restore adhesion.
  6. The PEI coating may bring some textures to the bottom of the printed part. For users who require a smooth print finish, it is necessary to use Raft, which may require to use more filament, and has the risk of ripping the model when removing Raft (especially for thin-walled structures).
  7. Please avoid using a spatula to help remove the printed model, as the spatula may scratch or damage the PEI surface or even cause the coating to peel off.

Safety warnings:

  1. The edge of the printing plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands.
  2. Do not touch the printing plate with your hands during printing.

After printing, the temperature of the printing plate is extremely high. Please wait for the printing plate to drop to room temperature before taking it out.

Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]3.01.1.017.028A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 49.99
Add to cart

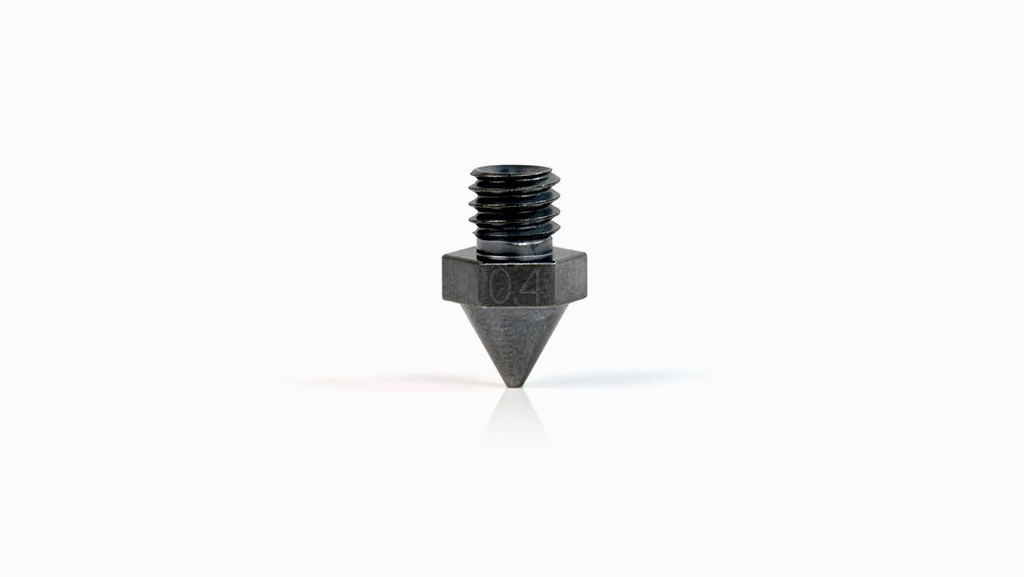

Hardened Nozzle V3 for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3Hardened Nozzle V3 for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3 - view 2
Hardened Nozzle V3 (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)
Hardened Nozzle V3 for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3Raise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Hardened Nozzle V3 (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)

$ 24.99

Product details

  • ProductHardened Nozzle V3 (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only). Listed SKUs: [S]5.02.06006A01, [S]5.02.12048A01, [S]5.02.12049A01, [S]5.02.12050A01, [S]5.02.12051A01.
  • Product familyListed in the following Raise3D product groups: Pro2 Series Accessories, Pro3 Series Accessories, Pro3 HS Series Accessories, E3 Accessories.
  • Compatibility & useVarious sizes at 0.2/0.4/0.6/0.8/1.0mm. Hardened Nozzle for Raise3D Pro3 HS Series, Pro3 Series , Pro2 Series, E2 and E3 3D Printers Only. For Pro2 Series: Here is the instruction to take out and install the hot ends. Click here. Here is the instruction to swap nozzle. Click here. For E2: Here is the instruction to replace hot end assembly. Click here. Here is the instruction to swap nozzle. Click here. Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Packaging Size (WxDxH): 130x110x5mm

Weight with Packaging: 9g


Various sizes at 0.2/0.4/0.6/0.8/1.0mm.

Hardened Nozzle for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 3D Printers Only.

For Pro2 Series:

Here is the instruction to take out and install the hot ends. Click here.

Here is the instruction to swap nozzle. Click here.

For E2:

Here is the instruction to replace hot end assembly. Click here.

Here is the instruction to swap nozzle. Click here.

Product Identification

  • Product group: Pro2 Series Accessories; Pro3 Series Accessories; Pro3 HS Series Accessories; E3 Accessories
  • Listed SKUs: [S]5.02.06006A01; [S]5.02.12048A01; [S]5.02.12049A01; [S]5.02.12050A01; [S]5.02.12051A01
  • Available options: 0.2mm; 0.4mm; 0.6mm; 0.8mm; 1.0mm

Tech specs

Technical specifications load when you open this preview.

Sale price$ 24.99
Add to cart

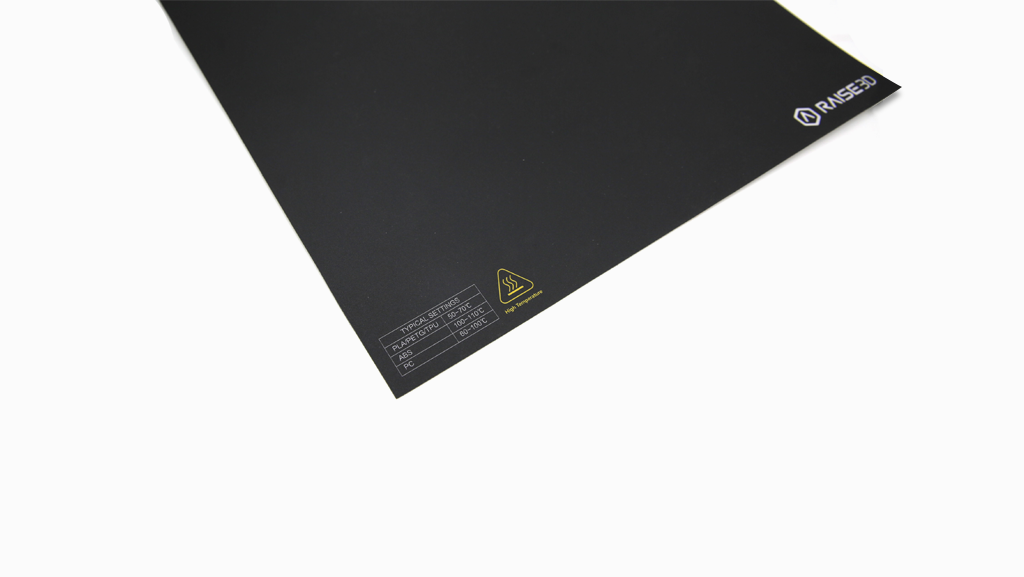

BuildTak Build Surface for Raise3D Pro2, N SeriesBuildTak Build Surface for Raise3D Pro2, N Series - view 2
BuildTak Build Surface (Pro2 and N Series)
BuildTak Build Surface for Raise3D Pro2, N SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

BuildTak Build Surface (Pro2 and N Series)

$ 59.99

Product details

  • ProductBuildTak Build Surface (Pro2 and N Series). Listed SKU: [S]5.11.00109.
  • Product familyListed in the following Raise3D product groups: N Series Accessories, Pro2 Series Accessories.
  • SpecificationsProduct description: Raise3D BuildTak Build Surface uses BuildTak as its printing surface. BuildTak is ideal as 3D printing surface for Raise3D printers, and is well received by 3D printing enthusiasts and manufacturers alike. BuildTak is sturdy and durable, so it can more effectively protect the build plate. BuildTak is heat-resistant and strong, meaning it can be reused many times, and is suitable for printing a variety of filaments. The Raise3D BuildTak Build Surface will adhere firmly to the build plate, so it will not become dislodged or fall off during the printing process. It is also very easy to remove the model from the printing plate. Raise3D BuildTak Build Surface is easy to clean, you can just wipe it with warm water or alcohol. Please avoid using solvents such as acetone for cleaning. Included: 1×Raise3D BuildTak Build Surface Product features: Easy to take out and easy to bend: After printing is completed and the temperature of the printing plate drops to room temperature, you can directly hold the handle of the printing plate to remove it. You can gently twist the printing plate to remove the model from the plate. Large models can be easily removed with the help of a scraper. Durable: The printing surface can withstand the high temperature of the nozzle and printing plate of the Raise3D printer. Easy to use and maintain: You only need to stick it onto the build plate to print. You can use warm water and alcohol to clean the printing surface. Applicable to a variety of filaments: Raise3D BuildTak Build Surface is compatible with various filaments up to 300℃: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. For the setting temperature of the printing plate for different filaments, please consult to 3D Printing Materials Guide. Safety warnings: How long a Raise3D BuildTak Build Surface lasts depends on the filaments being printed, printing settings and user skills. Please use a smooth/rounded scraper when removing filaments from the printing surface. Do not use a scraper to vigorously remove filaments, otherwise you will damage the printing surface and reduce its service life. Do not use solvents such as acetone for cleaning, so as not to damage the printing surface. You can wipe the printing surface with water or alcohol. You can consult How to Clean the Printing Surface. When installing Raise3D BuildTak Build Surface, wipe down your bare build platform making sure it is clean and free of debris. Remove the white adhesive liner and apply the BuildTak sheet to the bare build plate. Start from one edge of the build plate and work your way to the other edge, smoothing the BuildTak sheet with a card or a feeler gauge. Make sure that there are no air bubbles between the BuildTak sheet and the build plate after it is pasted. Make sure the build plate is level and calibrate the nozzle height to ensure printing accuracy.

Product description

Raise3D BuildTak Build Surface uses BuildTak as its printing surface. BuildTak is ideal as 3D printing surface for Raise3D printers, and is well received by 3D printing enthusiasts and manufacturers alike. BuildTak is sturdy and durable, so it can more effectively protect the build plate. BuildTak is heat-resistant and strong, meaning it can be reused many times, and is suitable for printing a variety of filaments. The Raise3D BuildTak Build Surface will adhere firmly to the build plate, so it will not become dislodged or fall off during the printing process. It is also very easy to remove the model from the printing plate. Raise3D BuildTak Build Surface is easy to clean, you can just wipe it with warm water or alcohol. Please avoid using solvents such as acetone for cleaning.

Included:

1×Raise3D BuildTak Build Surface

Product features:

  • Easy to take out and easy to bend: After printing is completed and the temperature of the printing plate drops to room temperature, you can directly hold the handle of the printing plate to remove it. You can gently twist the printing plate to remove the model from the plate. Large models can be easily removed with the help of a scraper.
  • Durable: The printing surface can withstand the high temperature of the nozzle and printing plate of the Raise3D printer.
  • Easy to use and maintain: You only need to stick it onto the build plate to print. You can use warm water and alcohol to clean the printing surface.
  • Applicable to a variety of filaments: Raise3D BuildTak Build Surface is compatible with various filaments up to 300℃: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. For the setting temperature of the printing plate for different filaments, please consult to 3D Printing Materials Guide.

Safety warnings:

  • How long a Raise3D BuildTak Build Surface lasts depends on the filaments being printed, printing settings and user skills. Please use a smooth/rounded scraper when removing filaments from the printing surface. Do not use a scraper to vigorously remove filaments, otherwise you will damage the printing surface and reduce its service life.
  • Do not use solvents such as acetone for cleaning, so as not to damage the printing surface. You can wipe the printing surface with water or alcohol. You can consult How to Clean the Printing Surface.
  • When installing Raise3D BuildTak Build Surface, wipe down your bare build platform making sure it is clean and free of debris. Remove the white adhesive liner and apply the BuildTak sheet to the bare build plate. Start from one edge of the build plate and work your way to the other edge, smoothing the BuildTak sheet with a card or a feeler gauge. Make sure that there are no air bubbles between the BuildTak sheet and the build plate after it is pasted.
  • Make sure the build plate is level and calibrate the nozzle height to ensure printing accuracy.

Product Identification

  • Product group: N Series Accessories; Pro2 Series Accessories
  • Listed SKU: [S]5.11.00109

Tech specs

Technical specifications load when you open this preview.

Sale price$ 59.99
Add to cart

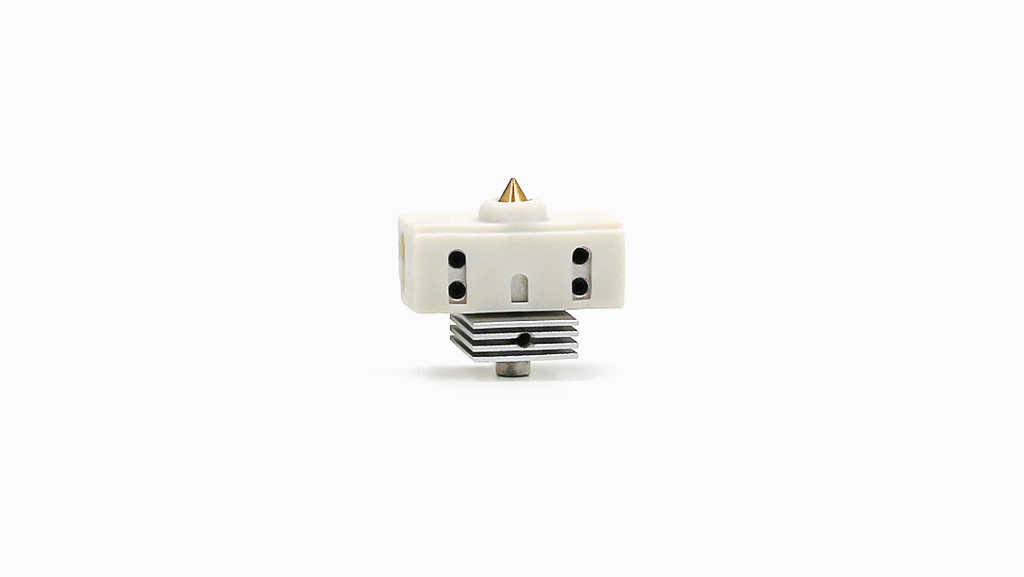

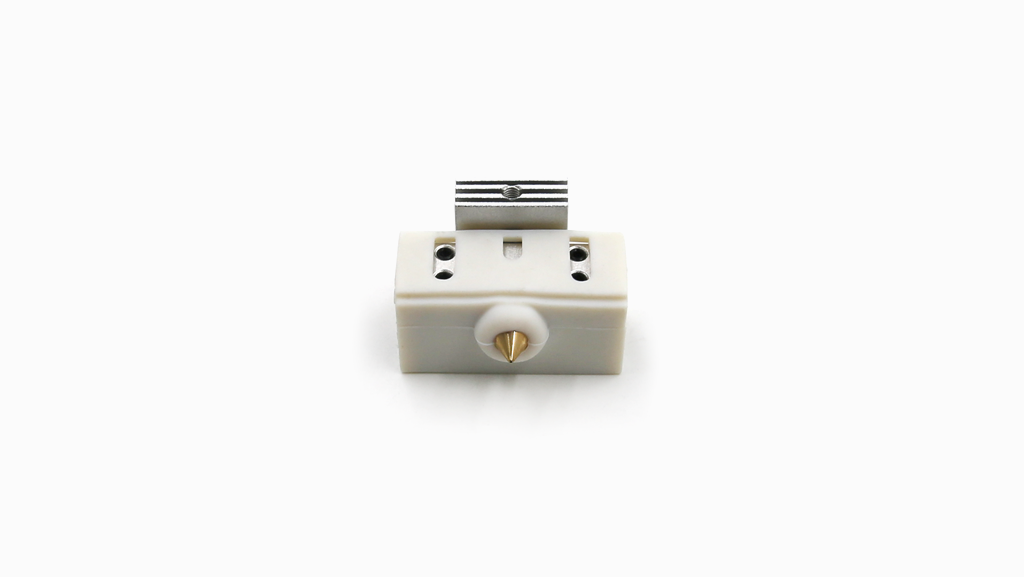

Hot End Assembly for Raise3D Pro2 SeriesHot End Assembly for Raise3D Pro2 Series - view 2
Hot End Assembly (Pro2 Series Only)
Hot End Assembly for Raise3D Pro2 SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Hot End Assembly (Pro2 Series Only)

$ 79.99

Product details

  • ProductHot End Assembly (Pro2 Series Only). Listed SKU: [S]3.01.1.013.014A01.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • Compatibility & useProduct description: Raise3D Hot End Assembly (Pro2 Series Only) is only applicable to Raise3D Pro2 series (Pro2 and Pro2 Plus) printers. Raise3D Hot End Assembly (Pro2 Series Only) includes a brass nozzle, aluminum heating block, throat tube, heat sink and silicone protective cover. It is suitable for V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle sold on Raise3D’s official website. Includes: 1x 0.4mm brass nozzle 1x 20.7mm throat tube 1x aluminum heating block 1 x heat sink Product Specifications: Voltage 24V Material Aluminum+titanium alloy+brass+silicone Installation type Insert directly into the extruder Nozzle size 0.4mm Throat tube length 20.7mm Throat tube material Titanium alloy Aluminum heating block size 33 x 15 x 10mm Working temperature The highest temperature is 330℃ Product features: Applicability and compatibility: Raise3D Hot End Assembly (Pro2 Series Only) is only compatible with Raise3D Pro2 and Pro2 Plus printer; it is easily to install, and can be inserted directly into the extruder. Anti-leakage and anti-clogging design: The nozzle of the extruder is seamlessly connected to the throat tube to prevent leakage or blockage of filaments. Heat resistance: The maximum working temperature is 330° Nozzle can be replaced: V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle sold on Raise3D’s official website. Compatible filaments: Compatible with various filaments: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. Compatible filament size: 1.75mm filament Installation tips: When disassembling and assembling the hot end, please power off the printer. The temperature of the hot end can be very high, so please wear the supplied heat-insulating gloves and use needle-nose pliers to perform any intervention. Be sure to check all wiring and power supply ratings carefully. It is recommended to operate the nozzle after turning off the power to avoid short circuit and fire. Please consult Manual-how to replace the hot end assembly for how to disassemble and assemble the hot end. Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Raise3D Hot End Assembly (Pro2 Series Only) is only applicable to Raise3D Pro2 series (Pro2 and Pro2 Plus) printers. Raise3D Hot End Assembly (Pro2 Series Only) includes a brass nozzle, aluminum heating block, throat tube, heat sink and silicone protective cover. It is suitable for V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle sold on Raise3D’s official website.



Includes:

1x 0.4mm brass nozzle

1x 20.7mm throat tube

1x aluminum heating block

1 x heat sink

Product Specifications:

Voltage 24V
Material Aluminum+titanium alloy+brass+silicone
Installation type Insert directly into the extruder
Nozzle size 0.4mm
Throat tube length 20.7mm
Throat tube material Titanium alloy
Aluminum heating block size 33 x 15 x 10mm
Working temperature The highest temperature is 330℃
Package size (WxHxD) 130 x 110 x 30mm
Package weight 30g



Product features:

  • Applicability and compatibility: Raise3D Hot End Assembly (Pro2 Series Only) is only compatible with Raise3D Pro2 and Pro2 Plus printer; it is easily to install, and can be inserted directly into the extruder.
  • Anti-leakage and anti-clogging design: The nozzle of the extruder is seamlessly connected to the throat tube to prevent leakage or blockage of filaments.
  • Heat resistance: The maximum working temperature is 330°
  • Nozzle can be replaced: V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle sold on Raise3D’s official website.

Compatible filaments:

  • Compatible with various filaments: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill.
  • Compatible filament size: 1.75mm filament

Installation tips:

  • When disassembling and assembling the hot end, please power off the printer. The temperature of the hot end can be very high, so please wear the supplied heat-insulating gloves and use needle-nose pliers to perform any intervention.
  • Be sure to check all wiring and power supply ratings carefully. It is recommended to operate the nozzle after turning off the power to avoid short circuit and fire.
  • Please consult Manual-how to replace the hot end assembly for how to disassemble and assemble the hot end.

Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]3.01.1.013.014A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 79.99
Add to cart

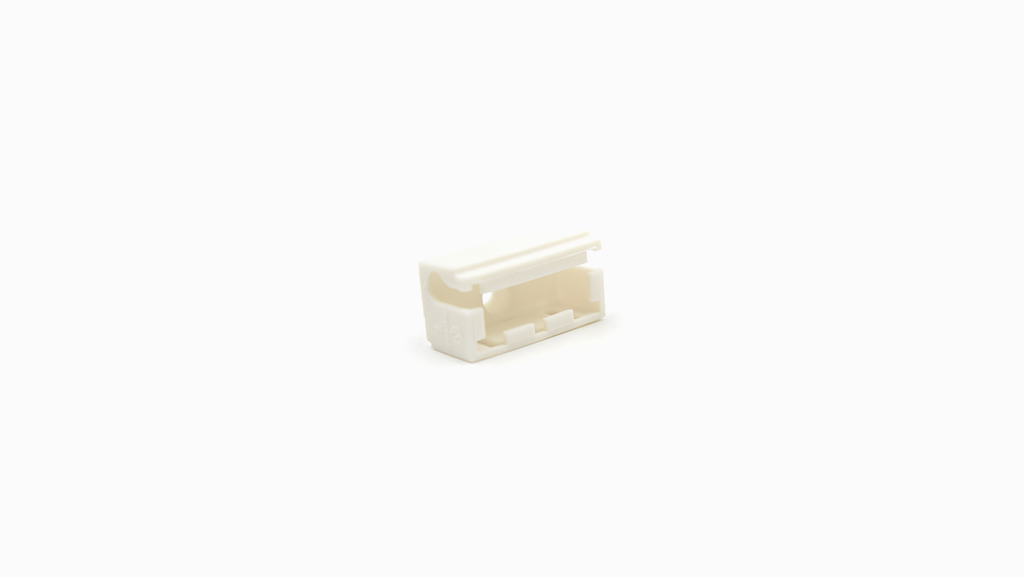

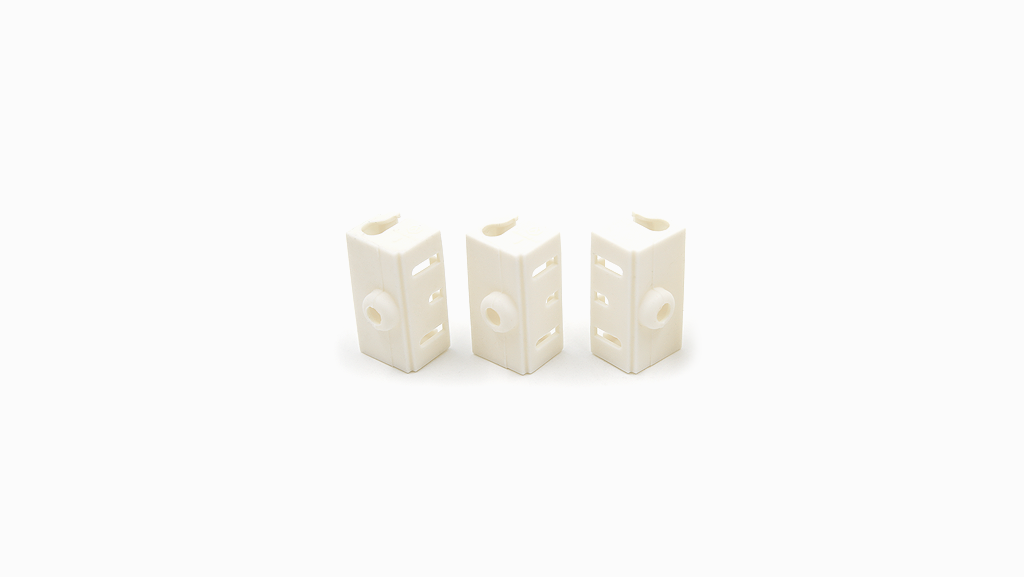

Hot End Silicone Cover for Raise3D Pro2 Series, N seriesHot End Silicone Cover for Raise3D Pro2 Series, N series - view 2
Hot End Silicone Cover (Pro2 Series and N series)
Hot End Silicone Cover for Raise3D Pro2 Series, N seriesRaise3D,INC. · N series Spare Parts

PRODUCT OVERVIEW

Hot End Silicone Cover (Pro2 Series and N series)

$ 14.99

Product details

  • ProductHot End Silicone Cover (Pro2 Series and N series). Listed SKU: [S]3.01.1.999.024A01.
  • Product familyListed in the following Raise3D product groups: N Series Accessories, Pro2 Series Accessories.
  • Compatibility & useFeatures: Silicone Cover used to isolate the Hot End 3 Silicone Covers in package Benefits: Precise temperature management and stable performance Quicker start by less heat up time to reach the set temperature Keep the Hot End clean – quick change and easy maintenance Hot End Silicone Cover Installation Instruction More Upgrade Components for N Series: Bondtech Dual Extruder Bondtech Single Extruder Webcam Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Packaging Size (WxDxH): 130x110x30mm

Weight with Packaging: 15g


Features:
  • Silicone Cover used to isolate the Hot End
  • 3 Silicone Covers in package

Benefits:

  • Precise temperature management and stable performance
  • Quicker start by less heat up time to reach the set temperature
  • Keep the Hot End clean – quick change and easy maintenance

Hot End Silicone Cover Installation Instruction

More Upgrade Components for N Series:

Bondtech Dual Extruder

Bondtech Single Extruder

Webcam

Product Identification

  • Product group: N Series Accessories; Pro2 Series Accessories
  • Listed SKU: [S]3.01.1.999.024A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart

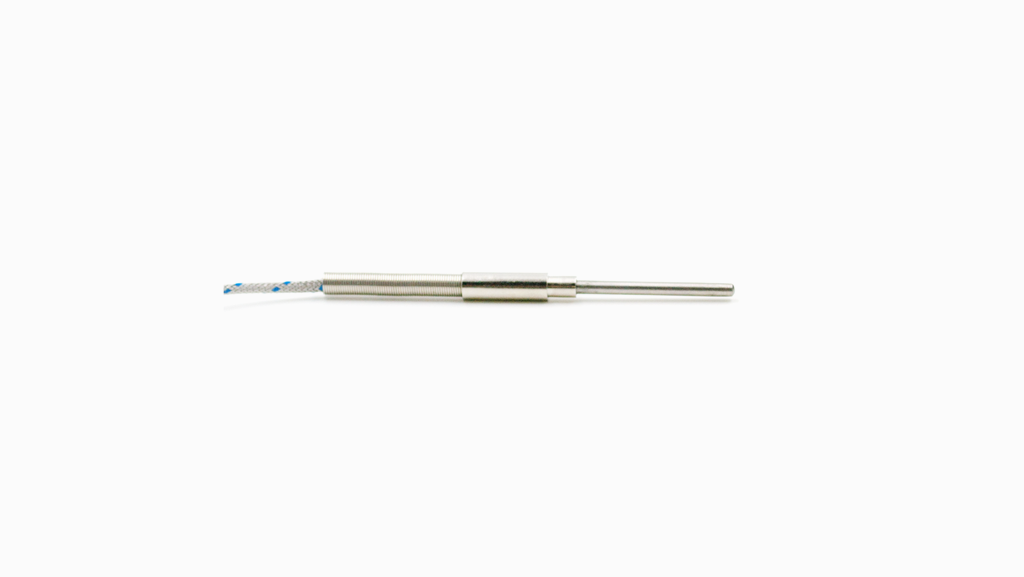

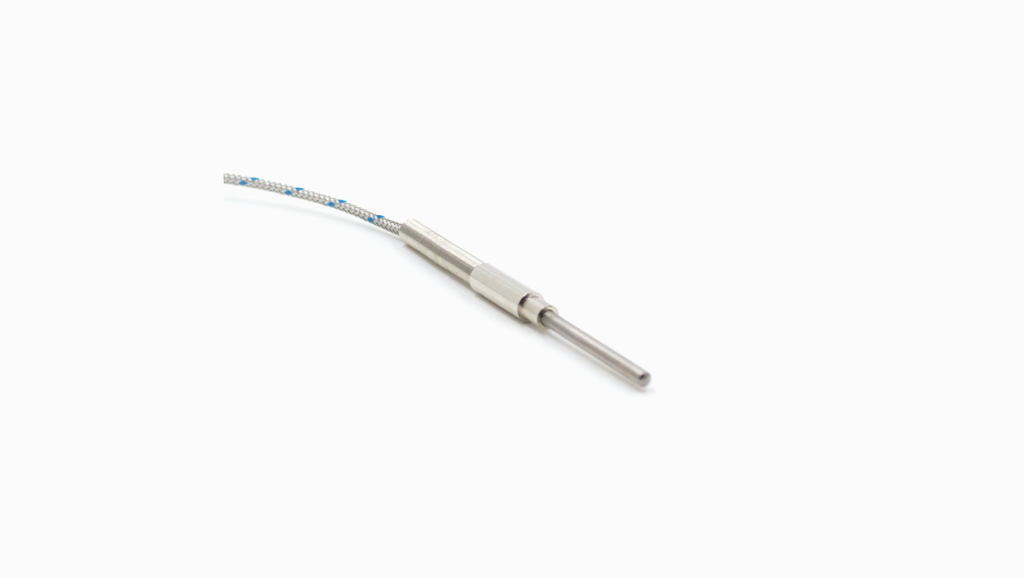

Thermocoupler V2 for Raise3D Pro2 Series, N seriesThermocoupler V2 for Raise3D Pro2 Series, N series - view 2
Thermocoupler V2 (Pro2 Series and N series)
Thermocoupler V2 for Raise3D Pro2 Series, N seriesRaise3D,INC. · N series Spare Parts

PRODUCT OVERVIEW

Thermocoupler V2 (Pro2 Series and N series)

$ 14.99

Product details

  • ProductThermocoupler V2 (Pro2 Series and N series). Listed SKU: [S]5.04.00107.
  • Product familyListed in the following Raise3D product groups: N Series Accessories, Pro2 Series Accessories.
  • Compatibility & useThermocouplers for Pro2 Series & N Series Printers Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Packaging Size (WxDxH): 200x150x10mm

Weight with Packaging: 20g

Thermocouplers for Pro2 Series & N Series 3D Printers


Product Identification

  • Product group: N Series Accessories; Pro2 Series Accessories
  • Listed SKU: [S]5.04.00107
  • Available options: V2

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart

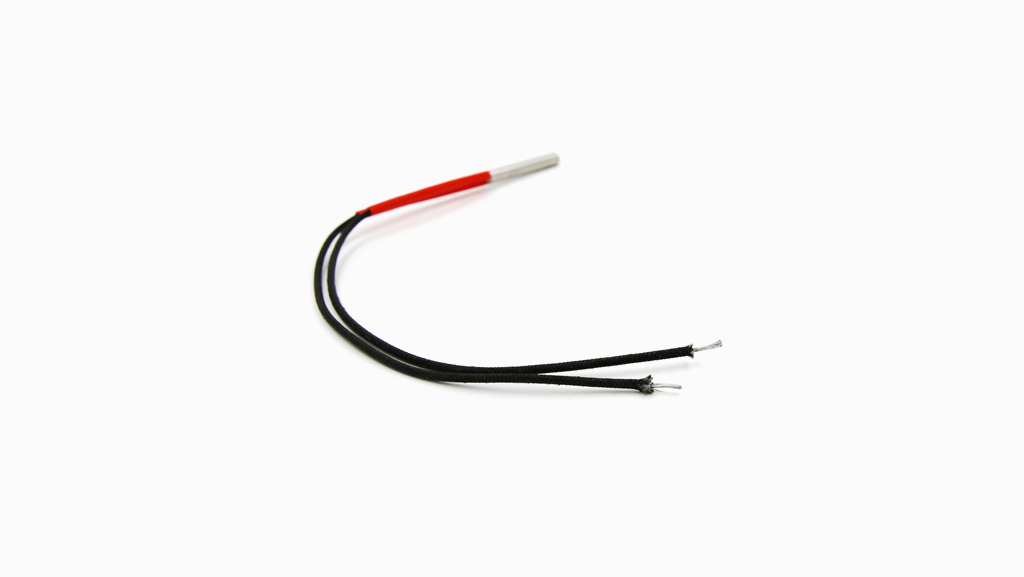

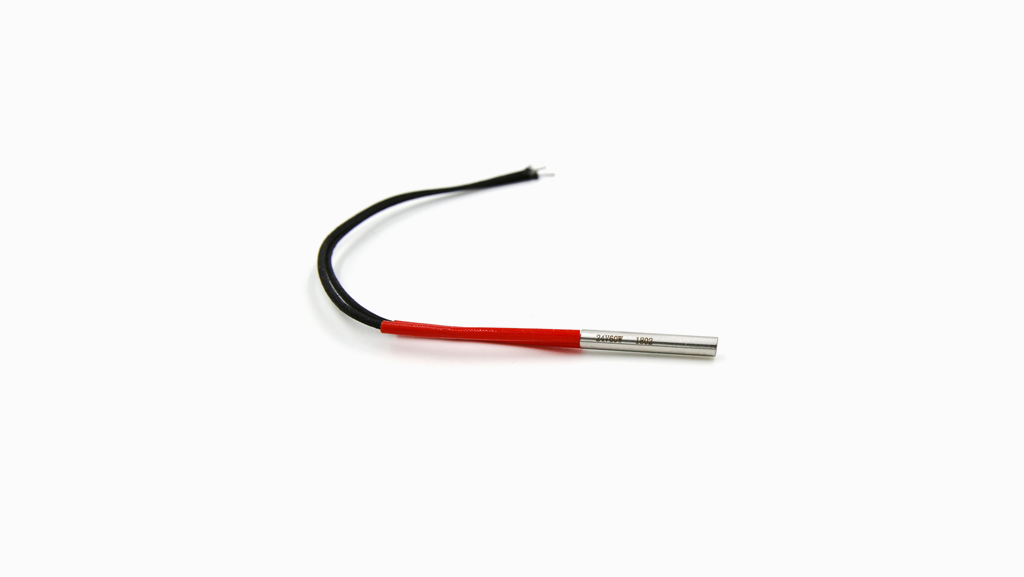

Heater Rod for Raise3D Pro2 Series, N seriesHeater Rod for Raise3D Pro2 Series, N series - view 2
Heater Rod (Pro2 Series and N series)
Heater Rod for Raise3D Pro2 Series, N seriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Heater Rod (Pro2 Series and N series)

$ 14.99

Product details

  • ProductHeater Rod (Pro2 Series and N series). Listed SKU: [S]5.09.00114.
  • Product familyListed in the following Raise3D product groups: N Series Accessories, Pro2 Series Accessories.
  • SpecificationsPackaging Size (WxDxH): 130x110x10mm Weight with Packaging: 19g For Raise3D Pro2 Series and N Series 3D Printers Installation Instruction

Product description

Packaging Size (WxDxH): 130x110x10mm

Weight with Packaging: 19g


For Raise3D Pro2 Series and N Series 3D Printers


Product Identification

  • Product group: N Series Accessories; Pro2 Series Accessories
  • Listed SKU: [S]5.09.00114

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart
Brass Nozzle V3 0.4mm for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3
Brass Nozzle V3 0.4mm (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)
Brass Nozzle V3 0.4mm for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3Raise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Brass Nozzle V3 0.4mm (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)

$ 19.99

Product details

  • ProductBrass Nozzle V3 0.4mm (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only). Listed SKU: [S]5.02.05031A01.
  • Product familyListed in the following Raise3D product groups: Pro2 Series Accessories, E2 Accessories, Pro3 Series Accessories, Pro3 HS Series Accessories, E3 Accessories.
  • Compatibility & useProduct description: The V3 Brass Nozzle has excellent thermal conductivity, which means it can transfer heat from the hot end to the nozzle and filament more efficiently than other materials. The Raise3D V3 Brass Nozzle is exquisitely designed, with high quality, sturdiness and durability, and suitable for printing with filament up to 300℃, or printing with non-abrasive filament. The diameter of Raise3D V3 Brass Nozzle is 0.4mm, as indicated on the nozzle surface. Diameter of the nozzle: 0.4mm Maximum diameter: 10mm For Raise3D Pro3 HS Series, Pro3 Series, Pro2 series, E2 and E3 3D printers. Only available at 0.4mm. Product features: Exquisite design: Raise3D V3 Brass Nozzle is exquisitely designed to effectively prevent filament leakage at the hot end and to provide a smooth, glossy and consistent printing finish. The internal grooves and protrusions are carefully conceived to reduce resistance on corners, and the chamfer design is used to reduce the loss of filament. High-quality material: Raise3D V3 Brass Nozzle is made of high-quality brass material, which does not rust or corrode easily. The brass nozzle is durable and easy to install. Smooth surface: The smooth surface allows the nozzle to connect to the hot end smoothly to avoid leakage of filament, and achieve a smooth and neat printing finish. High precision: The inner wall of the nozzle of the 3D printer extruder is smooth without burrs, and the viscosity coefficient is small. The diameter variation of the extruder nozzle is less than 0.02 mm, produces smooth extrusion when printing. Applicability and compatibility: Raise3D V3 Brass Nozzle is suitable for Raise3D Pro3 Series, Pro2 Series and E2 printers. Compatible filaments: Compatible with various filaments: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. Printing tips: The brass nozzle is suitable for printing non-abrasive filaments such as PLA or ABS that do not contain certain additives. Using filaments with additives such as glass, carbon fiber or metal particles will accelerate the wear of the brass nozzle and greatly reduce its service life. The grooves and ridges inside the nozzle are prone to damage, which can block the nozzle or increase the diameter of the nozzle orifice and make it unusable. Tips for filaments: The recommended nozzle temperature for Raise3D Premium PLA is 190℃-220℃. The recommended nozzle temperature for Raise3D Premium ABS is 245℃-265℃. The recommended nozzle temperature for Raise3D Premium PETG is 230℃-240℃. The recommended nozzle temperature for Raise3D Premium Nylon is 280℃-290℃. For more recommended nozzle temperature of Raise3D Premium official filament, please consult the Filament Guide . Safety warning: During the printing process, the temperature of the nozzle is very high, please do not touch the nozzle directly. When disassembling the nozzle and the hot end, please wear the heat-insulating gloves provided to prevent burns. After replacing the nozzle, be sure to recalibrate the distance between the nozzle and the printing plate, and also calibrate the height of the left and right nozzles to achieve a smooth printing experience. Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

The V3 Brass Nozzle has excellent thermal conductivity, which means it can transfer heat from the hot end to the nozzle and filament more efficiently than other materials. The Raise3D V3 Brass Nozzle is exquisitely designed, with high quality, sturdiness and durability, and suitable for printing with filament up to 300℃, or printing with non-abrasive filament. The diameter of Raise3D V3 Brass Nozzle is 0.4mm, as indicated on the nozzle surface.

Product specifications:

Packaging Size (WxDxH): 130 x 110 x 5mm

Weight with Packaging: 9g

Diameter of the nozzle: 0.4mm

Maximum diameter: 10mm

For Raise3D Pro3 HS Series, Pro3 Series, Pro2 series, E2 and E3 3D printers.

Only available at 0.4mm.

Product features:

  • Exquisite design: Raise3D V3 Brass Nozzle is exquisitely designed to effectively prevent filament leakage at the hot end and to provide a smooth, glossy and consistent printing finish. The internal grooves and protrusions are carefully conceived to reduce resistance on corners, and the chamfer design is used to reduce the loss of filament.
  • High-quality material: Raise3D V3 Brass Nozzle is made of high-quality brass material, which does not rust or corrode easily. The brass nozzle is durable and easy to install.
  • Smooth surface: The smooth surface allows the nozzle to connect to the hot end smoothly to avoid leakage of filament, and achieve a smooth and neat printing finish.
  • High precision: The inner wall of the nozzle of the 3D printer extruder is smooth without burrs, and the viscosity coefficient is small. The diameter variation of the extruder nozzle is less than 0.02 mm, produces smooth extrusion when printing.
  • Applicability and compatibility: Raise3D V3 Brass Nozzle is suitable for Raise3D Pro3 Series, Pro2 Series and E2 printers.

Compatible filaments:

Compatible with various filaments: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill.

Printing tips:

The brass nozzle is suitable for printing non-abrasive filaments such as PLA or ABS that do not contain certain additives. Using filaments with additives such as glass, carbon fiber or metal particles will accelerate the wear of the brass nozzle and greatly reduce its service life.

The grooves and ridges inside the nozzle are prone to damage, which can block the nozzle or increase the diameter of the nozzle orifice and make it unusable.

Tips for filaments:

  • The recommended nozzle temperature for Raise3D Premium PLA is 190℃-220℃.
  • The recommended nozzle temperature for Raise3D Premium ABS is 245℃-265℃.
  • The recommended nozzle temperature for Raise3D Premium PETG is 230℃-240℃.
  • The recommended nozzle temperature for Raise3D Premium Nylon is 280℃-290℃.
  • For more recommended nozzle temperature of Raise3D Premium official filament, please consult the Filament Guide.



Safety warning:

  • During the printing process, the temperature of the nozzle is very high, please do not touch the nozzle directly.
  • When disassembling the nozzle and the hot end, please wear the heat-insulating gloves provided to prevent burns.
  • After replacing the nozzle, be sure to recalibrate the distance between the nozzle and the printing plate, and also calibrate the height of the left and right nozzles to achieve a smooth printing experience.

Product Identification

  • Product group: Pro2 Series Accessories; E2 Accessories; Pro3 Series Accessories; Pro3 HS Series Accessories; E3 Accessories
  • Listed SKU: [S]5.02.05031A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 19.99
Add to cart

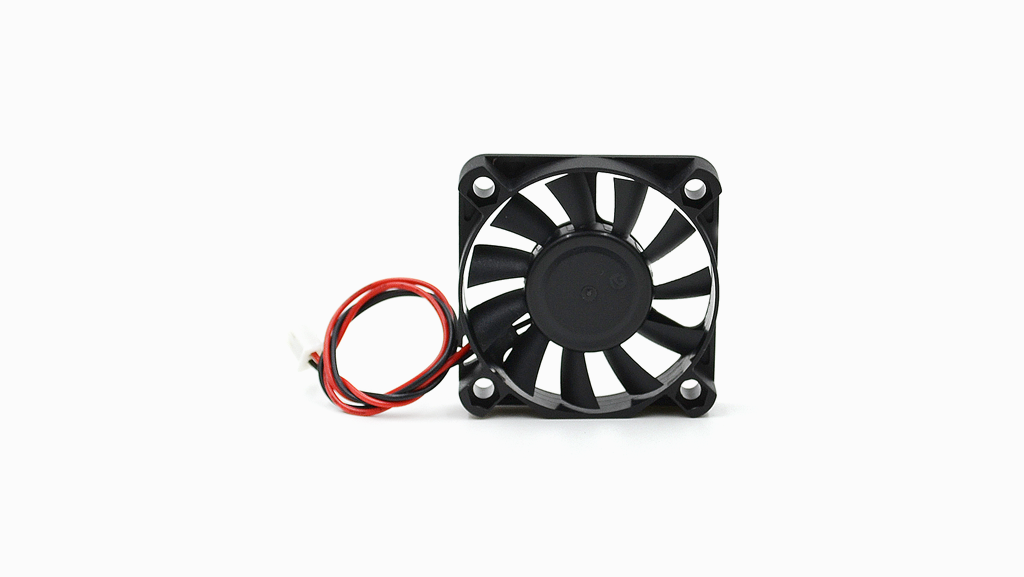

Extruder Front Cooling Fan for Raise3D Pro2 Series
Extruder Front Cooling Fan (Pro2 Series Only)
Extruder Front Cooling Fan for Raise3D Pro2 SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Extruder Front Cooling Fan (Pro2 Series Only)

$ 19.99

Product details

  • ProductExtruder Front Cooling Fan (Pro2 Series Only). Listed SKU: [S]5.17.01001A03.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • Compatibility & useFor Raise3D Pro2 Series 3D Printers Only. Installation Instruction Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Packaging Size (WxDxH): 130x110x20mm

Weight with Packaging: 31g

For Raise3D Pro2 Series 3D Printers Only.

Installation Instruction


Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]5.17.01001A03

Tech specs

Technical specifications load when you open this preview.

Sale price$ 19.99
Add to cart
Extruder Side Cooling Fan for Raise3D Pro2 Series, N Series
Extruder Side Cooling Fan (Pro2 Series and N Series)
Extruder Side Cooling Fan for Raise3D Pro2 Series, N SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Extruder Side Cooling Fan (Pro2 Series and N Series)

$ 14.99

Product details

  • ProductExtruder Side Cooling Fan (Pro2 Series and N Series). Listed SKU: [S]5.17.00007A01.
  • Product familyListed in the following Raise3D product groups: N Series Accessories, Pro2 Series Accessories.
  • Compatibility & useFor Pro2 Series & N Series Printers. Installation Instruction Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Packaging Size (WxDxH): 130x110x10mm

Weight with Packaging: 17g

For Pro2 Series & N Series Printers.

Installation Instruction

Product Identification

  • Product group: N Series Accessories; Pro2 Series Accessories
  • Listed SKU: [S]5.17.00007A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart
Steel Nozzle with WS2 Coating for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3Steel Nozzle with WS2 Coating for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3 - view 2
Steel Nozzle with WS2 Coating (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)
Steel Nozzle with WS2 Coating for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Steel Nozzle with WS2 Coating (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)

$ 49.99

Product details

  • ProductSteel Nozzle with WS2 Coating (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only). Listed SKUs: [S]3.01.1.999.060A01, [S]3.01.1.999.061A01, [S]3.01.1.999.062A01.
  • Product familyListed in the following Raise3D product groups: Pro2 Series Accessories, E2 Accessories, Pro3 Series Accessories, Pro3 HS Series Accessories, E3 Accessories.
  • Compatibility & useVarious sizes at 0.4/0.6/0.8mm, suitable for 1.75mm filaments. For Raise3D Pro3 HS Series, Pro3 Series, Pro2 series, E2 and E3 3D Printers . Product Highlights: Low friction coefficient with WS2 coating for low material accumulation Good lubrication and anti-abrasive performance under high temperature (max. 450 ℃) Optimized flow behavior for composite filament Material Specifications: Mohs Hardness: 7.8 printing temp (in theory): 450 °C Coefficient of heat conductivity: 26 W/m . k CTE: 12 (μm/m)/ °C WS2 coated nozzle is designed for composite filaments with abrasive additives and fillers, such as carbon fiber, ceramic, metal, etc. It is very suitable for fiber reinforced filament with optimized melt flow and durability. By printing with unfilled filament, we recommend a normal brass nozzle. For Pro2 Series: Here is the instruction to take out and install the hot ends. Click here. Here is the instruction to swap nozzle. Click here. For E2: Here is the instruction to replace hot end assembly. Click here. Here is the instruction to swap nozzle. Click here.

Product description

Packaging Size (WxDxH): 130x110x5mm

Weight with Packaging: 9g

Various sizes at 0.4/0.6/0.8mm, suitable for 1.75mm filaments.

For Raise3D Pro3 HS Series, Pro3 Series, Pro2 series, E2 and E3 3D Printers.

Product Highlights:

  • Low friction coefficient with WS2 coating for low material accumulation
  • Good lubrication and anti-abrasive performance under high temperature (max. 450 ℃)
  • Optimized flow behavior for composite filament

Material Specifications:

  • Mohs Hardness: 7.8
  • printing temp (in theory): 450 °C
  • Coefficient of heat conductivity: 26 W/m.k
  • CTE: 12 (μm/m)/ °C

WS2 coated nozzle is designed for composite filaments with abrasive additives and fillers, such as carbon fiber, ceramic, metal, etc. It is very suitable for fiber reinforced filament with optimized melt flow and durability. By printing with unfilled filament, we recommend a normal brass nozzle.

For Pro2 Series:

Here is the instruction to take out and install the hot ends. Click here.

Here is the instruction to swap nozzle. Click here.

For E2:

Here is the instruction to replace hot end assembly. Click here.

Here is the instruction to swap nozzle. Click here.

Product Identification

  • Product group: Pro2 Series Accessories; E2 Accessories; Pro3 Series Accessories; Pro3 HS Series Accessories; E3 Accessories
  • Listed SKUs: [S]3.01.1.999.060A01; [S]3.01.1.999.061A01; [S]3.01.1.999.062A01
  • Available options: 0.4mm; 0.6mm; 0.8mm

Tech specs

Technical specifications load when you open this preview.

Sale price$ 49.99
Add to cart
Aluminum Build Plate for Raise3D Pro2 Series
Aluminum Build Plate (Pro2 Series)
Aluminum Build Plate for Raise3D Pro2 SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Aluminum Build Plate (Pro2 Series)

$ 119.99

Product details

  • ProductAluminum Build Plate (Pro2 Series). Listed SKU: [S]3.01.1.016.004A01.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • SpecificationsProduct description: The Build Plate is made of high-quality aluminum with a more balanced thermal conductivity. The surface is scratch-resistant, very flat, and heats quickly and evenly. It is low-cost, not easy to damage, and very durable. This product already includes a TPU handle, and does not include the printing surface. Included: 1×Raise3D Aluminum Build Plate 1×TPU handle Product specifications: Size: 330mm×340mm Thickness: 2mm Packaging Size (WxDxH): 410×373×28mm Weight with Packaging: 1061g Material: aluminum Color: black Build Plate Only. Build surface NOT INCLUDED . Product features: Applicable to a variety of filaments: It is compatible with various filaments up to 300℃: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. For the setting temperature of the printing plate for different filaments, please consult the 3D Printing Materials Guide. Easy to use: After you put the build plate on the heating bed, you install it in place by turning the thumb screw. You may need to use a spatula to remove the completed printed model. High-quality materials with good thermal conductivity: It is made of high-quality aluminum, which has fast thermal conductivity and good uniformity. High flatness and large printing area: The surface is very flat and the thickness tolerance is small. The printing area is large. Safety warnings: The edge of the build plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands. Do not touch the printing plate with your hands during printing. After printing, the temperature of the Build Plate is extremely high. Please wait for it to drop to room temperature before taking it out. When removing the model from the printing plate with a scraper, please be careful not to damage the printing surface.

Product description

The Build Plate is made of high-quality aluminum with a more balanced thermal conductivity. The surface is scratch-resistant, very flat, and heats quickly and evenly. It is low-cost, not easy to damage, and very durable. This product already includes a TPU handle, and does not include the printing surface.

Included:

1×Raise3D Aluminum Build Plate

1×TPU handle



Product specifications:

Size: 330mm×340mm

Thickness: 2mm

Packaging Size (WxDxH): 410×373×28mm

Weight with Packaging: 1061g

Material: aluminum

Color: black

Build Plate Only.

Build surface NOT INCLUDED.

Product features:

  • Applicable to a variety of filaments: It is compatible with various filaments up to 300℃: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. For the setting temperature of the printing plate for different filaments, please consult the 3D Printing Materials Guide.
  • Easy to use: After you put the build plate on the heating bed, you install it in place by turning the thumb screw. You may need to use a spatula to remove the completed printed model.
  • High-quality materials with good thermal conductivity: It is made of high-quality aluminum, which has fast thermal conductivity and good uniformity.
  • High flatness and large printing area: The surface is very flat and the thickness tolerance is small. The printing area is large.

Safety warnings:

  • The edge of the build plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands.
  • Do not touch the printing plate with your hands during printing.
  • After printing, the temperature of the Build Plate is extremely high. Please wait for it to drop to room temperature before taking it out.
  • When removing the model from the printing plate with a scraper, please be careful not to damage the printing surface.

Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]3.01.1.016.004A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 119.99
Add to cart

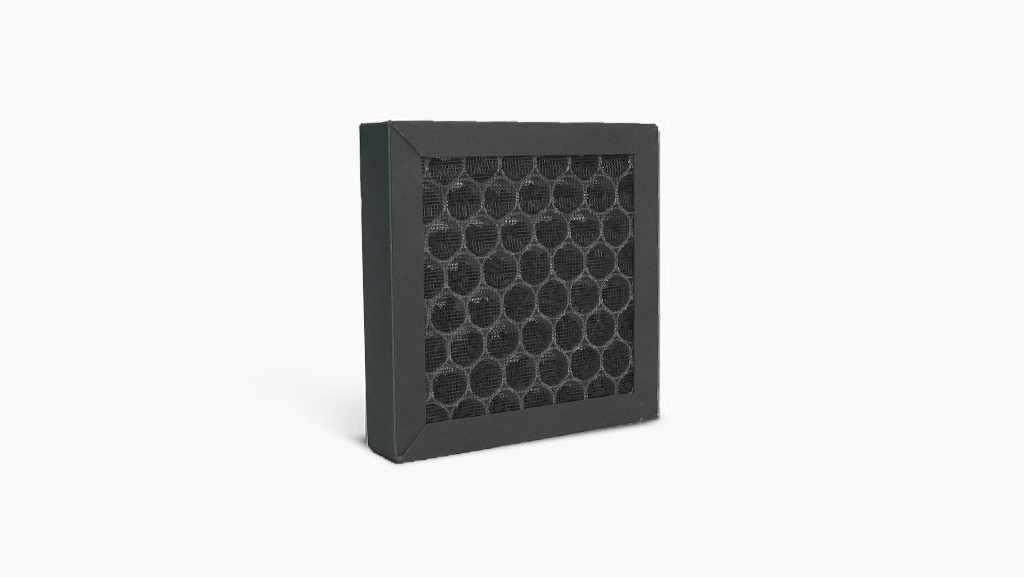

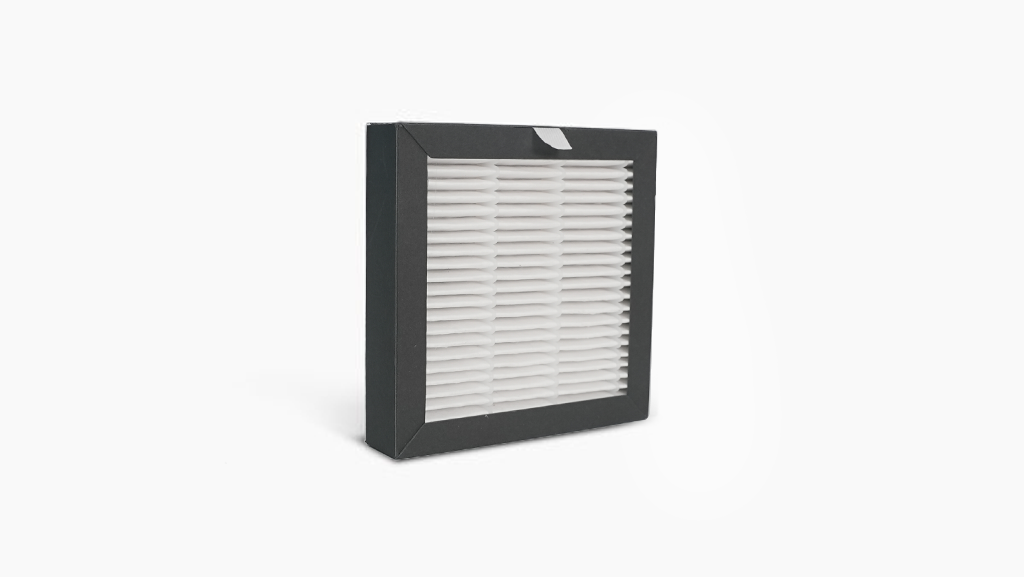

Filter for Raise3D Pro3 HS Series, Pro3 Series, Pro2 SeriesFilter for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series - view 2
Filter (Pro3 HS Series, Pro3 Series and Pro2 Series Only)
Filter for Raise3D Pro3 HS Series, Pro3 Series, Pro2 SeriesRaise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Filter (Pro3 HS Series, Pro3 Series and Pro2 Series Only)

$ 24.99

Product details

  • ProductFilter (Pro3 HS Series, Pro3 Series and Pro2 Series Only). Listed SKU: [S]5.11.14003A01.
  • Product familyListed in the following Raise3D product groups: Pro2 Series Accessories, Pro3 Series Accessories, Pro3 HS Series Accessories.
  • Compatibility & useFor Raise3D Pro3 HS Series, Pro3 Series and Pro2 Series 3D printers. Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Product specifications:

Packaging Size (WxDxH): 100×100×20mm

Weight with Packaging: 44.7g

For Raise3D Pro3 HS Series, Pro3 Series and Pro2 Series 3D printers.

Product Identification

  • Product group: Pro2 Series Accessories; Pro3 Series Accessories; Pro3 HS Series Accessories
  • Listed SKU: [S]5.11.14003A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 24.99
Add to cart

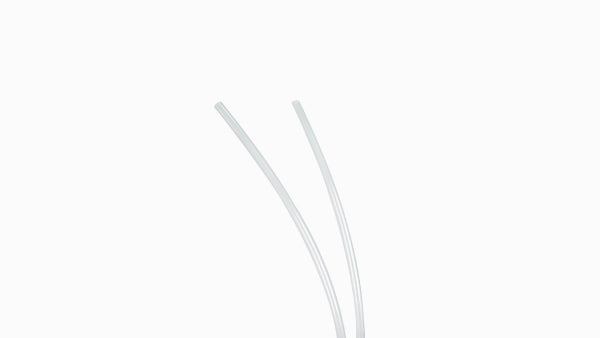

3*4 Filament Feeding Tube (2 in a Pack) for Raise3D Pro2 Series3*4 Filament Feeding Tube (2 in a Pack) for Raise3D Pro2 Series - view 2
3*4 Filament Feeding Tube (2 in a Pack) (Pro2 Series Only)
3*4 Filament Feeding Tube (2 in a Pack) for Raise3D Pro2 SeriesRaise3D,INC. · Spare Parts

PRODUCT OVERVIEW

3*4 Filament Feeding Tube (2 in a Pack) (Pro2 Series Only)

$ 14.99

Product details

  • Product3*4 Filament Feeding Tube (2 in a Pack) (Pro2 Series Only). Listed SKU: [S]3.01.1.999.066A01.
  • Product familyListed in the following Raise3D product groups: N Series Accessories, Pro2 Series Accessories.
  • SpecificationsPackaging Size (WxDxH): 180x150x20mm Weight with Packaging: 47g

Product description

Packaging Size (WxDxH): 180x150x20mm

Weight with Packaging: 47g

Product Identification

  • Product group: N Series Accessories; Pro2 Series Accessories
  • Listed SKU: [S]3.01.1.999.066A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart

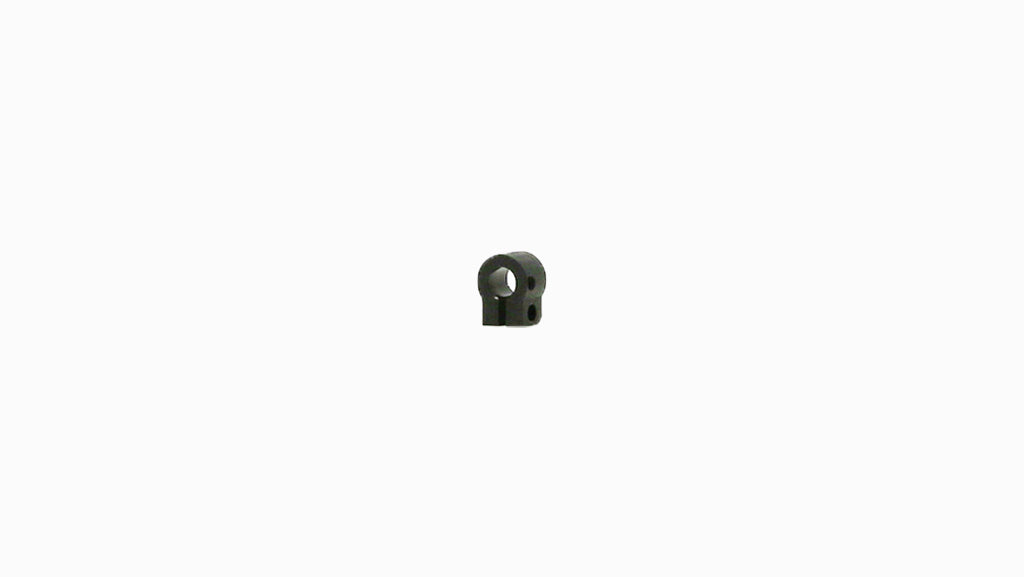

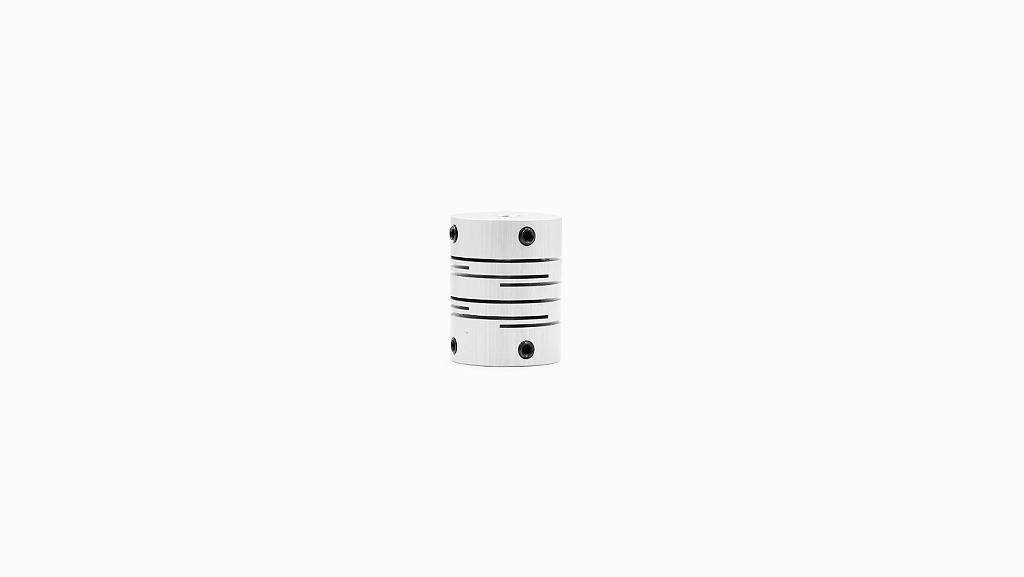

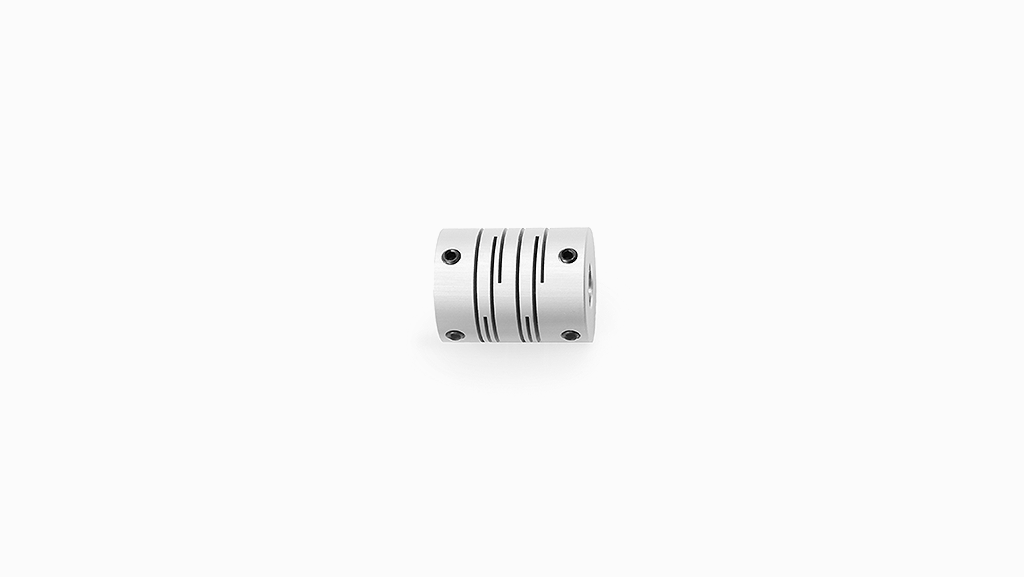

Coupler for Raise3D Pro3 Series, Pro2 Series, N seriesCoupler for Raise3D Pro3 Series, Pro2 Series, N series - view 2
Coupler (Pro3 Series, Pro2 Series and N series Only)
Coupler for Raise3D Pro3 Series, Pro2 Series, N seriesRaise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Coupler (Pro3 Series, Pro2 Series and N series Only)

$ 19.99

Product details

  • ProductCoupler (Pro3 Series, Pro2 Series and N series Only). Listed SKU: [S]5.08.01001A01.
  • Product familyListed in the following Raise3D product groups: N Series Accessories, Pro2 Series Accessories, Pro3 Series Accessories.
  • Compatibility & useX Shaft Coupler Replacement Guide Y Shaft Coupler Replacement Guide

Product description

Packaging Size (WxDxH): 130x110x25mm

Weight with Packaging: 22g

X Shaft Coupler Replacement Guide
Y Shaft Coupler Replacement Guide

Product Identification

  • Product group: N Series Accessories; Pro2 Series Accessories; Pro3 Series Accessories
  • Listed SKU: [S]5.08.01001A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 19.99
Add to cart

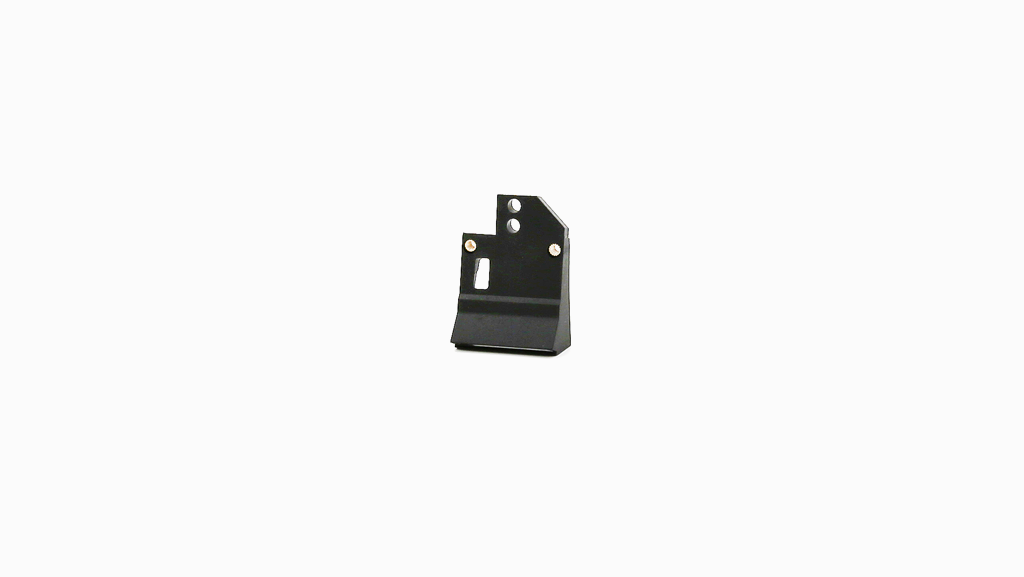

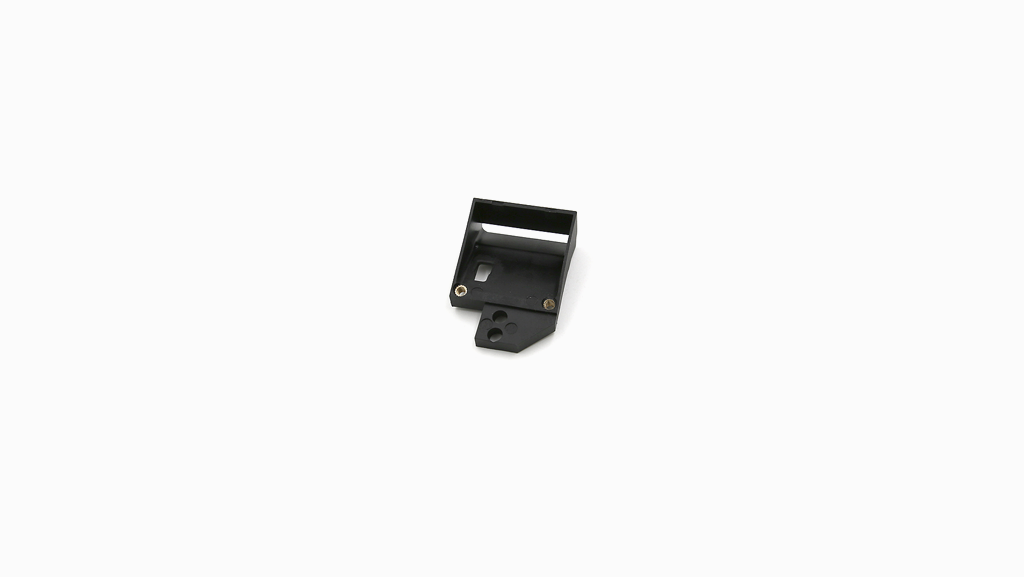

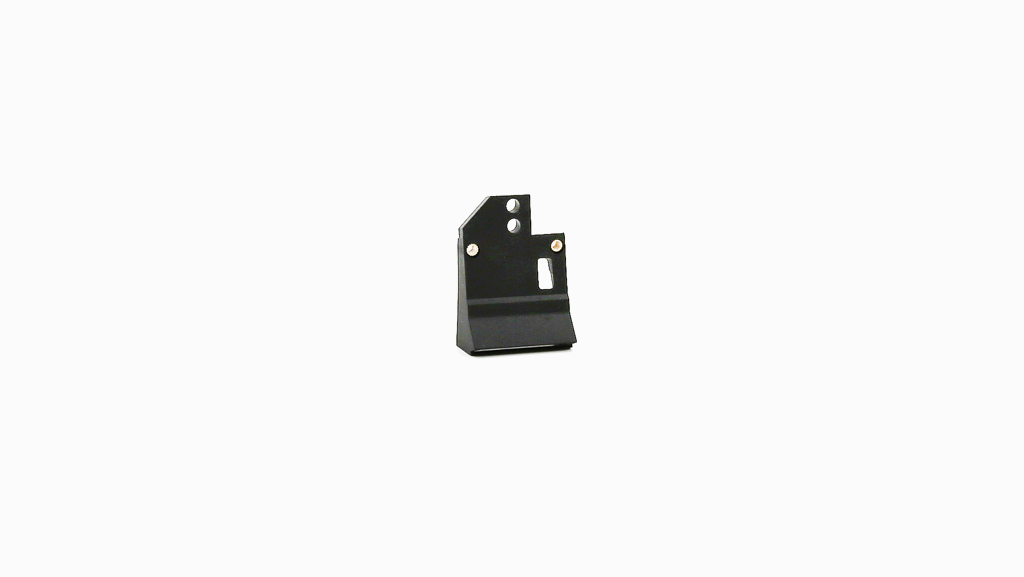

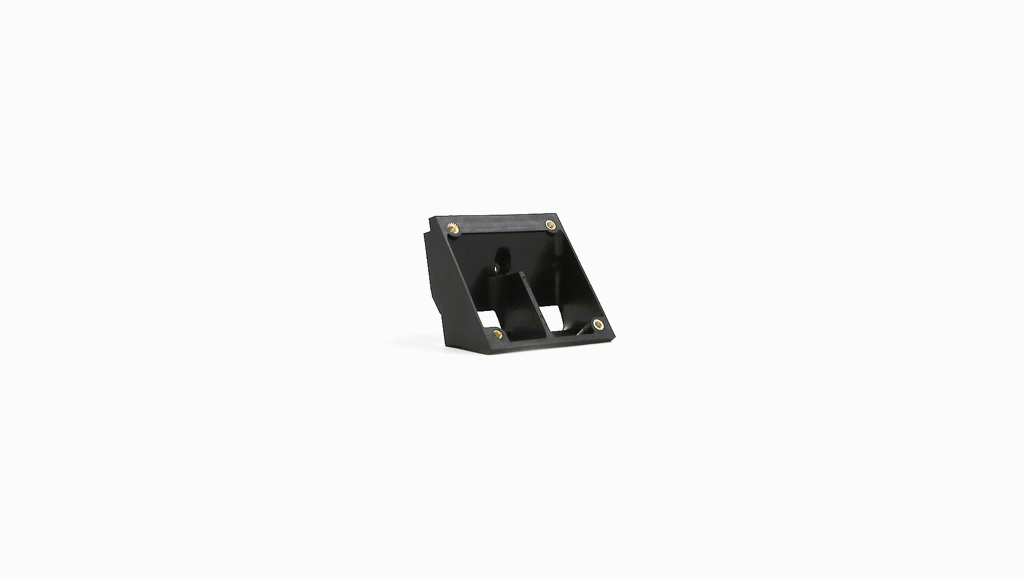

Left Model Cooling Fan Cover for Raise3D Pro2 SeriesLeft Model Cooling Fan Cover for Raise3D Pro2 Series - view 2
Left Model Cooling Fan Cover (Pro2 Series Only)
Left Model Cooling Fan Cover for Raise3D Pro2 SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Left Model Cooling Fan Cover (Pro2 Series Only)

$ 14.99

Product details

  • ProductLeft Model Cooling Fan Cover (Pro2 Series Only). Listed SKU: [S]5.01.05028A01.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • Compatibility & usePrices may vary by region. For Raise3D Pro2 Series 3D Printers Only. Installation Instruction

Product description

Packaging Size (WxDxH): 130x110x25mm

Weight with Packaging: 15g

For Raise3D Pro2 Series 3D Printers Only.

Installation Instruction


Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]5.01.05028A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart
Extruder Connection Board for Raise3D Pro2 Series

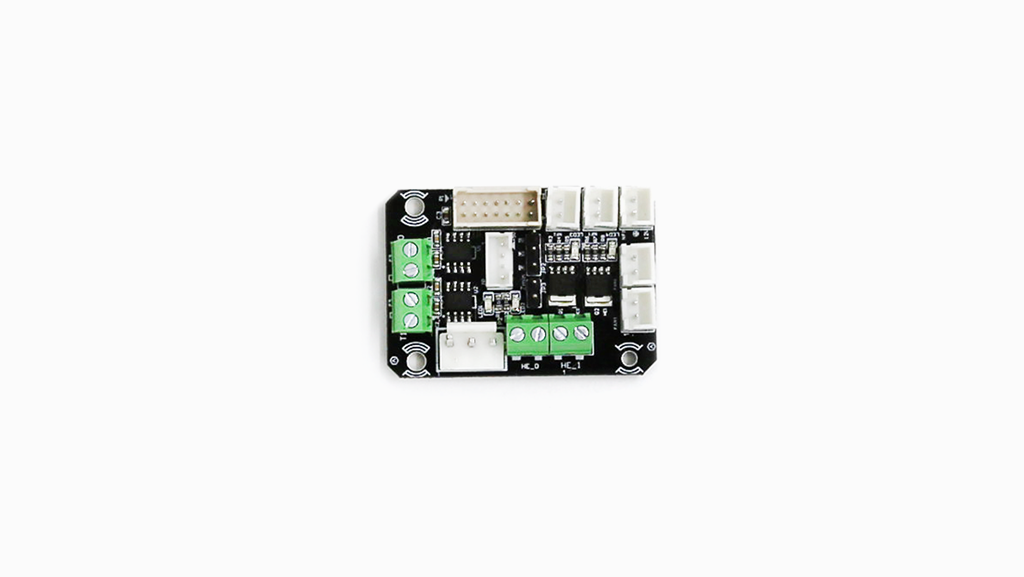

Extruder Connection Board (Pro2 Series Only)
Extruder Connection Board for Raise3D Pro2 SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Extruder Connection Board (Pro2 Series Only)

$ 59.99

Product details

  • ProductExtruder Connection Board (Pro2 Series Only). Listed SKU: [S]5.04.05008A02.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • Compatibility & useThis product is not available in your region.

Product description

Packaging Size (WxDxH): 130x110x40mm

Weight with Packaging: 21g

Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]5.04.05008A02

Tech specs

Technical specifications load when you open this preview.

Sale price$ 59.99
Add to cart

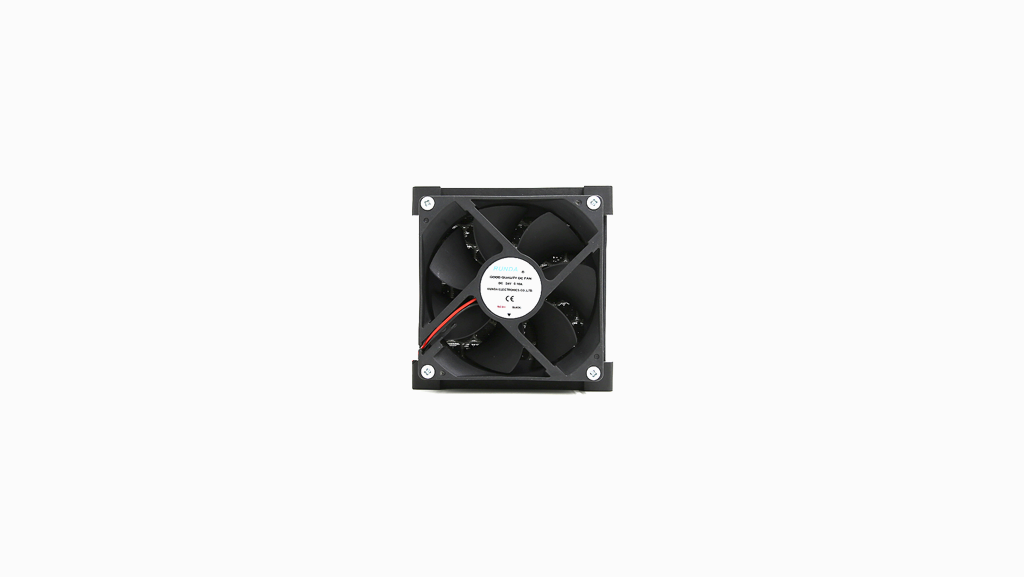

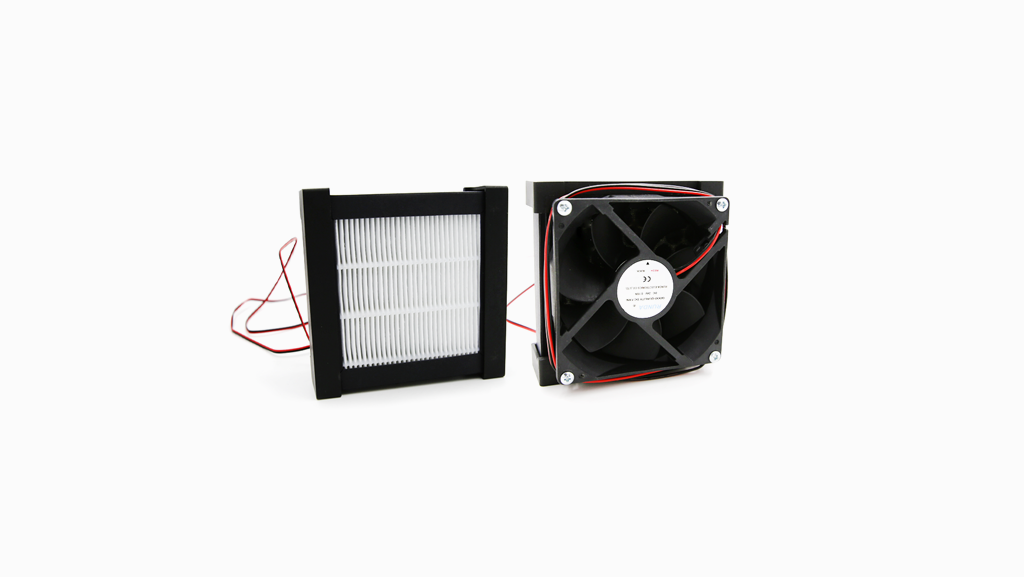

Air Filter for Raise3D Pro2 SeriesAir Filter for Raise3D Pro2 Series - view 2
Air Filter (Pro2 Series Only)
Air Filter for Raise3D Pro2 SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Air Filter (Pro2 Series Only)

$ 59.99

Product details

  • ProductAir Filter (Pro2 Series Only). Listed SKU: [S]5.11.05005A04.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • SpecificationsProduct description: The FFF 3D printer heats the filament at a high temperature, extruding the filament through the nozzle, and then deposits the filament into thin layers to form a model. When some filaments are heated by the high temperature, the filaments begin to melt and release fine particulate pollutants and volatile organic compounds into the air. Pro2 Air filter can effectively filter fine particles and harmful organic volatiles with pungent odors generated during the working process of the 3D printer. Included: 1×air filter 1×model cooling fan The fan and filter of the Pro2 Air filter need to be purchased together. It is only used on Raise3D Pro2 series (Pro2/Pro2 Plus) printers. Product specifications: Fan size: 90mm x 90mm Filter size: 105mm x105mm x 47mm Packaging Size (WxDxH): 300x250x60mm Weight with Packaging: 221g Product features: Three-stage filtration system: The Pro2 Air filter has a three-stage filtration system, which can absorb the particles and harmful volatiles produced during the printing process. The pre-filter can capture large particles generated during the printing process, such as filament debris; the carbon filter can capture a large number of odors and smoke that can affect health; the HEPA filter is designed according to specific standards to remove ultra-fine particles in the air. Easy to install and easy to replace: The Pro2 Air filter can be easily installed and replaced. You can easily replace the filter by removing the screw on the fan. Sophisticated design: The nylon grille protects the Pro2 Air filter from scratches. Maintenance tips: When the filter screen of the Pro2 Air filter turns black, it reminds you that the efficiency of the filter is reduced, and pollutants will remain in the air. The service life of the filter is 3 to 6 months depending on your printing time and the printing filaments used. Therefore, it is recommended to replace the filter every 6 months. For how to replace Pro2 Air Filter, please consult How to Change the Air Filter . Safety warning: You’d better use the Raise3D printer in a well-ventilated open space. This prevents the smoke and particles released during the printing process from being concentrated in the printer. When you replace the Pro2 Air filter, please turn the printer off. Different filaments have different characteristics, and also produce different kinds of particulates and exhaust air. For example, ABS is derived from petrochemical products, so it emits some harmful fumes when heated. In contrast, PLA is a biopolymer made from processed plant fibers, thus producing less smoke. It is recommended to choose suitable filaments according to your needs. We recommend that you can use Raise3D Premium official filaments, which have passed ISO 9001 and ISO 14001 certification.

Product description

The FFF 3D printer heats the filament at a high temperature, extruding the filament through the nozzle, and then deposits the filament into thin layers to form a model. When some filaments are heated by the high temperature, the filaments begin to melt and release fine particulate pollutants and volatile organic compounds into the air. Pro2 Air filter can effectively filter fine particles and harmful organic volatiles with pungent odors generated during the working process of the 3D printer.



Included:

1×air filter

1×model cooling fan

The fan and filter of the Pro2 Air filter need to be purchased together.

It is only used on Raise3D Pro2 series (Pro2/Pro2 Plus) printers.



Product specifications:

Fan size: 90mm x 90mm

Filter size: 105mm x105mm x 47mm

Packaging Size (WxDxH): 300x250x60mm

Weight with Packaging: 221g

Product features:

  • Three-stage filtration system: The Pro2 Air filter has a three-stage filtration system, which can absorb the particles and harmful volatiles produced during the printing process. The pre-filter can capture large particles generated during the printing process, such as filament debris; the carbon filter can capture a large number of odors and smoke that can affect health; the HEPA filter is designed according to specific standards to remove ultra-fine particles in the air.
  • Easy to install and easy to replace: The Pro2 Air filter can be easily installed and replaced. You can easily replace the filter by removing the screw on the fan.
  • Sophisticated design: The nylon grille protects the Pro2 Air filter from scratches.

Maintenance tips:

  • When the filter screen of the Pro2 Air filter turns black, it reminds you that the efficiency of the filter is reduced, and pollutants will remain in the air. The service life of the filter is 3 to 6 months depending on your printing time and the printing filaments used. Therefore, it is recommended to replace the filter every 6 months.
  • For how to replace Pro2 Air Filter, please consult How to Change the Air Filter.



Safety warning:

  • You’d better use the Raise3D printer in a well-ventilated open space. This prevents the smoke and particles released during the printing process from being concentrated in the printer.
  • When you replace the Pro2 Air filter, please turn the printer off.
  • Different filaments have different characteristics, and also produce different kinds of particulates and exhaust air. For example, ABS is derived from petrochemical products, so it emits some harmful fumes when heated. In contrast, PLA is a biopolymer made from processed plant fibers, thus producing less smoke. It is recommended to choose suitable filaments according to your needs. We recommend that you can use Raise3D Premium official filaments, which have passed ISO 9001 and ISO 14001 certification.

Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]5.11.05005A04

Tech specs

Technical specifications load when you open this preview.

Sale price$ 59.99
Add to cart

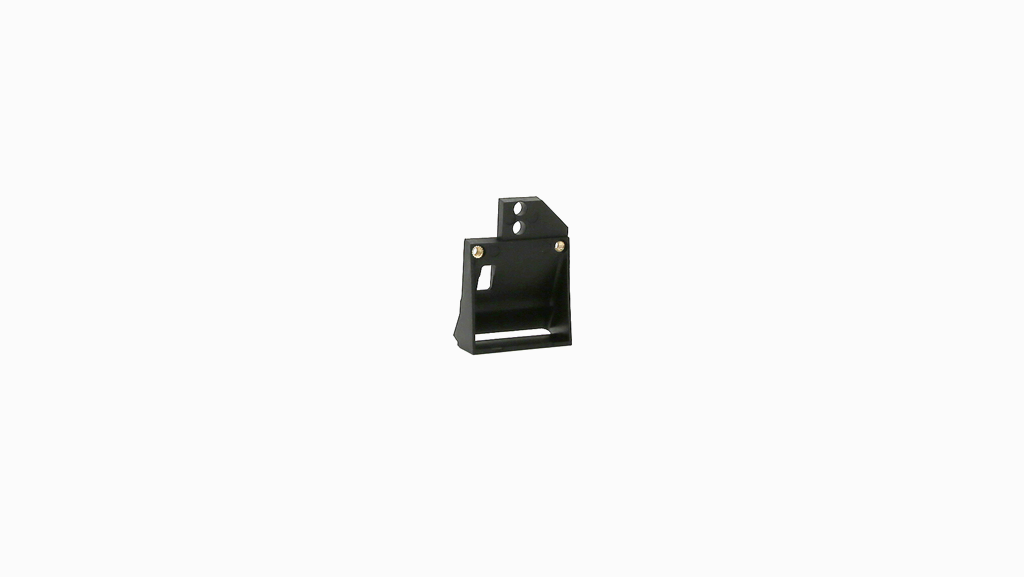

Right Model Cooling Fan Cover for Raise3D Pro2 SeriesRight Model Cooling Fan Cover for Raise3D Pro2 Series - view 2
Right Model Cooling Fan Cover (Pro2 Series Only)
Right Model Cooling Fan Cover for Raise3D Pro2 SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Right Model Cooling Fan Cover (Pro2 Series Only)

$ 14.99

Product details

  • ProductRight Model Cooling Fan Cover (Pro2 Series Only). Listed SKU: [S]5.01.05029A01.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • Compatibility & useFor Raise3D Pro2 Series 3D Printers Only. Installation Instruction Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Packaging Size (WxDxH): 130x110x25mm

Weight with Packaging: 15g

For Raise3D Pro2 Series 3D Printers Only.

Installation Instruction


Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]5.01.05029A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart

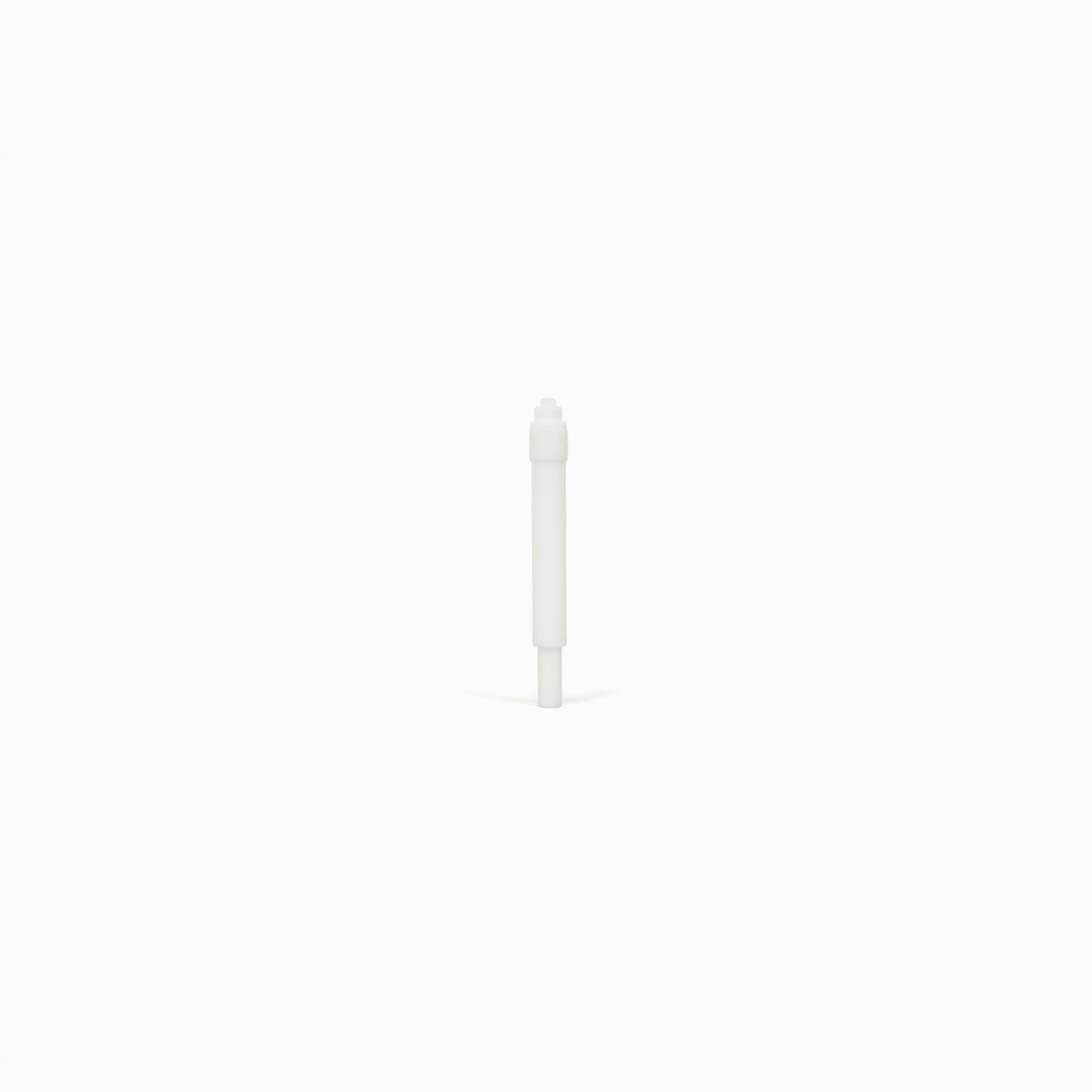

Teflon Throat Tube for Raise3D Pro2 SeriesTeflon Throat Tube for Raise3D Pro2 Series - view 2

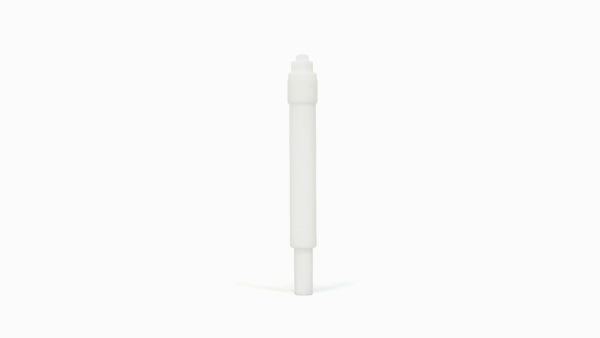

Teflon Throat Tube (Pro2 Series Only)
Teflon Throat Tube for Raise3D Pro2 SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Teflon Throat Tube (Pro2 Series Only)

$ 14.99

Product details

  • ProductTeflon Throat Tube (Pro2 Series Only). Listed SKU: [S]5.02.05061A01.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • Compatibility & useFor Raise3D Pro3 Series 3D printers. Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

For Raise3D Pro2 Series 3D printers.

Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]5.02.05061A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart

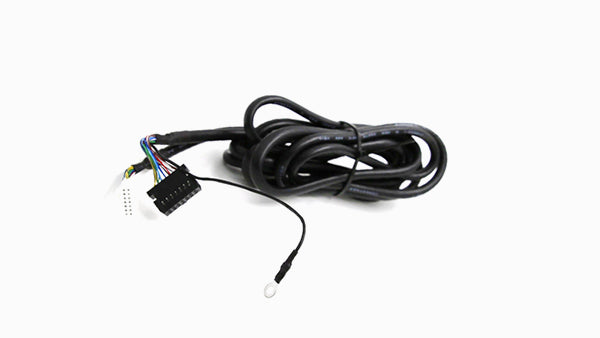

Extruder Connection Cable for Raise3D Pro2 Series
Extruder Connection Cable (Pro2 Series Only)
Extruder Connection Cable for Raise3D Pro2 SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Extruder Connection Cable (Pro2 Series Only)

$ 19.99

Product details

  • ProductExtruder Connection Cable (Pro2 Series Only). Listed SKU: [S]5.09.05008A02.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • SpecificationsPackaging Size (WxDxH): 300x150x20mm Weight with Packaging: 272g For Raise3D Pro2 series Printers. Replacement Instruction

Product description

Packaging Size (WxDxH): 300x150x20mm

Weight with Packaging: 272g

For Raise3D Pro2 series Printers.

Replacement Instruction

Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]5.09.05008A02

Tech specs

Technical specifications load when you open this preview.

Sale price$ 19.99
Add to cart

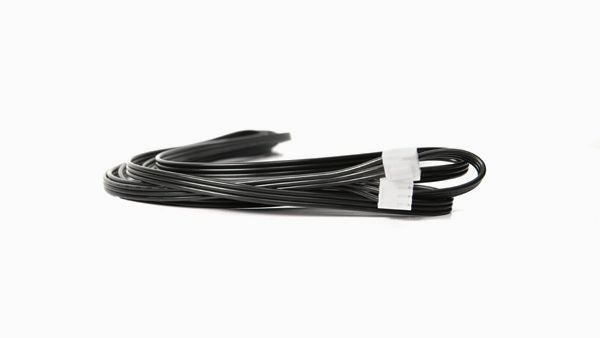

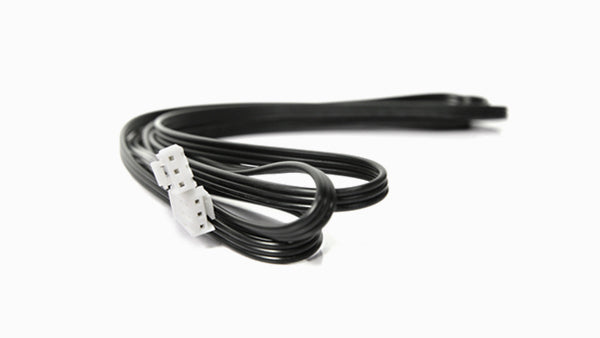

Heating Rod Power Cable for Raise3D Pro2 Series, N SeriesHeating Rod Power Cable for Raise3D Pro2 Series, N Series - view 2
Heating Rod Power Cable (Pro2 Series and N Series)
Heating Rod Power Cable for Raise3D Pro2 Series, N SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Heating Rod Power Cable (Pro2 Series and N Series)

$ 14.99

Product details

  • ProductHeating Rod Power Cable (Pro2 Series and N Series). Listed SKU: [S]5.09.00124.
  • Product familyListed in the following Raise3D product groups: N Series Accessories, Pro2 Series Accessories.
  • Compatibility & useThis product is not available in your region.

Product description

Packaging Size (WxDxH): 180x150x30mm

Weight with Packaging: 85g

Product Identification

  • Product group: N Series Accessories; Pro2 Series Accessories
  • Listed SKU: [S]5.09.00124

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart
Extruder Cooling Fan Cover for Raise3D Pro2 SeriesExtruder Cooling Fan Cover for Raise3D Pro2 Series - view 2

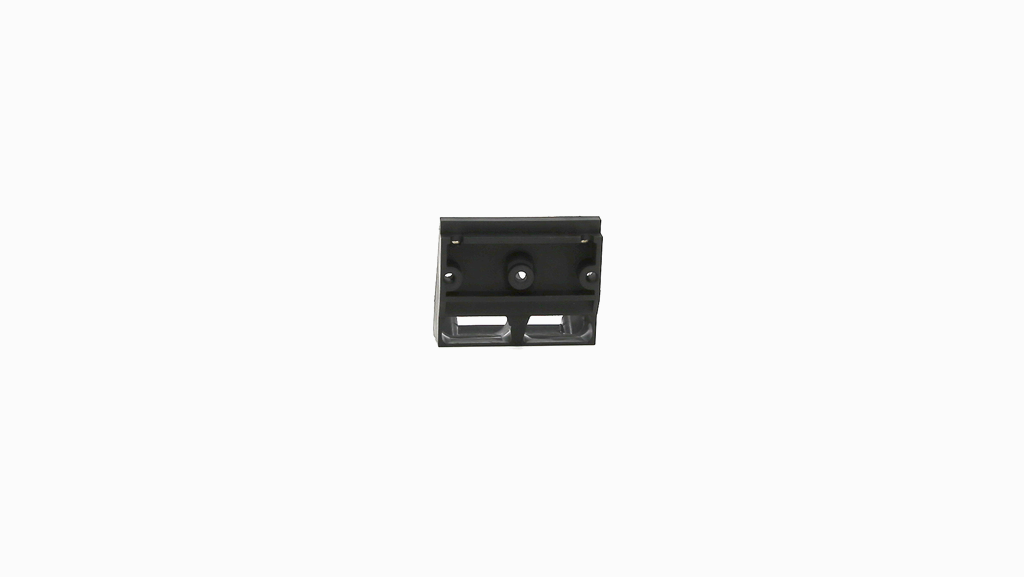

Extruder Cooling Fan Cover (Pro2 Series Only)
Extruder Cooling Fan Cover for Raise3D Pro2 SeriesRaise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Extruder Cooling Fan Cover (Pro2 Series Only)

$ 14.99

Product details

  • ProductExtruder Cooling Fan Cover (Pro2 Series Only). Listed SKU: [S]5.01.05030A01.
  • Product familyListed in the following Raise3D product group: Pro2 Series Accessories.
  • Compatibility & useFor Raise3D Pro2 Series 3D Printers Only. Installation Instruction Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Packaging Size (WxDxH): 130x110x30mm

Weight with Packaging: 19g

For Raise3D Pro2 Series 3D Printers Only.

Installation Instruction

Product Identification

  • Product group: Pro2 Series Accessories
  • Listed SKU: [S]5.01.05030A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart
3D Printer | Raise3D3D Printer | Raise3D

Pioneering Flexible Manufacturing

Raise3D is rooted in 3D printing technology, empowers variousindustries, and implements flexible manufacturing.

Our Mission

In an era where adaptability and efficiency are paramount, Raise3D stands at the forefront of the 3D printing industry, championing the mission to Facilitate Flexible Manufacturing with 3D Printing. As a leading 3D printer manufacturer, Raise3D is dedicated to empowering businesses across diverse industries with cutting-edge additive manufacturing solutions that redefine traditional production processes.

Trusted by Industry Leaders

Over 15,000 business, schools and organizations trust Raise3D printers. Google, Microsoft, Intel, Amazon, Western Digital, Tesla, Nissan, Honda, Delta Air Lines, Rockwell Collins, US Air Force, UPS, American Express, BASF, Honeywell, Thermo Fisher Scientific, CDW, Wesco, Macy’s, Twenty-First Century Fox, Universal Studio…

60,000+ Industrial Clients’ Choice

Serving 173 Countries and Regions around the World. The Raise3D trademark has been registered in 65 major global markets such as China, the United States, Russia, the European Union, the United Kingdom, Brazil, Australia, Africa, Japan, Indonesia, and Singapore.

Show More

FAQs

Can I track my order?

Yes, you can track your order. Once your shipping label is created, our website will automatically notify you with the tracking number.

For parcel shipments (via UPS or FedEx), you can track the shipment directly using the tracking number provided.

For printer orders (which are heavy and shipped via LTL Freight), tracking information will be shared once the shipment is arranged. We will provide the carrier name and PRO number (tracking number). You can track your printer by searching the carrier name and PRO number on Google or the carrier’s website.

If you leave your email address with your order and request tracking updates, we will also send a real-time tracking link to your email.

Where do you ship to?

We currently ship to all 48 contiguous U.S. states. For most U.S. addresses, you can place your order directly through our website.

For shipments to Alaska, Hawaii, or U.S. territories (such as Puerto Rico), additional shipping arrangements may be required. Please contact us before placing your order.

For shipments to Canada or Mexico, please email us or reach out to your sales representative for assistance.

What are the shipping rates?

Shipping rates for UPS and FedEx are automatically calculated by our system based on the weight and dimensions of the items in your order.

orders over $90 qualify for free shipping.

For printers and cabinets, the base shipping fee is $250 per unit when delivered to a commercial address.

Additional fees may apply based on the delivery location and unloading conditions:

  • Residential addresses, schools, universities, hospitals, or any location with limited access will incur a Limited Access Delivery Fee.
  • If the receiving location does not have a loading dock or forklift, a Liftgate Service Fee will be added to allow the shipment to be unloaded safely from the truck.

Please ensure the delivery location is appropriately equipped to avoid unexpected charges or delays.

3D Printer | Raise3D
