E3 Accessories

Filters

Sort by:

46 products

PEI Build Plate for Raise3D E Series
PEI Build Plate (E Series)
PEI Build Plate for Raise3D E SeriesRaise3D,INC. · Spare Parts

PRODUCT OVERVIEW

PEI Build Plate (E Series)

$ 44.99

Product details

  • ProductPEI Build Plate (E Series). Listed SKU: [S]3.01.1.018.062A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • Compatibility & usePrint Area Size: 365 × 240 mm Printer Compatibility: Raise3D E2, Raise3D E2CF, Raise3D E3 Included: 1 × PEI Build Plate (E Series) The PEI Build Plate (E Series) is made of high strength spring steel sheet with double-sided PEI coated powder, which is characterized by high temperature resistance, excellent flame retardancy, high strength and high rigidity. Benefits: Double-sided PEI coating, and both sides can be used for printing, with excellent durability. High Flatness and flexible design to facilitate printed model removal. Model can be easily removed by gently bending the plate. High temperature resistance, excellent flame retardancy, high strength, and high rigidity. Compatible with a wide range of materials. Strong first-layer bonding (when printing certain filaments, glue is required). For more information on filament compatibility and requirement of the glue, please refer to this list . Notes: After applying the PEI Build Plate, please calibrate the nozzle height. Please follow the detailed instructions: E2 | E2CF The current slicing profiles for the E2, E2CF and E3 are compatible with the prints on the PEI Build Plate. Dust, grease, and print residue can reduce the adhesion of the PEI Build Plate. Regular cleaning of the surface with mild detergent (such as alcohol) and water is recommended to maintain optimal adhesion. Avoid using any strong detergents or acetone as they may damage the PEI surface. If adhesion on the PEI Build Plate surface is reduced, the textured PEI surface can be carefully sanded with fine sandpaper (600 grit recommended) to help restore adhesion. The PEI coating may bring some textures to the bottom of the printed part. For users who require a smooth print finish, it is necessary to use Raft, which may require to use more filament, and has the risk of ripping the model when removing Raft (especially for thin-walled structures). Please avoid using a spatula to help remove the printed model, as the spatula may scratch or damage the PEI surface or even cause the coating to peel off. Safety warnings: The edge of the printing plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands. Do not touch the printing plate with your hands during printing. After printing, the temperature of the printing plate is extremely high. Please wait for the printing plate to drop to room temperature before taking it out.

Product description

Product specifications:

PEI Build Plate Product Size (WxDxH): 368 × 256 × 0.6 mm

Print Area Size: 365 × 240 mm

Printer Compatibility: Raise3D E2, Raise3D E2CF, Raise3D E3

Included:

1 × PEI Build Plate (E Series)

The PEI Build Plate (E Series) is made of high strength spring steel sheet with double-sided PEI coated powder, which is characterized by high temperature resistance, excellent flame retardancy, high strength and high rigidity.

Benefits:

  • Double-sided PEI coating, and both sides can be used for printing, with excellent durability.
  • High Flatness and flexible design to facilitate printed model removal. Model can be easily removed by gently bending the plate.
  • High temperature resistance, excellent flame retardancy, high strength, and high rigidity.
  • Compatible with a wide range of materials.
  • Strong first-layer bonding (when printing certain filaments, glue is required).

For more information on filament compatibility and requirement of the glue, please refer to this list.

Notes:

  1. After applying the PEI Build Plate, please calibrate the nozzle height. Please follow the detailed instructions: E2 | E2CF
  2. The current slicing profiles for the E2, E2CF and E3 are compatible with the prints on the PEI Build Plate.
  3. Dust, grease, and print residue can reduce the adhesion of the PEI Build Plate. Regular cleaning of the surface with mild detergent (such as alcohol) and water is recommended to maintain optimal adhesion. Avoid using any strong detergents or acetone as they may damage the PEI surface.
  4. If adhesion on the PEI Build Plate surface is reduced, the textured PEI surface can be carefully sanded with fine sandpaper (600 grit recommended) to help restore adhesion.
  5. The PEI coating may bring some textures to the bottom of the printed part. For users who require a smooth print finish, it is necessary to use Raft, which may require to use more filament, and has the risk of ripping the model when removing Raft (especially for thin-walled structures).
  6. Please avoid using a spatula to help remove the printed model, as the spatula may scratch or damage the PEI surface or even cause the coating to peel off.

Safety warnings:

  1. The edge of the printing plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands.
  2. Do not touch the printing plate with your hands during printing.

After printing, the temperature of the printing plate is extremely high. Please wait for the printing plate to drop to room temperature before taking it out.

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]3.01.1.018.062A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 44.99
Add to cart
Hardened Nozzle V3 for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3Hardened Nozzle V3 for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3 - view 2
Hardened Nozzle V3 (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)
Hardened Nozzle V3 for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3Raise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Hardened Nozzle V3 (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)

$ 24.99

Product details

  • ProductHardened Nozzle V3 (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only). Listed SKUs: [S]5.02.06006A01, [S]5.02.12048A01, [S]5.02.12049A01, [S]5.02.12050A01, [S]5.02.12051A01.
  • Product familyListed in the following Raise3D product groups: Pro2 Series Accessories, Pro3 Series Accessories, Pro3 HS Series Accessories, E3 Accessories.
  • Compatibility & useVarious sizes at 0.2/0.4/0.6/0.8/1.0mm. Hardened Nozzle for Raise3D Pro3 HS Series, Pro3 Series , Pro2 Series, E2 and E3 3D Printers Only. For Pro2 Series: Here is the instruction to take out and install the hot ends. Click here. Here is the instruction to swap nozzle. Click here. For E2: Here is the instruction to replace hot end assembly. Click here. Here is the instruction to swap nozzle. Click here. Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Packaging Size (WxDxH): 130x110x5mm

Weight with Packaging: 9g


Various sizes at 0.2/0.4/0.6/0.8/1.0mm.

Hardened Nozzle for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 3D Printers Only.

For Pro2 Series:

Here is the instruction to take out and install the hot ends. Click here.

Here is the instruction to swap nozzle. Click here.

For E2:

Here is the instruction to replace hot end assembly. Click here.

Here is the instruction to swap nozzle. Click here.

Product Identification

  • Product group: Pro2 Series Accessories; Pro3 Series Accessories; Pro3 HS Series Accessories; E3 Accessories
  • Listed SKUs: [S]5.02.06006A01; [S]5.02.12048A01; [S]5.02.12049A01; [S]5.02.12050A01; [S]5.02.12051A01
  • Available options: 0.2mm; 0.4mm; 0.6mm; 0.8mm; 1.0mm

Tech specs

Technical specifications load when you open this preview.

Sale price$ 24.99
Add to cart
Brass Nozzle V3 0.4mm for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3
Brass Nozzle V3 0.4mm (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)
Brass Nozzle V3 0.4mm for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3Raise3D,INC. · Pro2-Series 3D Printer Parts

PRODUCT OVERVIEW

Brass Nozzle V3 0.4mm (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)

$ 19.99

Product details

  • ProductBrass Nozzle V3 0.4mm (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only). Listed SKU: [S]5.02.05031A01.
  • Product familyListed in the following Raise3D product groups: Pro2 Series Accessories, E2 Accessories, Pro3 Series Accessories, Pro3 HS Series Accessories, E3 Accessories.
  • Compatibility & useProduct description: The V3 Brass Nozzle has excellent thermal conductivity, which means it can transfer heat from the hot end to the nozzle and filament more efficiently than other materials. The Raise3D V3 Brass Nozzle is exquisitely designed, with high quality, sturdiness and durability, and suitable for printing with filament up to 300℃, or printing with non-abrasive filament. The diameter of Raise3D V3 Brass Nozzle is 0.4mm, as indicated on the nozzle surface. Diameter of the nozzle: 0.4mm Maximum diameter: 10mm For Raise3D Pro3 HS Series, Pro3 Series, Pro2 series, E2 and E3 3D printers. Only available at 0.4mm. Product features: Exquisite design: Raise3D V3 Brass Nozzle is exquisitely designed to effectively prevent filament leakage at the hot end and to provide a smooth, glossy and consistent printing finish. The internal grooves and protrusions are carefully conceived to reduce resistance on corners, and the chamfer design is used to reduce the loss of filament. High-quality material: Raise3D V3 Brass Nozzle is made of high-quality brass material, which does not rust or corrode easily. The brass nozzle is durable and easy to install. Smooth surface: The smooth surface allows the nozzle to connect to the hot end smoothly to avoid leakage of filament, and achieve a smooth and neat printing finish. High precision: The inner wall of the nozzle of the 3D printer extruder is smooth without burrs, and the viscosity coefficient is small. The diameter variation of the extruder nozzle is less than 0.02 mm, produces smooth extrusion when printing. Applicability and compatibility: Raise3D V3 Brass Nozzle is suitable for Raise3D Pro3 Series, Pro2 Series and E2 printers. Compatible filaments: Compatible with various filaments: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. Printing tips: The brass nozzle is suitable for printing non-abrasive filaments such as PLA or ABS that do not contain certain additives. Using filaments with additives such as glass, carbon fiber or metal particles will accelerate the wear of the brass nozzle and greatly reduce its service life. The grooves and ridges inside the nozzle are prone to damage, which can block the nozzle or increase the diameter of the nozzle orifice and make it unusable. Tips for filaments: The recommended nozzle temperature for Raise3D Premium PLA is 190℃-220℃. The recommended nozzle temperature for Raise3D Premium ABS is 245℃-265℃. The recommended nozzle temperature for Raise3D Premium PETG is 230℃-240℃. The recommended nozzle temperature for Raise3D Premium Nylon is 280℃-290℃. For more recommended nozzle temperature of Raise3D Premium official filament, please consult the Filament Guide . Safety warning: During the printing process, the temperature of the nozzle is very high, please do not touch the nozzle directly. When disassembling the nozzle and the hot end, please wear the heat-insulating gloves provided to prevent burns. After replacing the nozzle, be sure to recalibrate the distance between the nozzle and the printing plate, and also calibrate the height of the left and right nozzles to achieve a smooth printing experience. Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

The V3 Brass Nozzle has excellent thermal conductivity, which means it can transfer heat from the hot end to the nozzle and filament more efficiently than other materials. The Raise3D V3 Brass Nozzle is exquisitely designed, with high quality, sturdiness and durability, and suitable for printing with filament up to 300℃, or printing with non-abrasive filament. The diameter of Raise3D V3 Brass Nozzle is 0.4mm, as indicated on the nozzle surface.

Product specifications:

Packaging Size (WxDxH): 130 x 110 x 5mm

Weight with Packaging: 9g

Diameter of the nozzle: 0.4mm

Maximum diameter: 10mm

For Raise3D Pro3 HS Series, Pro3 Series, Pro2 series, E2 and E3 3D printers.

Only available at 0.4mm.

Product features:

  • Exquisite design: Raise3D V3 Brass Nozzle is exquisitely designed to effectively prevent filament leakage at the hot end and to provide a smooth, glossy and consistent printing finish. The internal grooves and protrusions are carefully conceived to reduce resistance on corners, and the chamfer design is used to reduce the loss of filament.
  • High-quality material: Raise3D V3 Brass Nozzle is made of high-quality brass material, which does not rust or corrode easily. The brass nozzle is durable and easy to install.
  • Smooth surface: The smooth surface allows the nozzle to connect to the hot end smoothly to avoid leakage of filament, and achieve a smooth and neat printing finish.
  • High precision: The inner wall of the nozzle of the 3D printer extruder is smooth without burrs, and the viscosity coefficient is small. The diameter variation of the extruder nozzle is less than 0.02 mm, produces smooth extrusion when printing.
  • Applicability and compatibility: Raise3D V3 Brass Nozzle is suitable for Raise3D Pro3 Series, Pro2 Series and E2 printers.

Compatible filaments:

Compatible with various filaments: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill.

Printing tips:

The brass nozzle is suitable for printing non-abrasive filaments such as PLA or ABS that do not contain certain additives. Using filaments with additives such as glass, carbon fiber or metal particles will accelerate the wear of the brass nozzle and greatly reduce its service life.

The grooves and ridges inside the nozzle are prone to damage, which can block the nozzle or increase the diameter of the nozzle orifice and make it unusable.

Tips for filaments:

  • The recommended nozzle temperature for Raise3D Premium PLA is 190℃-220℃.
  • The recommended nozzle temperature for Raise3D Premium ABS is 245℃-265℃.
  • The recommended nozzle temperature for Raise3D Premium PETG is 230℃-240℃.
  • The recommended nozzle temperature for Raise3D Premium Nylon is 280℃-290℃.
  • For more recommended nozzle temperature of Raise3D Premium official filament, please consult the Filament Guide.



Safety warning:

  • During the printing process, the temperature of the nozzle is very high, please do not touch the nozzle directly.
  • When disassembling the nozzle and the hot end, please wear the heat-insulating gloves provided to prevent burns.
  • After replacing the nozzle, be sure to recalibrate the distance between the nozzle and the printing plate, and also calibrate the height of the left and right nozzles to achieve a smooth printing experience.

Product Identification

  • Product group: Pro2 Series Accessories; E2 Accessories; Pro3 Series Accessories; Pro3 HS Series Accessories; E3 Accessories
  • Listed SKU: [S]5.02.05031A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 19.99
Add to cart
Steel Nozzle with WS2 Coating for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3Steel Nozzle with WS2 Coating for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3 - view 2
Steel Nozzle with WS2 Coating (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)
Steel Nozzle with WS2 Coating for Raise3D Pro3 HS Series, Pro3 Series, Pro2 Series, E2, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Steel Nozzle with WS2 Coating (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only)

$ 49.99

Product details

  • ProductSteel Nozzle with WS2 Coating (Pro3 HS Series, Pro3 Series, Pro2 Series, E2 and E3 Only). Listed SKUs: [S]3.01.1.999.060A01, [S]3.01.1.999.061A01, [S]3.01.1.999.062A01.
  • Product familyListed in the following Raise3D product groups: Pro2 Series Accessories, E2 Accessories, Pro3 Series Accessories, Pro3 HS Series Accessories, E3 Accessories.
  • Compatibility & useVarious sizes at 0.4/0.6/0.8mm, suitable for 1.75mm filaments. For Raise3D Pro3 HS Series, Pro3 Series, Pro2 series, E2 and E3 3D Printers . Product Highlights: Low friction coefficient with WS2 coating for low material accumulation Good lubrication and anti-abrasive performance under high temperature (max. 450 ℃) Optimized flow behavior for composite filament Material Specifications: Mohs Hardness: 7.8 printing temp (in theory): 450 °C Coefficient of heat conductivity: 26 W/m . k CTE: 12 (μm/m)/ °C WS2 coated nozzle is designed for composite filaments with abrasive additives and fillers, such as carbon fiber, ceramic, metal, etc. It is very suitable for fiber reinforced filament with optimized melt flow and durability. By printing with unfilled filament, we recommend a normal brass nozzle. For Pro2 Series: Here is the instruction to take out and install the hot ends. Click here. Here is the instruction to swap nozzle. Click here. For E2: Here is the instruction to replace hot end assembly. Click here. Here is the instruction to swap nozzle. Click here.

Product description

Packaging Size (WxDxH): 130x110x5mm

Weight with Packaging: 9g

Various sizes at 0.4/0.6/0.8mm, suitable for 1.75mm filaments.

For Raise3D Pro3 HS Series, Pro3 Series, Pro2 series, E2 and E3 3D Printers.

Product Highlights:

  • Low friction coefficient with WS2 coating for low material accumulation
  • Good lubrication and anti-abrasive performance under high temperature (max. 450 ℃)
  • Optimized flow behavior for composite filament

Material Specifications:

  • Mohs Hardness: 7.8
  • printing temp (in theory): 450 °C
  • Coefficient of heat conductivity: 26 W/m.k
  • CTE: 12 (μm/m)/ °C

WS2 coated nozzle is designed for composite filaments with abrasive additives and fillers, such as carbon fiber, ceramic, metal, etc. It is very suitable for fiber reinforced filament with optimized melt flow and durability. By printing with unfilled filament, we recommend a normal brass nozzle.

For Pro2 Series:

Here is the instruction to take out and install the hot ends. Click here.

Here is the instruction to swap nozzle. Click here.

For E2:

Here is the instruction to replace hot end assembly. Click here.

Here is the instruction to swap nozzle. Click here.

Product Identification

  • Product group: Pro2 Series Accessories; E2 Accessories; Pro3 Series Accessories; Pro3 HS Series Accessories; E3 Accessories
  • Listed SKUs: [S]3.01.1.999.060A01; [S]3.01.1.999.061A01; [S]3.01.1.999.062A01
  • Available options: 0.4mm; 0.6mm; 0.8mm

Tech specs

Technical specifications load when you open this preview.

Sale price$ 49.99
Add to cart
BuildTak Build Surface for Raise3D E SeriesBuildTak Build Surface for Raise3D E Series - view 2
BuildTak Build Surface (E Series)
BuildTak Build Surface for Raise3D E SeriesRaise3D,INC. · Spare Parts

PRODUCT OVERVIEW

BuildTak Build Surface (E Series)

$ 49.99

Product details

  • ProductBuildTak Build Surface (E Series). Listed SKU: [S]5.11.07001A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • Compatibility & useNeed accessories to go with your 3d printer? Check our Top 6 Essential 3D Printer Accessories . Product description: The E2, E2CF and E3 BuildTak Build Surface uses BuildTak as its printing surface. BuildTak is ideal as 3D printing surface for Raise3D printers, and is well received by 3D printing enthusiasts and manufacturers alike. BuildTak is sturdy and durable, so it can more effectively protect the build plate. BuildTak is heat-resistant and strong, which can be reused many times, and is suitable for printing a variety of filaments. The E2, E2CF and E3 BuildTak Build Surface will adhere firmly to the build plate, so it will not become dislodged or fall off during the printing process. It is also very easy to remove the model from the printing plate. E2, E2CF and E3 BuildTak Build Surface is easy to clean, you can just wipe it with warm water or alcohol. Please avoid using solvents such as acetone for cleaning. Included: 1×E2, E2CF and E3 BuildTak Build Surface Size: 370mm×255mm Packaging Size (WxDxH): 525×355 x 80mm Weight with Packaging: 462g For Raise3D E2, E2CF and E3 printers only, not included the E2, E2CF and E3 Flexible Plate. Product features: Easy to take out and easy to bend: After printing is completed and the temperature of the printing plate drops to room temperature, you can directly hold the handle of the printing plate to remove it. You can gently twist the printing plate to remove the model from the plate. Large models can be easily removed with the help of a scraper. Durable: The printing surface can withstand the high temperature of the nozzle and printing plate of the Raise3D printer (The maximum temperature it can withstand is 110°C). Easy to use and maintain: You only need to stick it onto the build plate to print. You can use warm water and alcohol to clean the printing surface. Applicable to a variety of filaments: BuildTak Build Surface is compatible with various filaments up to 300℃: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. For the setting temperature of the printing plate for different filaments, please consult the 3D Printing Materials Guide. Safety warnings: How long the E2, E2CF and E3 BuildTak Build Surface can be used depends on the filaments to be printed, printing settings and user skills. Please use a smooth/rounded scraper when removing filaments from the printing surface. Do not use a scraper to vigorously remove filaments, otherwise you will damage the printing surface and reduce its service life. Do not use solvents such as acetone for cleaning, so as not to damage the printing surface. You can wipe the printing surface with water or alcohol. You can consult How to Clean the Printing Surface. When installing E2, E2CF and E3 BuildTak Build Surface, wipe down your bare build platform making sure it is clean and free of debris. Remove the white adhesive liner and apply the BuildTak sheet to the bare build plate. Start from one edge of the build plate and work your way to the other edge, smoothing the BuildTak sheet with a card or a feeler gauge. Make sure that there are no air bubbles between the BuildTak sheet and the build plate after it is pasted. Make sure the build plate is level and calibrate the nozzle height to ensure printing accuracy.

Product description

The E2, E2CF and E3 BuildTak Build Surface uses BuildTak as its printing surface. BuildTak is ideal as 3D printing surface for Raise3D printers, and is well received by 3D printing enthusiasts and manufacturers alike. BuildTak is sturdy and durable, so it can more effectively protect the build plate. BuildTak is heat-resistant and strong, which can be reused many times, and is suitable for printing a variety of filaments. The E2, E2CF and E3 BuildTak Build Surface will adhere firmly to the build plate, so it will not become dislodged or fall off during the printing process. It is also very easy to remove the model from the printing plate. E2, E2CF and E3 BuildTak Build Surface is easy to clean, you can just wipe it with warm water or alcohol. Please avoid using solvents such as acetone for cleaning.

Included:

1×E2, E2CF and E3 BuildTak Build Surface

Product specifications:

Size: 370mm×255mm

Packaging Size (WxDxH): 525×355 x 80mm

Weight with Packaging: 462g

For Raise3D E2, E2CF and E3 printers only, not included the E2, E2CF and E3 Flexible Plate.

Product features:

  • Easy to take out and easy to bend: After printing is completed and the temperature of the printing plate drops to room temperature, you can directly hold the handle of the printing plate to remove it. You can gently twist the printing plate to remove the model from the plate. Large models can be easily removed with the help of a scraper.
  • Durable: The printing surface can withstand the high temperature of the nozzle and printing plate of the Raise3D printer (The maximum temperature it can withstand is 110°C).
  • Easy to use and maintain: You only need to stick it onto the build plate to print. You can use warm water and alcohol to clean the printing surface.
  • Applicable to a variety of filaments: BuildTak Build Surface is compatible with various filaments up to 300℃: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. For the setting temperature of the printing plate for different filaments, please consult the 3D Printing Materials Guide.

Safety warnings:

  • How long the E2, E2CF and E3 BuildTak Build Surface can be used depends on the filaments to be printed, printing settings and user skills. Please use a smooth/rounded scraper when removing filaments from the printing surface. Do not use a scraper to vigorously remove filaments, otherwise you will damage the printing surface and reduce its service life.
  • Do not use solvents such as acetone for cleaning, so as not to damage the printing surface. You can wipe the printing surface with water or alcohol. You can consult How to Clean the Printing Surface.
  • When installing E2, E2CF and E3 BuildTak Build Surface, wipe down your bare build platform making sure it is clean and free of debris. Remove the white adhesive liner and apply the BuildTak sheet to the bare build plate. Start from one edge of the build plate and work your way to the other edge, smoothing the BuildTak sheet with a card or a feeler gauge. Make sure that there are no air bubbles between the BuildTak sheet and the build plate after it is pasted.
  • Make sure the build plate is level and calibrate the nozzle height to ensure printing accuracy.

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.11.07001A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 49.99
Add to cart
Left Hot End Assembly for Raise3D E2, E3Left Hot End Assembly for Raise3D E2, E3 - view 2
Left Hot End Assembly (E2 and E3 Only)
Left Hot End Assembly for Raise3D E2, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Left Hot End Assembly (E2 and E3 Only)

$ 79.99

Product details

  • ProductLeft Hot End Assembly (E2 and E3 Only). Listed SKU: [S]3.01.1.018.023A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E3 Accessories.
  • Compatibility & useProduct description: Raise3D E2 and E3 Left Hot End Assembly includes a brass nozzle, aluminum heating block, throat tube (built-in PTFE tube), thermocouple, heating rod and the terminal. The black wire is the thermocouple and the white wire is the heating rod. The voltage is 24V, and the power is 25-30W. Raise3D E2 and E3 Left Hot End Assembly is suitable for V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle, sold on Raise3D’s official website. The heating block has been marked for the left extruder. Includes: 1x aluminum heating block 1x heating rod (voltage is 24V, power is 25-40W) 1x 0.4MM brass nozzle 1x 17.7 mm throat tube 1x thermocouple Product Specifications: Voltage 24V Material Aluminum + Titanium Alloy + Brass Installation type Terminal Nozzle size 0.4mm Throat tube length 17.7mm Throat tube material Titanium alloy Aluminum heating block size 18 x 12 x 12mm Working temperature 300℃ max. Product features: Applicability and compatibility: Raise3D E2 and E3 Left Hot End Assembly is compatible with the Raise3D E2 and E3 printer; the thermocouple interface is a terminal, which is easy to install, and can be directly inserted into the extruder controller board. Anti-leakage and anti-clogging design: The nozzle of the extruder is seamlessly connected to the throat tube to prevent leakage or blockage of filaments. Heat resistance: The maximum working temperature is 300°C. Nozzle can be replaced: V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle, sold on Raise3D’s official website. Compatible filaments: Compatible with various filaments: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. Compatible filament diameter: 1.75mm filament Installation tips: When disassembling and assembling the hot end, please power off the printer. The temperature of the hot end can be very high, so please wear the supplied heat-insulating gloves and use needle-nose pliers to perform any intervention. Be sure to check all wiring and power supply ratings carefully. It is recommended to perform any intervention on the nozzle only after turning off the power to avoid the possibility of a short circuit and fire. Please consult the Manual-how to replace the hot end assembly for how to disassemble and assemble the hot end.

Product description

Raise3D E2 and E3 Left Hot End Assembly includes a brass nozzle, aluminum heating block, throat tube (built-in PTFE tube), thermocouple, heating rod and the terminal. The black wire is the thermocouple and the white wire is the heating rod. The voltage is 24V, and the power is 25-30W. Raise3D E2 and E3 Left Hot End Assembly is suitable for V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle, sold on Raise3D’s official website. The heating block has been marked for the left extruder.

Includes:

1x aluminum heating block

1x heating rod (voltage is 24V, power is 25-40W)

1x 0.4MM brass nozzle

1x 17.7 mm throat tube

1x thermocouple

Product Specifications:

Voltage 24V
Material Aluminum + Titanium Alloy + Brass
Installation type Terminal
Nozzle size 0.4mm
Throat tube length 17.7mm
Throat tube material Titanium alloy
Aluminum heating block size 18 x 12 x 12mm
Working temperature 300℃ max.
Package size (WxHxD) 130x110x20mm
Package weight 20g

Product features:

  • Applicability and compatibility: Raise3D E2 and E3 Left Hot End Assembly is compatible with the Raise3D E2 and E3 printer; the thermocouple interface is a terminal, which is easy to install, and can be directly inserted into the extruder controller board.
  • Anti-leakage and anti-clogging design: The nozzle of the extruder is seamlessly connected to the throat tube to prevent leakage or blockage of filaments.
  • Heat resistance: The maximum working temperature is 300°C.
  • Nozzle can be replaced: V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle, sold on Raise3D’s official website.

Compatible filaments:

  • Compatible with various filaments: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill.
  • Compatible filament diameter: 1.75mm filament

Installation tips:

  • When disassembling and assembling the hot end, please power off the printer. The temperature of the hot end can be very high, so please wear the supplied heat-insulating gloves and use needle-nose pliers to perform any intervention.
  • Be sure to check all wiring and power supply ratings carefully. It is recommended to perform any intervention on the nozzle only after turning off the power to avoid the possibility of a short circuit and fire.
  • Please consult the Manual-how to replace the hot end assembly for how to disassemble and assemble the hot end.

Product Identification

  • Product group: E2 Accessories; E3 Accessories
  • Listed SKU: [S]3.01.1.018.023A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 79.99
Add to cart
Flexible Plate with BuildTak for Raise3D E Series
Flexible Plate with BuildTak (E Series)
Flexible Plate with BuildTak for Raise3D E SeriesRaise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Flexible Plate with BuildTak (E Series)

$ 89.99

Product details

  • ProductFlexible Plate with BuildTak (E Series). Listed SKU: [S]3.01.1.999.045A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • Compatibility & useProduct description: The Raise3D E2, E2CF and E3 Flexible Plate with BuildTak is an ideal build plate for 3D printing. The E2, E2CF and E3 Flexible Plate is made of highly elastic stainless steel with fast heat conduction, elevated hardness, easy bending, and magnetic attraction. It can conduct heat quickly during printing. After printing, you can gently bend the printing plate to remove the model. BuildTak is widely recognized in the 3D printing industry as an adhesive build surface that provides the perfect amount of texture to grip the first layer of most filaments. At the same time, after printing, the filaments attached to the build surface can be easily removed. There is a special adhesive behind the BuildTak Printing Surface, which can stick tightly to the build plate and will become dislodged during the printing process. Included: 1×highly elastic stainless-steel plate 1×BuildTak printing surface 1×TPU handle Product features: Excellent adhesion: E2, E2CF and E3 Flexible Plate has strong adhesion. The E2, E2CF and E3 Flexible Plate is tightly attached to the heating bed by magnetic attraction, and there will be no displacement during the printing process, which helps avoid printing failure. Easy to take out and easy to bend: After printing is completed and the temperature of the printing plate drops to room temperature, you can directly hold the handle of the printing plate to remove it. You can gently twist the printing plate to remove the model from the plate. Large models can be easily removed with the help of a scraper. Durable: The printing surface can withstand the high temperature of the nozzle and printing plate of the Raise3D printer (The maximum temperature that the E2 Flexible Plate can withstand is 110°C). Strictly controlled printing plate thickness tolerance: E2, E2CF and E3 Flexible Plate is very flat, and any variation in the thickness of the printing plate is small. Compatible filaments: Raise3D E2 Flexible Plate is compatible with various filaments up to 300℃: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. For the setting temperature of the printing plate for different filaments, please consult the 3D Printing Materials Guide. Tips for filaments: TPU-Please use a lower printing plate temperature (25℃-60℃) for printing. PETG-PETG may bond excessively to the printing plate. It is recommended to closely control the distance between the nozzle and the printing plate. PC-In order to obtain better adhesion of the printing plate, it is recommended to closely control the distance between the nozzle and the printing plate and place the model in the center of the build area. Nylon – PVP solid glue must be used to coat the printing plate to make the model adhere properly to the printing plate. Safety warnings: The edge of the printing plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands. Do not touch the printing plate with your hands during printing. After printing, the temperature of the printing plate is extremely high. Please wait for the printing plate to drop to room temperature before taking it out. When removing the model from the printing plate with a scraper, please be careful not to scratch your hands with the scraper. Please make sure to keep the scraper parallel to the printing plate when removing printed objects, so as not to damage the BuildTak printing surface.

Product description

The Raise3D E2, E2CF and E3 Flexible Plate with BuildTak is an ideal build plate for 3D printing. The E2, E2CF and E3 Flexible Plate is made of highly elastic stainless steel with fast heat conduction, elevated hardness, easy bending, and magnetic attraction. It can conduct heat quickly during printing. After printing, you can gently bend the printing plate to remove the model. BuildTak is widely recognized in the 3D printing industry as an adhesive build surface that provides the perfect amount of texture to grip the first layer of most filaments. At the same time, after printing, the filaments attached to the build surface can be easily removed. There is a special adhesive behind the BuildTak Printing Surface, which can stick tightly to the build plate and will become dislodged during the printing process.

Included:

1×highly elastic stainless-steel plate

1×BuildTak printing surface

1×TPU handle

Product specifications:

Product size: 368×254×5.2mm

Packing size (WxDxH): 370×254×5.5mm

Package weight: 440g

Product features:

  • Excellent adhesion: E2, E2CF and E3 Flexible Plate has strong adhesion. The E2, E2CF and E3 Flexible Plate is tightly attached to the heating bed by magnetic attraction, and there will be no displacement during the printing process, which helps avoid printing failure.
  • Easy to take out and easy to bend: After printing is completed and the temperature of the printing plate drops to room temperature, you can directly hold the handle of the printing plate to remove it. You can gently twist the printing plate to remove the model from the plate. Large models can be easily removed with the help of a scraper.
  • Durable: The printing surface can withstand the high temperature of the nozzle and printing plate of the Raise3D printer (The maximum temperature that the E2 Flexible Plate can withstand is 110°C).
  • Strictly controlled printing plate thickness tolerance: E2, E2CF and E3 Flexible Plate is very flat, and any variation in the thickness of the printing plate is small.

Compatible filaments:

Raise3D E2 Flexible Plate is compatible with various filaments up to 300℃: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill.

For the setting temperature of the printing plate for different filaments, please consult the 3D Printing Materials Guide.

Tips for filaments:

  • TPU-Please use a lower printing plate temperature (25℃-60℃) for printing.
  • PETG-PETG may bond excessively to the printing plate. It is recommended to closely control the distance between the nozzle and the printing plate.
  • PC-In order to obtain better adhesion of the printing plate, it is recommended to closely control the distance between the nozzle and the printing plate and place the model in the center of the build area.
  • Nylon – PVP solid glue must be used to coat the printing plate to make the model adhere properly to the printing plate.

Safety warnings:

  • The edge of the printing plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands.
  • Do not touch the printing plate with your hands during printing.
  • After printing, the temperature of the printing plate is extremely high. Please wait for the printing plate to drop to room temperature before taking it out.
  • When removing the model from the printing plate with a scraper, please be careful not to scratch your hands with the scraper. Please make sure to keep the scraper parallel to the printing plate when removing printed objects, so as not to damage the BuildTak printing surface.

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]3.01.1.999.045A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 89.99
Add to cart
Right Hot End Assembly for Raise3D E2, E3Right Hot End Assembly for Raise3D E2, E3 - view 2
Right Hot End Assembly (E2 and E3 Only)
Right Hot End Assembly for Raise3D E2, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Right Hot End Assembly (E2 and E3 Only)

$ 79.99

Product details

  • ProductRight Hot End Assembly (E2 and E3 Only). Listed SKU: [S]3.01.1.018.024A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E3 Accessories.
  • Compatibility & useProduct description: Raise3D E2 and E3 Right Hot End Assembly includes a brass nozzle, aluminum heating block, throat tube (built-in PTFE tube), thermocouple, heating rod and the terminal. The black wire is the thermocouple and the white wire is the heating rod. The voltage is 24V, and the power is 25-30W. Raise3D E2 and E3 Right Hot End Assembly is suitable for V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle sold on Raise3D official website. The heating block has been marked for the right extruder. Includes: 1x aluminum heating block 1x heating rod (voltage is 24V, power is 25-40W) 1x 0.4MM brass nozzle 1x 17.7 mm throat tube 1x thermocouple Product Specifications: Voltage 24V Material Aluminum + Titanium Alloy + Brass Installation type Terminal Nozzle size 0.4mm Throat tube length 17.7mm Throat tube material Titanium alloy Aluminum heating block size 18 x 12 x 12mm Working temperature 300℃ max. Product features: Applicability and compatibility: Raise3D E2 and E3 Right Hot End Assembly is compatible with the Raise3D E2 and E3 printer; the thermocouple interface is terminal, which is easy to install, and can be directly inserted into the extruder controller board. Anti-leakage and anti-clogging design: The nozzle of the extruder is seamlessly connected to the throat tube to prevent leakage or blockage of filaments. Heat resistance: The maximum working temperature is 300°C. Nozzle can be replaced: V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle sold on Raise3D’s official website. Compatible filaments: Compatible with various filaments: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. Compatible filament diameter: 1.75mm filament Installation tips: When disassembling and assembling the hot end, please power off the printer. The temperature of the hot end can be very high, so please wear the supplied heat-insulating gloves and use needle-nose pliers to to perform any intervention. Be sure to check all wiring and power supply ratings carefully. It is recommended to perform any intervention on the nozzle only after turning off the power to avoid the possibility of a short circuit and fire. Please consult the Manual-how to replace the hot end assembly for how to disassemble and assemble the hot end.

Product description

Raise3D E2 and E3 Right Hot End Assembly includes a brass nozzle, aluminum heating block, throat tube (built-in PTFE tube), thermocouple, heating rod and the terminal. The black wire is the thermocouple and the white wire is the heating rod. The voltage is 24V, and the power is 25-30W. Raise3D E2 and E3 Right Hot End Assembly is suitable for V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle sold on Raise3D official website. The heating block has been marked for the right extruder.

Includes:

1x aluminum heating block

1x heating rod (voltage is 24V, power is 25-40W)

1x 0.4MM brass nozzle

1x 17.7 mm throat tube

1x thermocouple



Product Specifications:

Voltage 24V
Material Aluminum + Titanium Alloy + Brass
Installation type Terminal
Nozzle size 0.4mm
Throat tube length 17.7mm
Throat tube material Titanium alloy
Aluminum heating block size 18 x 12 x 12mm
Working temperature 300℃ max.
Package size (WxHxD) 130x110x20mm
Package weight 20g

Product features:

  • Applicability and compatibility: Raise3D E2 and E3 Right Hot End Assembly is compatible with the Raise3D E2 and E3 printer; the thermocouple interface is terminal, which is easy to install, and can be directly inserted into the extruder controller board.
  • Anti-leakage and anti-clogging design: The nozzle of the extruder is seamlessly connected to the throat tube to prevent leakage or blockage of filaments.
  • Heat resistance: The maximum working temperature is 300°C.
  • Nozzle can be replaced: V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle sold on Raise3D’s official website.

Compatible filaments:

  • Compatible with various filaments: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill.
  • Compatible filament diameter: 1.75mm filament

Installation tips:

  • When disassembling and assembling the hot end, please power off the printer. The temperature of the hot end can be very high, so please wear the supplied heat-insulating gloves and use needle-nose pliers to to perform any intervention.
  • Be sure to check all wiring and power supply ratings carefully. It is recommended to perform any intervention on the nozzle only after turning off the power to avoid the possibility of a short circuit and fire.
  • Please consult the Manual-how to replace the hot end assembly for how to disassemble and assemble the hot end.

Product Identification

  • Product group: E2 Accessories; E3 Accessories
  • Listed SKU: [S]3.01.1.018.024A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 79.99
Add to cart
Auto-leveling System Assembly for Raise3D E2, E2CF, E3Auto-leveling System Assembly for Raise3D E2, E2CF, E3 - view 2
Auto-leveling System Assembly (E2, E2CF and E3 Only)
Auto-leveling System Assembly for Raise3D E2, E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Auto-leveling System Assembly (E2, E2CF and E3 Only)

$ 59.99

Product details

  • ProductAuto-leveling System Assembly (E2, E2CF and E3 Only). Listed SKU: [S]3.01.1.999.044A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • Compatibility & useThis product is not available in your region.

Product description

Packaging Size (WxDxH): 130x110x30mm

Weight with Packaging: 45g

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]3.01.1.999.044A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 59.99
Add to cart
Thermocouple for Raise3D E2, E2CF, E3Thermocouple for Raise3D E2, E2CF, E3 - view 2
Thermocouple (E2, E2CF and E3 Only)
Thermocouple for Raise3D E2, E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Thermocouple (E2, E2CF and E3 Only)

$ 14.99

Product details

  • ProductThermocouple (E2, E2CF and E3 Only). Listed SKU: [S]5.04.07007A02.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • SpecificationsPackaging Size (WxDxH): 130x110x5mm Weight with Packaging: 7g

Product description

Packaging Size (WxDxH): 130x110x5mm

Weight with Packaging: 7g

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.04.07007A02

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart
Extruder Connection Cable for Raise3D E2, E2CF, E3
Extruder Connection Cable (E2, E2CF and E3 Only)
Extruder Connection Cable for Raise3D E2, E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Extruder Connection Cable (E2, E2CF and E3 Only)

$ 19.99

Product details

  • ProductExtruder Connection Cable (E2, E2CF and E3 Only). Listed SKU: [S]5.09.07018A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • SpecificationsPackaging Size (WxDxH): 130x110x20mm Weight with Packaging: 32g

Product description

Packaging Size (WxDxH): 130x110x20mm

Weight with Packaging: 32g

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.09.07018A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 19.99
Add to cart
Air Filter for Raise3D E2, E2CF, E3Air Filter for Raise3D E2, E2CF, E3 - view 2
Air Filter (E2, E2CF and E3 Only)
Air Filter for Raise3D E2, E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Air Filter (E2, E2CF and E3 Only)

$ 39.99

Product details

  • ProductAir Filter (E2, E2CF and E3 Only). Listed SKU: [S]5.11.07003A02.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • SpecificationsProduct description: The FFF 3D printer heats the filament at a high temperature, extruding the filament through the nozzle, and then deposits the filament into thin layers to form a model. When some filaments are heated by the high temperature, the filaments begin to melt and release fine particulate pollutants and volatile organic compounds into the air. E2, E2CF and E3 Air filter can effectively filter fine particles and harmful organic volatiles with pungent odors generated during the working process of the 3D printer. Product specifications: Size: 80 x 80 x 20mm Packaging Size (WxDxH): 180 x 150 x 40mm Weight with Packaging: 40g Product features: Three-stage filtration system: The E2, E2CF and E3 Air filter has a three-stage filtration system, which can, to a great extent, absorb the particles and harmful volatiles produced during the printing process. The pre-filter can capture large particles generated during the printing process, such as filament debris; the carbon filter can capture many odors and smoke that can affect health; the HEPA filter is designed according to specific standards to remove ultra-fine particles from the air. Easy to install and easy to replace: The E2, E2CF and E3 Air filter can be easily installed and replaced. You just need to remove the old E2, E2CF and E3 Air filter from the printer without tools, and then insert the new E2, E2CF and E3 Air filter into the filter card slot. Sophisticated design: The nylon grille protects the E2, E2CF and E3 Air filter from scratches. The handle on the E2, E2CF and E3 Air filter makes it easy for you to remove the filter. Maintenance tips: When the filter screen of the E2, E2CF and E3 Air filter turns black, it reminds you that the efficiency of the filter will be reduced, and pollutants will remain in the air. The service life of the filter is 3 to 6 months depending on your printing time and the printing filaments used. Therefore, it is recommended to replace the filter every 6 months. For how to replace E2, E2CF and E3 Air Filter, please consult How to Replace the Air Filter . Safety warning: It is always recommendable to use the Raise3D printer in a well-ventilated open space. This prevents the smoke and particles released during the printing process from being concentrated in the printer. When you replace the E2, E2CF and E3 Air filter, please turn the printer off. Different filaments have different characteristics, and also produce different kinds of particulates and exhaust air. For example, ABS is derived from petrochemical products, so it emits some harmful fumes when heated. In contrast, PLA is a biopolymer made from processed plant fibers, thus producing less smoke. It is recommended to choose suitable filaments according to your needs. We recommend that you can use Raise3D Premium official filaments, which have passed ISO 9001 and ISO 14001 certification.

Product description

The FFF 3D printer heats the filament at a high temperature, extruding the filament through the nozzle, and then deposits the filament into thin layers to form a model. When some filaments are heated by the high temperature, the filaments begin to melt and release fine particulate pollutants and volatile organic compounds into the air. E2, E2CF and E3 Air filter can effectively filter fine particles and harmful organic volatiles with pungent odors generated during the working process of the 3D printer.



Product specifications:

Size: 80 x 80 x 20mm

Packaging Size (WxDxH): 180 x 150 x 40mm

Weight with Packaging: 40g

Product features:

  • Three-stage filtration system: The E2, E2CF and E3 Air filter has a three-stage filtration system, which can, to a great extent, absorb the particles and harmful volatiles produced during the printing process. The pre-filter can capture large particles generated during the printing process, such as filament debris; the carbon filter can capture many odors and smoke that can affect health; the HEPA filter is designed according to specific standards to remove ultra-fine particles from the air.
  • Easy to install and easy to replace: The E2, E2CF and E3 Air filter can be easily installed and replaced. You just need to remove the old E2, E2CF and E3 Air filter from the printer without tools, and then insert the new E2, E2CF and E3 Air filter into the filter card slot.
  • Sophisticated design: The nylon grille protects the E2, E2CF and E3 Air filter from scratches. The handle on the E2, E2CF and E3 Air filter makes it easy for you to remove the filter.

Maintenance tips:

  • When the filter screen of the E2, E2CF and E3 Air filter turns black, it reminds you that the efficiency of the filter will be reduced, and pollutants will remain in the air. The service life of the filter is 3 to 6 months depending on your printing time and the printing filaments used. Therefore, it is recommended to replace the filter every 6 months.
  • For how to replace E2, E2CF and E3 Air Filter, please consult How to Replace the Air Filter.



Safety warning:

  • It is always recommendable to use the Raise3D printer in a well-ventilated open space. This prevents the smoke and particles released during the printing process from being concentrated in the printer.
  • When you replace the E2, E2CF and E3 Air filter, please turn the printer off.
  • Different filaments have different characteristics, and also produce different kinds of particulates and exhaust air. For example, ABS is derived from petrochemical products, so it emits some harmful fumes when heated. In contrast, PLA is a biopolymer made from processed plant fibers, thus producing less smoke. It is recommended to choose suitable filaments according to your needs. We recommend that you can use Raise3D Premium official filaments, which have passed ISO 9001 and ISO 14001 certification.

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.11.07003A02

Tech specs

Technical specifications load when you open this preview.

Sale price$ 39.99
Add to cart
Flexible Steel Build Plate for Raise3D E SeriesFlexible Steel Build Plate for Raise3D E Series - view 2
Flexible Steel Build Plate (E Series)
Flexible Steel Build Plate for Raise3D E SeriesRaise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Flexible Steel Build Plate (E Series)

$ 34.99

Product details

  • ProductFlexible Steel Build Plate (E Series). Listed SKU: [S]5.02.07064A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • Compatibility & useProduct description: Using high-quality stainless steel, E2, E2CF and E3 Flexible Plate has good flatness and durability, and has a strong magnetic force, which can be well absorbed on the heating bed. The flexible plate is flexible and easy to bend. You can directly remove the model by bending it. It can be bent up to 5000 times and is not easy to damage. Included: 1×E2, E2CF and E3 Flexible Steel Build Plate Material: stainless steel Color: silver Product features: Durable: The printing plate can be reused at least 5000 times, and can withstand the high temperature of the nozzle and printing plate of the Raise3D printer (The maximum temperature that the E2, E2CF and E3 Flexible Plate can withstand is 110°C). Strictly controlled printing plate thickness tolerance: E2, E2CF and E3 Flexible Plate is very flat, and any variation in the thickness of the printing plate is small. Applicable to a variety of filaments: Raise3D Printing Build Surface is compatible with various filaments up to 300℃: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. For the setting temperature of the printing plate for different filaments, please consult the 3D Printing Materials Guide. Easy to use: No screws are required for installation. After the BuildTak Printing Surface is directly pasted onto the E2, E2CF and E3 Flexible Plate, you can place it directly on the heating bed. There is no need to use a spatula when removing the model, you can just gently bend the E2, E2CF and E3 Flexible Plate with both hands to easily remove the model. High-quality materials: It is made of high-quality stainless steel, which is rust-resistant and tough to damage. Stronger magnetism: It stays stable on the heating bed and will not be easily dislodged during the printing process. Safety warnings: The edge of the E2, E2CF and E3 Flexible Plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands. Do not touch the printing plate with your hands during printing. After printing, the temperature of the E2, E2CF and E3 Flexible Plate is extremely high. Please wait for the E2, E2CF and E3 Flexible Plate to drop to room temperature before taking it out. When removing the model from the printing plate with a scraper, please be careful not to scratch your hands with the scraper. Please make sure to keep the scraper parallel to the printing plate when removing printed objects, so as not to damage the BuildTak printing surface.

Product description

Using high-quality stainless steel, E2, E2CF and E3 Flexible Plate has good flatness and durability, and has a strong magnetic force, which can be well absorbed on the heating bed. The flexible plate is flexible and easy to bend. You can directly remove the model by bending it. It can be bent up to 5000 times and is not easy to damage.

Included:

1×E2, E2CF and E3 Flexible Steel Build Plate



Product specifications:

Size: 370mm×255mm

Packaging Size (WxDxH): 370×259×8mm

Weight with Packaging: 39g

Material: stainless steel

Color: silver

Product features:

  • Durable: The printing plate can be reused at least 5000 times, and can withstand the high temperature of the nozzle and printing plate of the Raise3D printer (The maximum temperature that the E2, E2CF and E3 Flexible Plate can withstand is 110°C).
  • Strictly controlled printing plate thickness tolerance: E2, E2CF and E3 Flexible Plate is very flat, and any variation in the thickness of the printing plate is small.
  • Applicable to a variety of filaments: Raise3D Printing Build Surface is compatible with various filaments up to 300℃: PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill. For the setting temperature of the printing plate for different filaments, please consult the 3D Printing Materials Guide.
  • Easy to use: No screws are required for installation. After the BuildTak Printing Surface is directly pasted onto the E2, E2CF and E3 Flexible Plate, you can place it directly on the heating bed. There is no need to use a spatula when removing the model, you can just gently bend the E2, E2CF and E3 Flexible Plate with both hands to easily remove the model.
  • High-quality materials: It is made of high-quality stainless steel, which is rust-resistant and tough to damage.
  • Stronger magnetism: It stays stable on the heating bed and will not be easily dislodged during the printing process.

Safety warnings:

  • The edge of the E2, E2CF and E3 Flexible Plate is relatively sharp. When taking it out, please hold it carefully to prevent the plate from scratching your hands.
  • Do not touch the printing plate with your hands during printing.
  • After printing, the temperature of the E2, E2CF and E3 Flexible Plate is extremely high. Please wait for the E2, E2CF and E3 Flexible Plate to drop to room temperature before taking it out.
  • When removing the model from the printing plate with a scraper, please be careful not to scratch your hands with the scraper. Please make sure to keep the scraper parallel to the printing plate when removing printed objects, so as not to damage the BuildTak printing surface.

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.02.07064A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 34.99
Add to cart
Heating Rod for Raise3D E2, E2CF, E3Heating Rod for Raise3D E2, E2CF, E3 - view 2
Heating Rod (E2, E2CF and E3 Only)
Heating Rod for Raise3D E2, E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Heating Rod (E2, E2CF and E3 Only)

$ 45.99

Product details

  • ProductHeating Rod (E2, E2CF and E3 Only). Listed SKU: [S]5.35.12001A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • Compatibility & useLearn How to Replace the E2, E2CF & E3 Heating Rod

Product description

Packaging Size (WxDxH): 130x110x5mm

Weight with Packaging: 9g

Learn How to Replace the E2, E2CF & E3 Heating Rod

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.35.12001A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 45.99
Add to cart
Extruder Driven Gear for Raise3D E2, E3
Extruder Driven Gear (E2 and E3 Only)
Extruder Driven Gear for Raise3D E2, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Extruder Driven Gear (E2 and E3 Only)

$ 22.99

Product details

  • ProductExtruder Driven Gear (E2 and E3 Only). Listed SKU: [S]5.02.07025A03.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E3 Accessories.
  • Compatibility & useThis product is not available in your region.

Product description

Product specifications:

Packaging Size (WxDxH): 110×130×10mm

Weight with Packaging: 15.4g

For Raise3D E2 and E3 3D printers.

Product Identification

  • Product group: E2 Accessories; E3 Accessories
  • Listed SKU: [S]5.02.07025A03

Tech specs

Technical specifications load when you open this preview.

Sale price$ 22.99
Add to cart
Motion Controller Board for Raise3D E2, E2CF, E3Motion Controller Board for Raise3D E2, E2CF, E3 - view 2
Motion Controller Board (E2, E2CF and E3 Only)
Motion Controller Board for Raise3D E2, E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Motion Controller Board (E2, E2CF and E3 Only)

$ 249.99

Product details

  • ProductMotion Controller Board (E2, E2CF and E3 Only). Listed SKU: [S]5.04.07011A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • SpecificationsPackaging Size (WxDxH): 200x150x35mm Weight with Packaging: 123g Learn How to Replace the Motion Controller Board

Product description

Packaging Size (WxDxH): 200x150x35mm

Weight with Packaging: 123g

Learn How to Replace the Motion Controller Board

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.04.07011A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 249.99
Add to cart
Air Filter Fan for Raise3D E2, E2CF, E3Air Filter Fan for Raise3D E2, E2CF, E3 - view 2
Air Filter Fan (E2, E2CF and E3 Only)
Air Filter Fan for Raise3D E2, E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Air Filter Fan (E2, E2CF and E3 Only)

$ 19.99

Product details

  • ProductAir Filter Fan (E2, E2CF and E3 Only). Listed SKU: [S]5.17.07003A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • SpecificationsPackaging Size (WxDxH): 200x150x30mm Weight with Packaging: 79g

Product description

Packaging Size (WxDxH): 200x150x30mm

Weight with Packaging: 79g

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.17.07003A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 19.99
Add to cart
Left Hot End Assembly for Raise3D E2CF, E3Left Hot End Assembly for Raise3D E2CF, E3 - view 2
Left Hot End Assembly (E2CF and E3 Only)
Left Hot End Assembly for Raise3D E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Left Hot End Assembly (E2CF and E3 Only)

$ 199.99

Product details

  • ProductLeft Hot End Assembly (E2CF and E3 Only). Listed SKU: [S]3.01.1.012.023A01.
  • Product familyListed in the following Raise3D product groups: E2CF Accessories, E3 Accessories.
  • Compatibility & useFor Raise3D E2CF and E3 3D printers (for the Left Print Head with Silicon Carbide Nozzle). Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Product specifications:

Packaging Size (WxDxH): 110×130×10mm

Weight with Packaging: 9.6g

For Raise3D E2CF and E3 3D printers (for the Left Print Head with Silicon Carbide Nozzle).

Product Identification

  • Product group: E2CF Accessories; E3 Accessories
  • Listed SKU: [S]3.01.1.012.023A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 199.99
Add to cart
X Endstop for Raise3D E2, E2CF, E3X Endstop for Raise3D E2, E2CF, E3 - view 2
X Endstop (E2, E2CF and E3 Only)
X Endstop for Raise3D E2, E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

X Endstop (E2, E2CF and E3 Only)

$ 14.99

Product details

  • ProductX Endstop (E2, E2CF and E3 Only). Listed SKU: [S]5.04.07018A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • SpecificationsPackaging Size (WxDxH): 130x110x5mm Weight with Packaging: 6g

Product description

Packaging Size (WxDxH): 130x110x5mm

Weight with Packaging: 6g

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.04.07018A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart
Y/Z Endstop for Raise3D E2, E2CF, E3Y/Z Endstop for Raise3D E2, E2CF, E3 - view 2
Y/Z Endstop (E2, E2CF and E3 Only)
Y/Z Endstop for Raise3D E2, E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Y/Z Endstop (E2, E2CF and E3 Only)

$ 14.99

Product details

  • ProductY/Z Endstop (E2, E2CF and E3 Only). Listed SKU: [S]5.04.07001A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E2CF Accessories, E3 Accessories.
  • SpecificationsPackaging Size (WxDxH): 130x110x10mm Weight with Packaging: 8g

Product description

Packaging Size (WxDxH): 130x110x10mm

Weight with Packaging: 8g

Product Identification

  • Product group: E2 Accessories; E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.04.07001A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart
Filament Spool Holders for Raise3D E2, E3Filament Spool Holders for Raise3D E2, E3 - view 2
Filament Spool Holders (E2 and E3 Only)
Filament Spool Holders for Raise3D E2, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Filament Spool Holders (E2 and E3 Only)

$ 14.99

Product details

  • ProductFilament Spool Holders (E2 and E3 Only). Listed SKU: [S]3.01.1.018.019A01.
  • Product familyListed in the following Raise3D product groups: E2 Accessories, E3 Accessories.
  • SpecificationsPackaging Size (WxHxD): 130x110x45mm Weight with Packaging: 50g

Product description

Packaging Size (WxHxD): 130x110x45mm

Weight with Packaging: 50g

Product Identification

  • Product group: E2 Accessories; E3 Accessories
  • Listed SKU: [S]3.01.1.018.019A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 14.99
Add to cart
Right Hot End Assembly for Raise3D E2CF, E3Right Hot End Assembly for Raise3D E2CF, E3 - view 2
Right Hot End Assembly (E2CF and E3 Only)
Right Hot End Assembly for Raise3D E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Right Hot End Assembly (E2CF and E3 Only)

$ 199.99

Product details

  • ProductRight Hot End Assembly (E2CF and E3 Only). Listed SKU: [S]3.01.1.012.024A01.
  • Product familyListed in the following Raise3D product groups: E2CF Accessories, E3 Accessories.
  • Compatibility & useFor Raise3D E2CF and E3 3D printers (for the Right Print Head with Silicon Carbide Nozzle). Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Product specifications:

Packaging Size (WxDxH): 110×130×10mm

Weight with Packaging: 9.4g

For Raise3D E2CF and E3 3D printers (for the Right Print Head with Silicon Carbide Nozzle).

Product Identification

  • Product group: E2CF Accessories; E3 Accessories
  • Listed SKU: [S]3.01.1.012.024A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 199.99
Add to cart

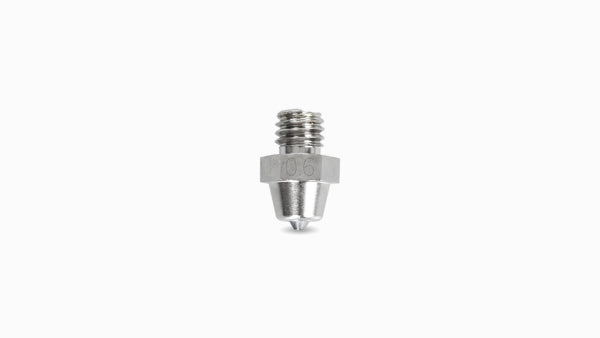

Silicon Carbide Nozzle 0.6mm for Raise3D Pro3 HS Series, E2CF, E3Silicon Carbide Nozzle 0.6mm for Raise3D Pro3 HS Series, E2CF, E3 - view 2
Silicon Carbide Nozzle 0.6mm (Pro3 HS Series, E2CF and E3 Only)
Silicon Carbide Nozzle 0.6mm for Raise3D Pro3 HS Series, E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

Silicon Carbide Nozzle 0.6mm (Pro3 HS Series, E2CF and E3 Only)

$ 99.99

Product details

  • ProductSilicon Carbide Nozzle 0.6mm (Pro3 HS Series, E2CF and E3 Only). Listed SKU: [S]3.01.1.022.029A01.
  • Product familyListed in the following Raise3D product groups: E2CF Accessories, Pro3 HS Series Accessories, E3 Accessories.
  • Compatibility & useProduct description: 0.6mm Sic nozzle

Product description

0.6mm Sic nozzle

Product specifications:

Net Weight: 2.9 g

Product Identification

  • Product group: E2CF Accessories; Pro3 HS Series Accessories; E3 Accessories
  • Listed SKU: [S]3.01.1.022.029A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 99.99
Add to cart
0566 Driven Gear for Raise3D E2CF, E3
0566 Driven Gear (E2CF and E3 Only)
0566 Driven Gear for Raise3D E2CF, E3Raise3D,INC. · Spare Parts

PRODUCT OVERVIEW

0566 Driven Gear (E2CF and E3 Only)

$ 39.90

Product details

  • Product0566 Driven Gear (E2CF and E3 Only). Listed SKU: [S]5.02.12035A01.
  • Product familyListed in the following Raise3D product groups: E2CF Accessories, E3 Accessories.
  • Compatibility & useFor Raise3D E2CF and E3 3D printers. Prices may vary by region. Customers outside of the US, please contact a local Raise3D distributor or reseller to get a quote or tech support.

Product description

Product specifications:

Packaging Size (WxDxH): 110×130×10mm

Weight with Packaging: 6.1g

For Raise3D E2CF and E3 3D printers.

For E3 users, please note: this gear is only compatable with the upgraded composite filament print head with the silicone carbide nozzle, not the standard print head.

Product Identification

  • Product group: E2CF Accessories; E3 Accessories
  • Listed SKU: [S]5.02.12035A01

Tech specs

Technical specifications load when you open this preview.

Sale price$ 39.90
Add to cart
3D Printer | Raise3D3D Printer | Raise3D

Pioneering Flexible Manufacturing

Raise3D is rooted in 3D printing technology, empowers variousindustries, and implements flexible manufacturing.

Our Mission

In an era where adaptability and efficiency are paramount, Raise3D stands at the forefront of the 3D printing industry, championing the mission to Facilitate Flexible Manufacturing with 3D Printing. As a leading 3D printer manufacturer, Raise3D is dedicated to empowering businesses across diverse industries with cutting-edge additive manufacturing solutions that redefine traditional production processes.

Trusted by Industry Leaders

Over 15,000 business, schools and organizations trust Raise3D printers. Google, Microsoft, Intel, Amazon, Western Digital, Tesla, Nissan, Honda, Delta Air Lines, Rockwell Collins, US Air Force, UPS, American Express, BASF, Honeywell, Thermo Fisher Scientific, CDW, Wesco, Macy’s, Twenty-First Century Fox, Universal Studio…

60,000+ Industrial Clients’ Choice

Serving 173 Countries and Regions around the World. The Raise3D trademark has been registered in 65 major global markets such as China, the United States, Russia, the European Union, the United Kingdom, Brazil, Australia, Africa, Japan, Indonesia, and Singapore.

Show More

FAQs

Can I track my order?

Yes, you can track your order. Once your shipping label is created, our website will automatically notify you with the tracking number.

For parcel shipments (via UPS or FedEx), you can track the shipment directly using the tracking number provided.

For printer orders (which are heavy and shipped via LTL Freight), tracking information will be shared once the shipment is arranged. We will provide the carrier name and PRO number (tracking number). You can track your printer by searching the carrier name and PRO number on Google or the carrier’s website.

If you leave your email address with your order and request tracking updates, we will also send a real-time tracking link to your email.

Where do you ship to?

We currently ship to all 48 contiguous U.S. states. For most U.S. addresses, you can place your order directly through our website.

For shipments to Alaska, Hawaii, or U.S. territories (such as Puerto Rico), additional shipping arrangements may be required. Please contact us before placing your order.

For shipments to Canada or Mexico, please email us or reach out to your sales representative for assistance.

What are the shipping rates?

Shipping rates for UPS and FedEx are automatically calculated by our system based on the weight and dimensions of the items in your order.

orders over $90 qualify for free shipping.

For printers and cabinets, the base shipping fee is $250 per unit when delivered to a commercial address.

Additional fees may apply based on the delivery location and unloading conditions:

  • Residential addresses, schools, universities, hospitals, or any location with limited access will incur a Limited Access Delivery Fee.
  • If the receiving location does not have a loading dock or forklift, a Liftgate Service Fee will be added to allow the shipment to be unloaded safely from the truck.

Please ensure the delivery location is appropriately equipped to avoid unexpected charges or delays.

3D Printer | Raise3D
