Resins

Fast iteration for general purpose prototyping

Standard White Resin is an easy-to-print well-rounded resin which provides fine detail, high accuracy and a matte smooth surface finish for an easier and more efficient post-processing process.

Standard White Resin is chosen as neutral undertones, making a perfect base for painting and other post-processing. Excellent print quality and ease of use make it ideal for general purpose prototyping, as well as presentation-ready models for art, design and industrial applications.

Benefits

• Easy-to-print with high accuracy
• Smooth and precise details
• Matte surface finish

Applications

• Prototyping and design
• Models with small features and intricate details
• Model for painting and other post-processing

Printing Settings

It is recommended to use the default printing profiles available in ideaMaker.

After printing, it’s recommended to not leave a successful but unwashed model in the printer for too long. This will prevent the model from over-swelling, which may cause dimensional deviations or support softening.

For more printing information, please read Raise3D DF2 3D Printer User Manual.

Rigid engineering end-use parts

Rigid 3K Resin is designed for stiff and strong parts where high strength, high rigidity and heat resistance are required. This material delivers excellent results in part accuracy as well as mechanical and thermal properties.

Rigid 3K Resin is a great performance material for a wide range of engineering end-use parts under various working conditions, such as thin-wall functional parts, connectors, brackets, jigs & fixtures, and mounts and brackets.

Features

• 3263 MPa Young’s modulus
• 78 MPa tensile strength
• 97°C HDT @ 0.45 MPa
• 30 J/m Izod notched impact

Benefits

• High rigidity
• Excellent part strength
• Heat resistance
• Rigidity similar to glass fiber reinforced thermoplastic materials

Applications

• Robust prototypes
• Thin-wall parts
• Jigs & fixtures
• Connectors
• Mounts and brackets

Printing Settings

It is recommended to use the default printing profiles available in ideaMaker.

After printing, it’s recommended to not leave a successful but unwashed model in the printer for too long. This will prevent the model from over-swelling, which may cause dimensional deviations or support softening.

For more printing information, please read Raise3D DF2 3D Printer User Manual.

Fast, rigid and easy-to-use resin

Draft Grey resin is a photosensitive resin product that can achieve rapid printing and easy post-processing, providing an ideal choice for users needing to print the prototype model quickly. It can meet the needs of markets such as industry and education. It can be used to print initial models, rapid product design iterations, high-yield parts, 3D Print demonstration parts, medical teaching, anatomical models, teaching tool models, art sculpture, and other art display parts, etc.

Benefits

• Fast printing speed
• High printing success rate
• Low viscosity
• Smooth surface
• Easy to clean

Applications

• Rapid prototypes validation
• High throughout parts
• Industrial design parts
• Art and sculpture display parts, etc

Printing Settings

• Gently shake the resin bottle before printing to mix the resin evenly and then import it into the resin tank for printing, otherwise it will affect the appearance effect and material performance of the final printed part.
• It is recommended to use the default printing profiles available in ideaMaker.
• After printing, it’s recommended to not leave a successful but unwashed model in the printer for too long. This will prevent the model from over-swelling, which may cause dimensional deviations or support softening.
• For more printing information, please read Raise3D DF2 3D Printer User Manual.

Strong and tough applications

Tough 2K Resin is a tough and strong material with excellent ductility, toughness and impact resistance. As a result, it is ideally suitable for end-use parts where performance and durability are needed.

Tough 2K Resin exhibits strength and rigidity similar to ABS, and its excellent toughness and impact resistance make it suitable for a variety of performance prototyping and tooling applications, including strong and tough prototypes, end-use parts, jigs and fixtures, and manufacturing aids.

Features

• 45 MPa tensile strength
• 35% elongation at break
• 31 J/m Izod notched impact
• 2158 MPa Young’s modulus
• 68°C HDT @ 0.45 MPa

Benefits

• Tough and strong
• Excellent toughness and impact resistance
• Strength and rigidity similar to ABS

Applications

• Strong and stiff prototypes
• Jigs and fixtures
• Manufacturing aids
• Housings and enclosures

Printing Settings

It is recommended to use the default printing profiles available in ideaMaker.

After printing, it’s recommended to not leave a successful but unwashed model in the printer for too long. This will prevent the model from over-swelling, which may cause dimensional deviations or support softening.

For more printing information, please read Raise3D DF2 3D Printer User Manual.

High resolution for detailed models

High Detail Resin features an ultra-high resolution matte appearance to bring your visual prototypes and model designs to life. The smooth apricot surface finish has a professional appearance and simplifies various post-processing and finishing methods (e.g., painting and plating).

High Detail Resin is ideal for high-resolution prototypes and high-precision industrial parts.

• Ultra-fine details and high resolution
• Ready for painting and plating
• Excellent matte surface finish

Applications

• Ultra-high resolution and detailed prototypes
• Models for painting and plating

Printing Settings

It is recommended to use the default printing profiles available in ideaMaker.

After printing, it is recommended to not leave a successful but unwashed model in the printer for too long. This will prevent the model from over-swelling, which may cause dimensional deviations or support softening.

For more printing information, please read Raise3D DF2 3D Printer User Manual.

Highly transparent and easy-to-use resin

High Clear resin is an easy-to-print and transparent resin that can be used to manufacture highly transparent components. After printing, the model presents a semi-transparent state with slightly blue. After appropriate post-processing such as sanding, polishing, and varnishing, it can achieve higher transparency and is suitable for shell components, prototype design, optical parts, fluid tubes, and other application scenarios.

Benefits

• High success rate
• High precision
• Clear presentation of details
• Different degrees of transparency for flexible use

Applications

• Transparent prototype production, such as optical device housing, display models, etc.
• Liquid flow analysis, internal flow channels, etc.
• Precision components manufacturing, transparent protective covers, small mechanical components, and complex assembly parts.
• Prototype development of consumer goods, the fields of consumer electronics or household items, etc.

Printing Settings

• Before printing, it can be left for a period of time, waiting for the elimination of air bubbles, otherwise it will affect the visual effect and clarity of the final prints.
• It is recommended to use the default printing profiles available in ideaMaker.
• After printing, it’s recommended to not leave a successful but unwashed model in the printer for too long. This will prevent the model from over-swelling, which may cause dimensional deviations or support softening.
• For more printing information, please read Raise3D DF2 3D Printer User Manual.

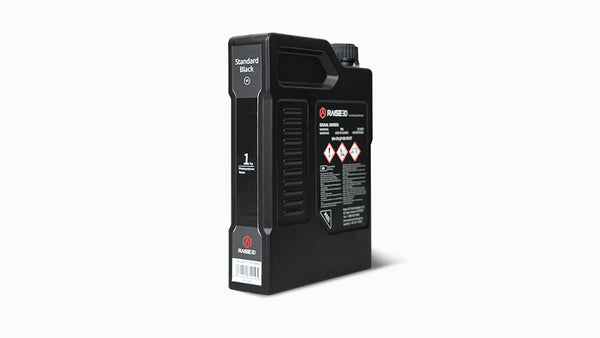

Standard Black Resin is a 3D printing material with excellent performance, strong detail performance, wide application range and cost performance. It is specially developed to meet the needs of high-precision molding and high-quality surface effects. Its superior mechanical properties, stable chemical properties and ease of use make it an ideal choice for DLP 3D printing equipment.

The model printed with Standard Black Resin presents deep and uniform black, with good mechanical strength and durability. Whether it is industrial design, education and scientific research, or artistic creation, it can help users quickly realize their creativity and design needs.

Benefits

• High precision
• Smooth surface
• Strong details
• Easy to print
• Excellent mechanical properties

Applications

• Presentation and assembly of prototypes
• Micro-feature and complex detail models
• Film and artistic props
• Jigs and fixtures
• Small batch production

Printing Settings

• Shake or stir well before printing;
• Avoid light storage, prevent ultraviolet radiation;
• Make sure that the resin used for printing is sufficient;
• The residue generated in the printing process needs to be filtered;
• Avoid skin contact and wear protective gloves.
• For more printing information, please read Raise3D DF2 3D Printer User Manual.

High-performance ESD resin, providing cost-effective solutions for industrial ESD-safe applications

ESD resin is a high-performance 3D printing material specifically designed for applications that require static-dissipative parts to repel dust and powder, to prevent sparks and explosions, and to protect sensitive electronics from static discharge. This material possesses not only outstanding mechanical properties (rigid and strong thermoplastic, e.g. PBT, POM), but also shows a stable anti-static property (105 – 108 Ohms/sq), which can effectively reduce the accumulation and release of static electricity, avoiding the electrostatic impact for industrial applications. This material can be widely used in fields such as electronics and aerospace, etc.

Benefits

• Stable ESD property (105 – 108 Ohms/sq)
• Superior mechanical property (E-modulus: 3.0 GPa, UTS: 68 MPa)
• High resolution and surface quality

Applications

• Jigs & fixtures for electronics and automotive manufacturing
• Electronic housings, storage trays, electronic prototypes and parts
• Sensor mounting brackets, electrical connector housings, etc.

Printing Settings

• Shake or stir thoroughly before printing;
• Store in a dark place to prevent UV light exposure;
• Ensure sufficient resin remains for printing;
• Filter residues generated during the printing process;
• Avoid skin contact and wear protective gloves.
• For more printing information, please read Raise3D DF2 3D Printer User Manual.
