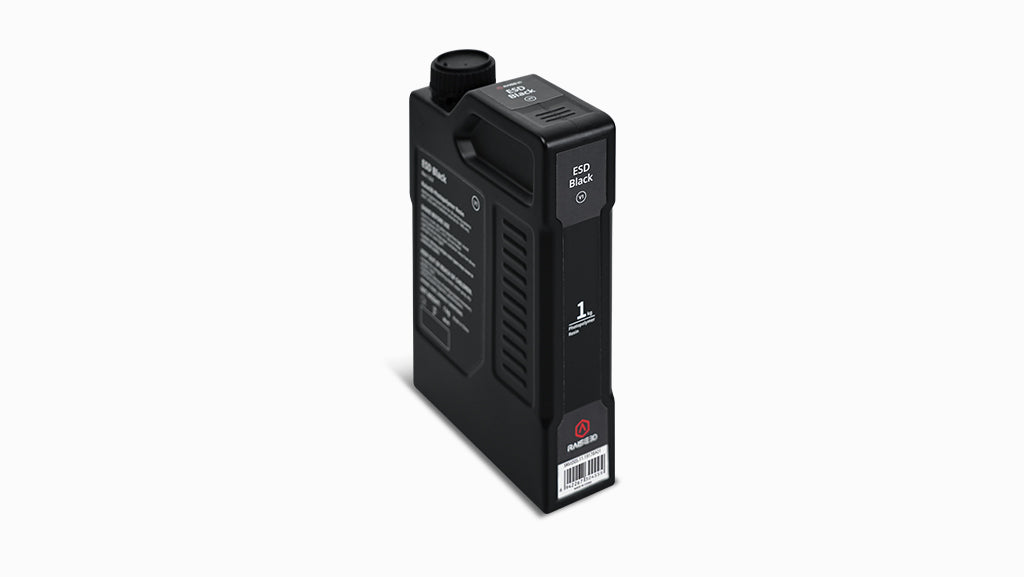

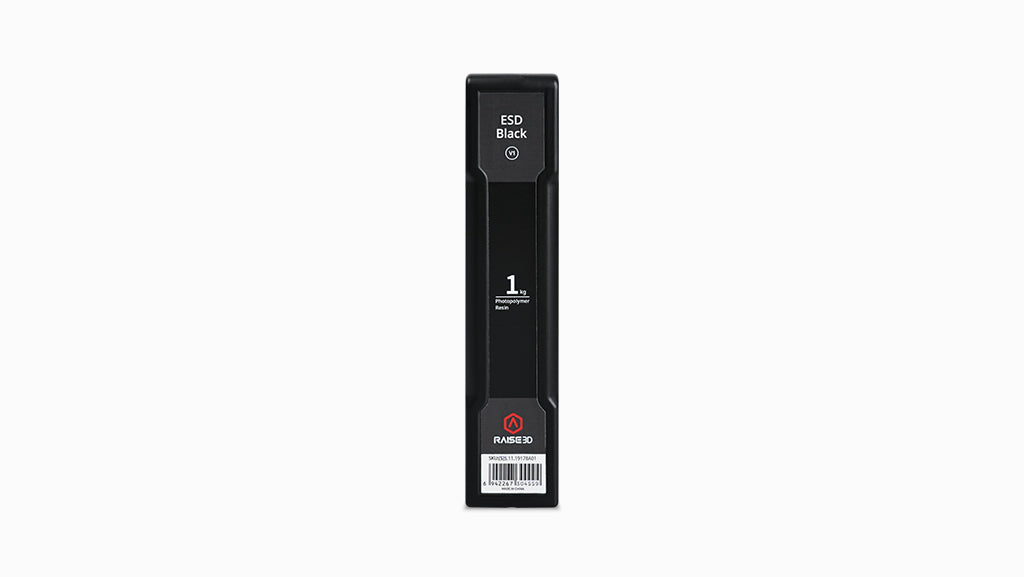

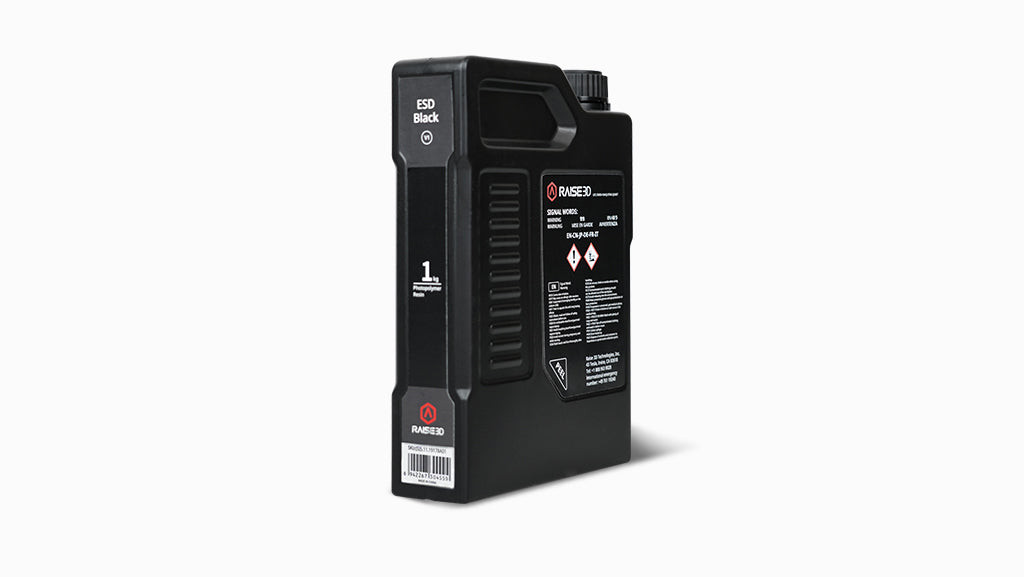

Raise3D ESD Black Resin 1kg

High-performance ESD resin, providing cost-effective solutions for industrial ESD-safe applications

ESD resin is a high-performance 3D printing material specifically designed for applications that require static-dissipative parts to repel dust and powder, to prevent sparks and explosions, and to protect sensitive electronics from static discharge. This material possesses not only outstanding mechanical properties (rigid and strong thermoplastic, e.g. PBT, POM), but also shows a stable anti-static property (105 – 108 Ohms/sq), which can effectively reduce the accumulation and release of static electricity, avoiding the electrostatic impact for industrial applications. This material can be widely used in fields such as electronics and aerospace, etc.

Benefits

• Stable ESD property (105 – 108 Ohms/sq)

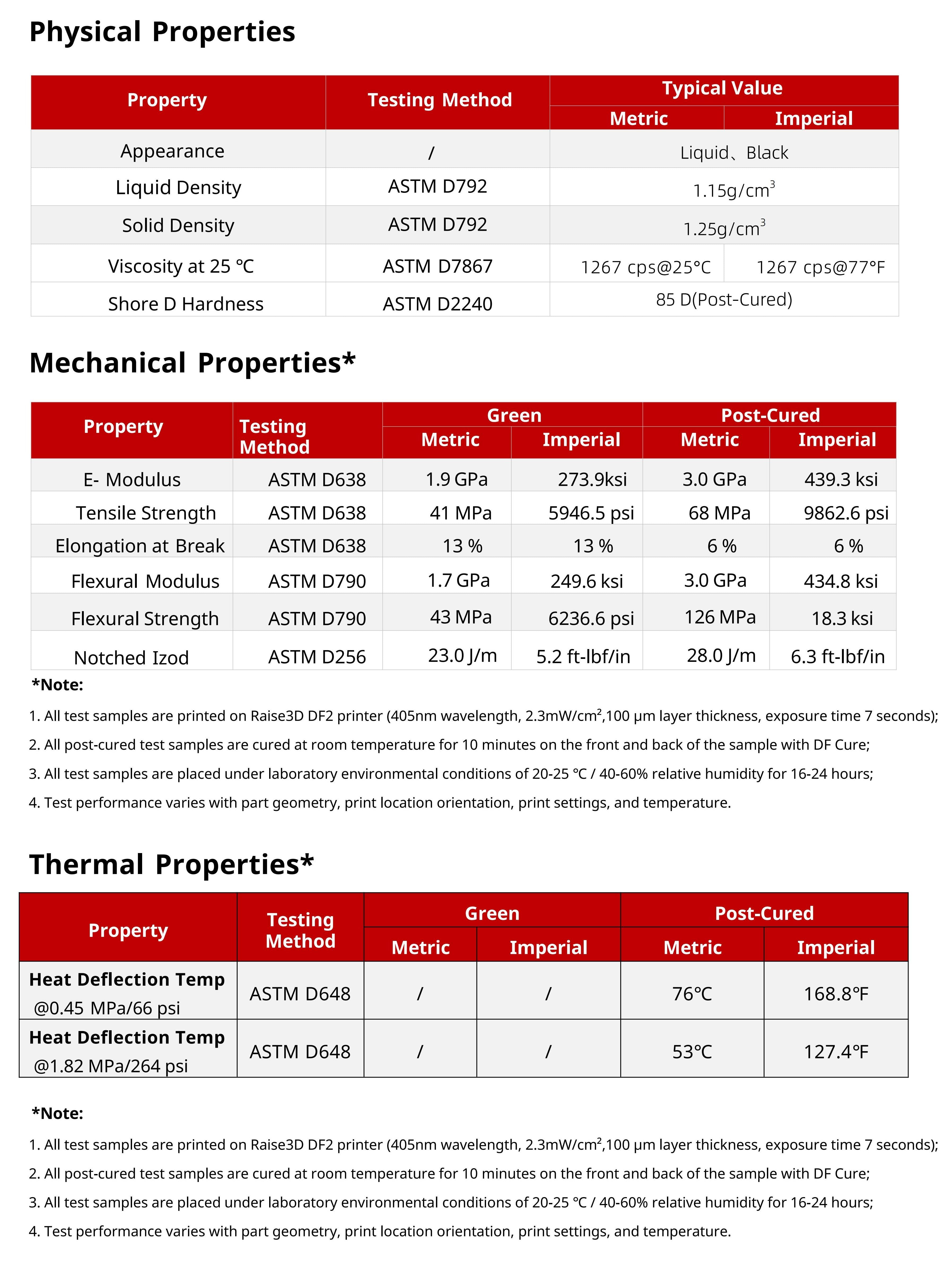

• Superior mechanical property (E-modulus: 3.0 GPa, UTS: 68 MPa)
• High resolution and surface quality

Applications

• Jigs & fixtures for electronics and automotive manufacturing
• Electronic housings, storage trays, electronic prototypes and parts
• Sensor mounting brackets, electrical connector housings, etc.

Printing Settings

• Shake or stir thoroughly before printing;
• Store in a dark place to prevent UV light exposure;
• Ensure sufficient resin remains for printing;
• Filter residues generated during the printing process;
• Avoid skin contact and wear protective gloves.
• For more printing information, please read Raise3D DF2 3D Printer User Manual.
