Raise3D Industrial PPA GF Filament
Color:

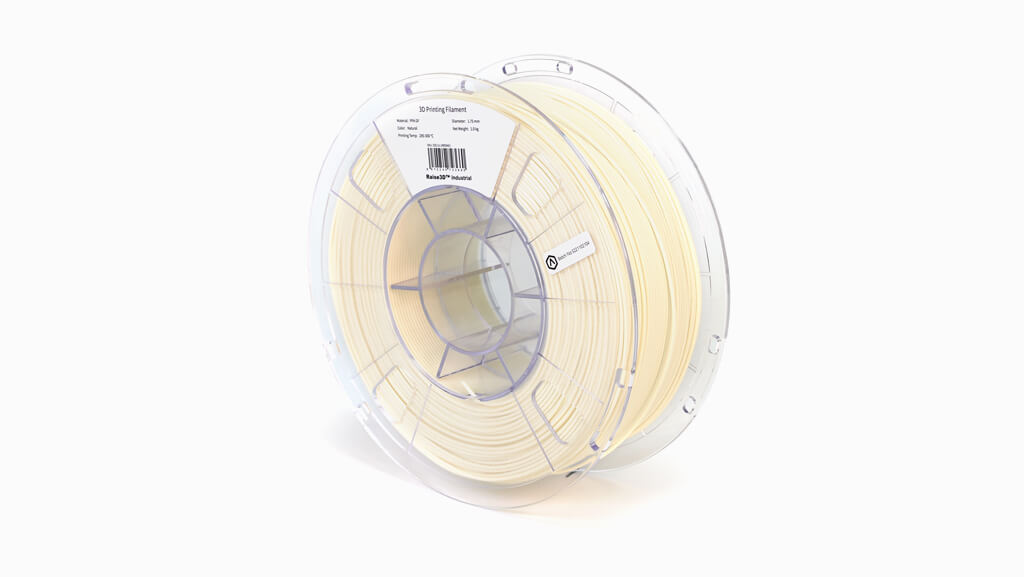

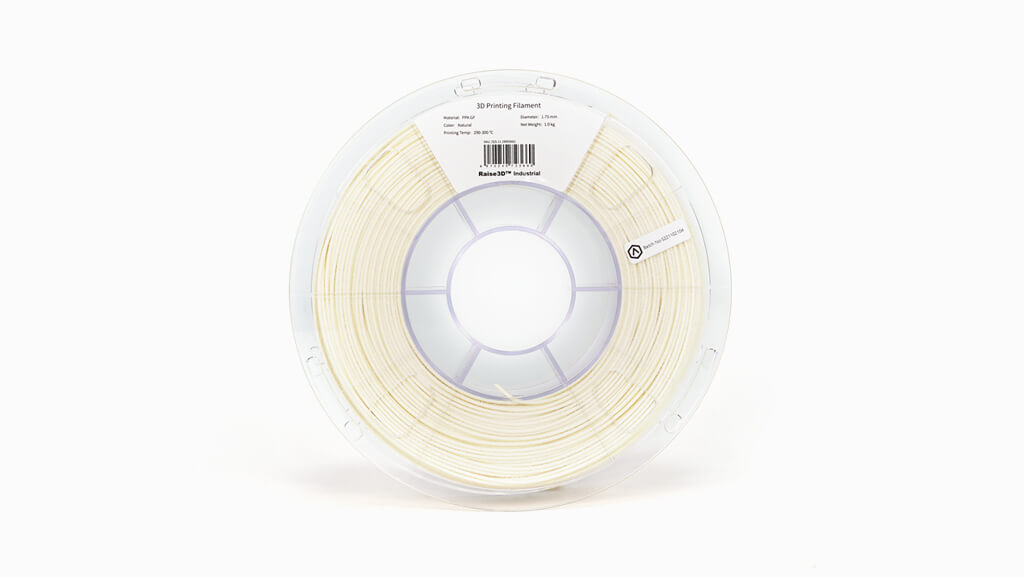

Natural (PMS: 11-0602 TPX / RAL: 9016)

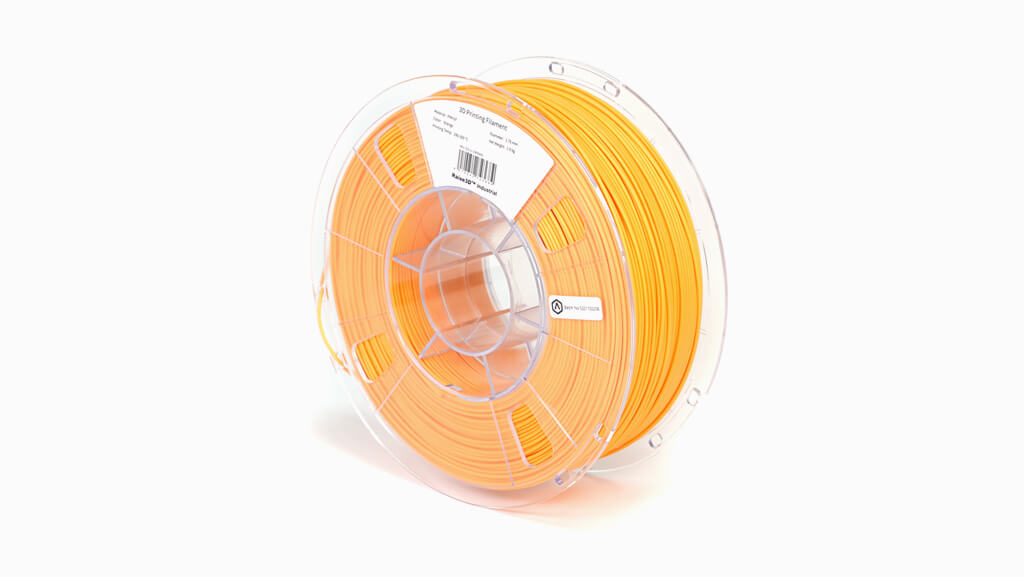

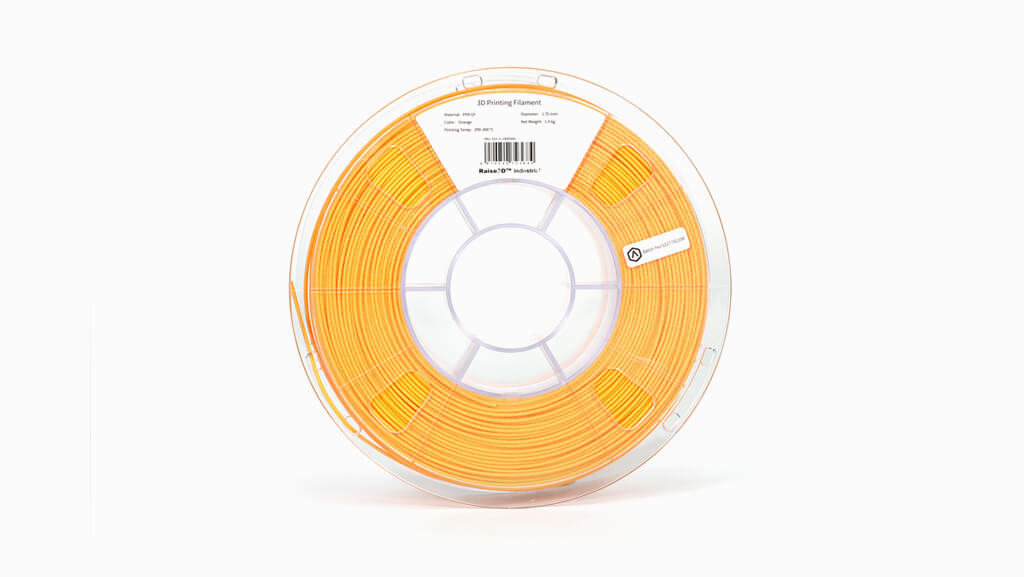

Orange (PMS: 151C)
Specifications: 1.75 mm/ 1 kg
Raise3D Industrial PPA GF is a glass fiber-reinforced composite filament material based on PPA (polyphthalamide or high-performance/high-temperature Nylon). PPA can be distinguished from aliphatic polyamides (e.g.PA6) by a higher melting point, glass transition temperatures (Tg), lower moisture absorption, and greater dimensional stability. The incorporation of short glass fibers further improves upon the properties of PPA matrix, which makes PPA GF printed parts promising for end-use applications in the automotive, aerospace, electrical and electronics (E&E) industries.
This filament is compatible with Raise3D Industrial PPA Support Filament.
Please find the slicing profiles of Raise3D Industrial PPA GF Filament below:
E2CF: Speed – Standard – High Quality
Pro3 Series/ Pro2 Series/ E2/ N Series: N/A
*Due to the higher fiber content of PPA filaments, when printing PPA CF and PPA GF, an extra wear-resistant nozzle and extrusion system are required for a consistent printing performance. The E2CF and the RMF500 are specially designed for printing high-performance fiber-reinforced composite filaments. As such, please use the Raise3D Industrial PPA CF filament and PPA GF filament exclusively on the E2CF and the RMF500.
RoHS – Certificate of Compliance
Raise3D-Filament Compliance With Reach
How to Import Slicing Profile to ideaMaker
Shop With Confidence!
- Free ground shipping within continental United States on orders over $90 (3D Printers Excluded).
- For delivery of the USA, expedited delivery availability (additional cost may apply), or additional questions, please contact sales@raise3d.com or +1-888-963-9028.
- The shown price excludes tax, which will be calculated during check out.

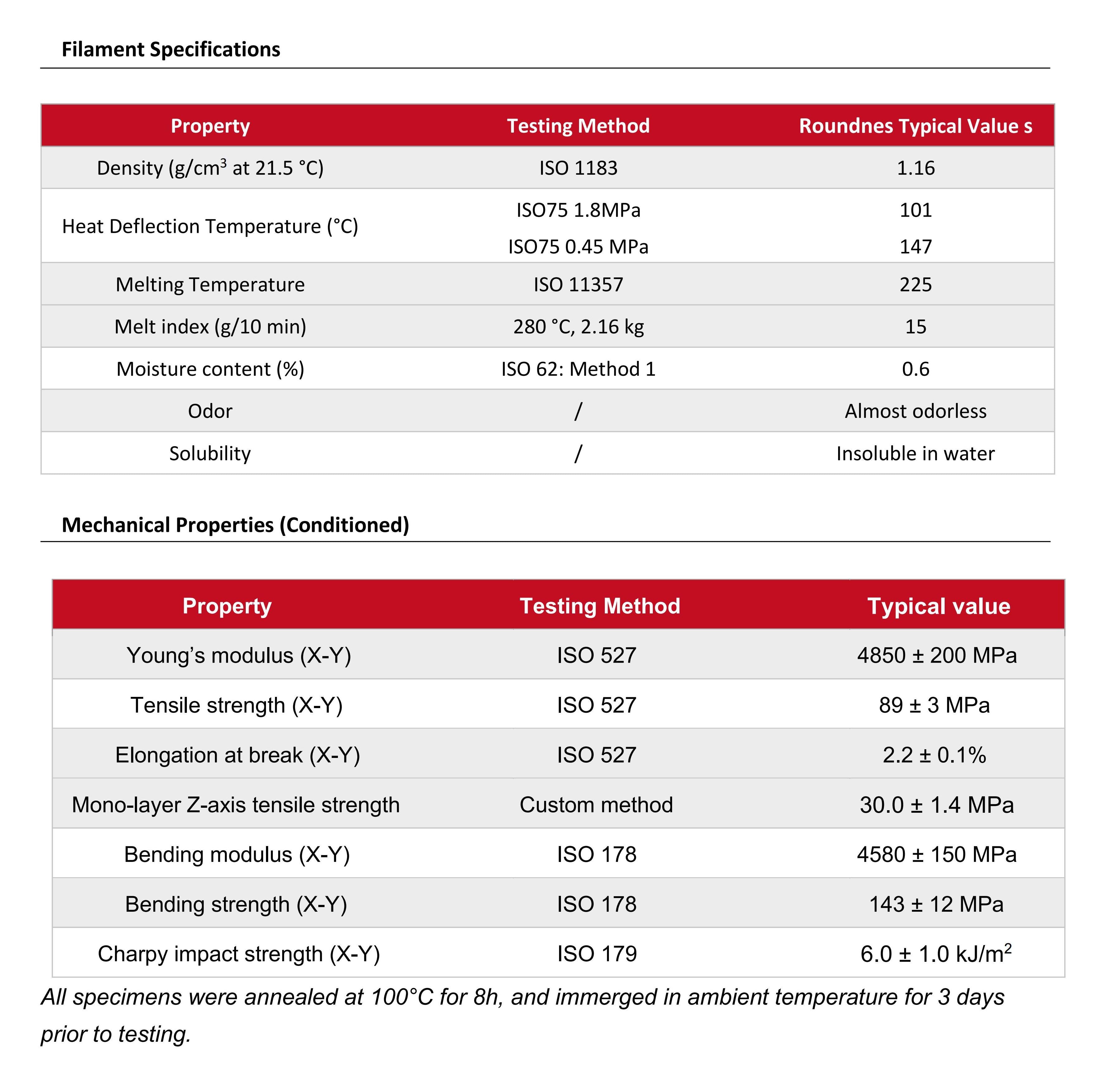

Tech Specs
