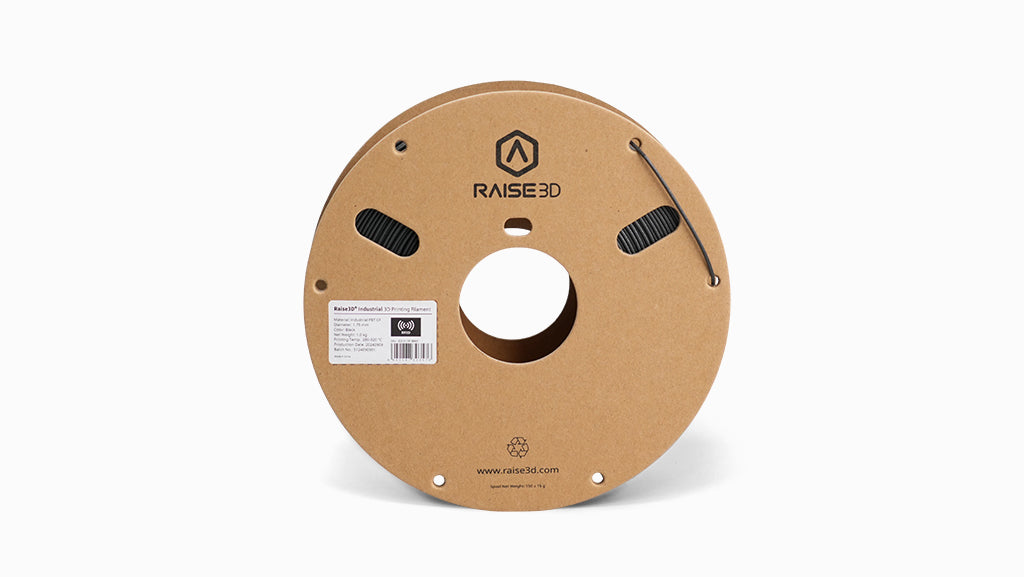

Raise3D Industrial PET CF Filament - RFID

Color: Black (PMS: 426C/RAL 7021)
Specifications: 1.75 mm/ 1 kg

Raise3D Industrial PET CF is a carbon fiber-reinforced composite filament based on PET (Polyethylene terephthalate). Well-dispersed 15wt% carbon fibers enhance the rigidity, strength, heat and chemical resistance of the PET matrix. After annealing, PET CF stabilizes its heat resistance at around 150ºC and tensile modulus and strength of over 6 GPa and 80 MPa respectively. Compared to carbon fiber-reinforced Nylon filament, the high printability, dimensional stability, high creep resistance and low moisture absorption makes PET CF an ideal choice for reliable carbon fiber composite printing for strong and cost-effective end-use applications, such as jigs. fixtures, functional parts.

This filament is compatible with Raise3D Industrial PET Support Filament.



About the RFID version filament

This version comes with an RFID tag. When printed on the Pro3 HS Series 3D printers, the Pro3 HS Series RFID filament sensor can identify the filament type and verify the print parameters. However, this type of RFID-enabled filament can also be used on other compatible Raise3D 3D printers, even if the printer is not equipped with an RFID sensor.


Please find the slicing profiles of Raise3D Industrial PET CF Filament below:

E2CF: Speed - Standard - High Quality

Pro3 Series/ Pro2 Series/ E2/ N Series: N/A

*Due to the higher carbon fiber content of PET filaments, when printing PET CF, an extra wear-resistant nozzle and extrusion system are required for a consistent printing performance. The E2CF and the RMF500 are specially designed for printing high-performance fiber-reinforced composite filaments. As such, it is recommended to use the Raise3D Industrial PET CF filament exclusively on the E2CF and the RMF500.

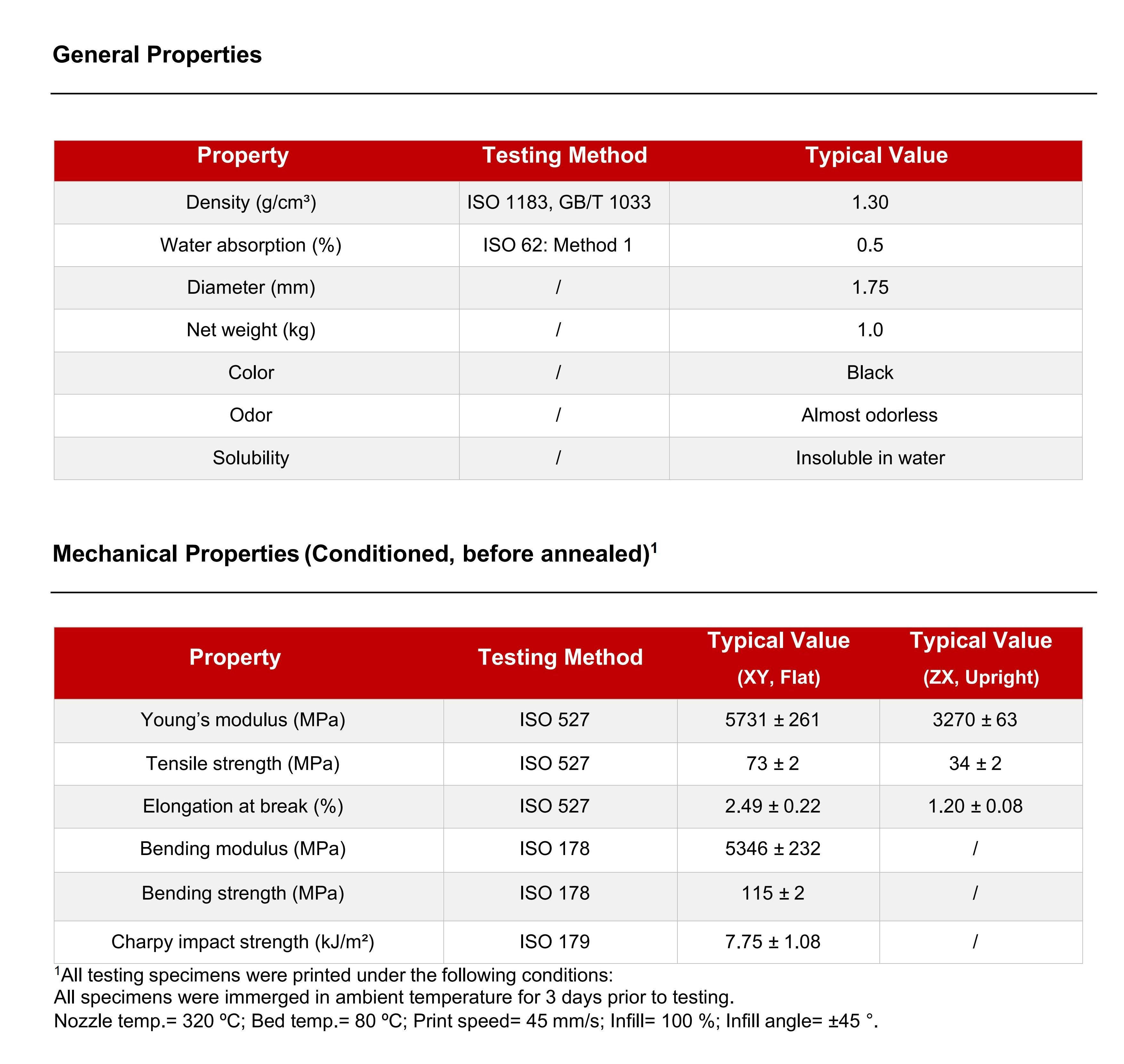

Technical Data Sheet

Safety Data Sheet

RoHS – Certificate of Compliance

Raise3D-Filament Compliance With Reach

How to Import Slicing Profile to ideaMaker
