Raise3D Hyper Core PPA CF25 Filament

$ 229.00
Raise3D Hyper Core PPA CF25 Filament

Raise3D Hyper Core PPA CF25 Filament

$ 229.00

Congratulations! You added this item to your Cart.

Continue shopping

Go to Shopping Cart

Need accessories to go with your 3d printer? Check our Top 6 Essential 3D Printer Accessories.

Raise3D Hyper Core PPA CF25 Filament

Color:

Raise3D Hyper Core PPA CF25: Black (RAL 9011)

Specifications: 1.75 mm/ 1 kg



The Hyper Core filament line is oriented towards a new-generation of professional and industrial fiber-reinforced composite filaments for Hyper FFF®.

Fiber-reinforced composite filaments are the ideal material for industrial and end-use parts production and heavy-duty applications with superio strength, stiff and heat resistance. However, high-speed printing using fiber-reinforced filament brings many challenges, such as lower flowability and poorer interlayer bonding quality, and quicker wearing out of the nozzle.

To overcome these challenges, Raise3D Hyper Core PPA CF25 filament is an extrusion technology that has been specially developed to form a fiber-rich inner core where most of the carbon fiber (25 wt.%) is well-aligned and distributed. During high-speed printing, the outstanding heat conductivity of the carbon-fiber rich core will speed up filament melting in the hot end. Meanwhile, more residual thermal energy is obtained from the fiber-rich inner core, improving polymer healing and welding processes across the interface of adjacent and lines. Compared to the regular PPA CF, the Hyper Core PPA CF25 significantly improves the Z-direction strength, the surface quality and also the nozzle lifetime. It is ideal for industrial grade applications where high performance, stability and efficiency are required.



Compatibility

Printer:

1 kg Filament: Raise3D Pro3 Series with Hyper Speed Upgrade Kit

Filament:

Raise3D Industrial PPA Support

Nozzle:

0.4 mm (default), 0.2/ 0.6/ 0.8/ 1.0 mm (slicing profiles coming soon)



*Please use the latest ideaMaker Version 5.0.5 Beta for Hyper Core PPA CF25 filament.

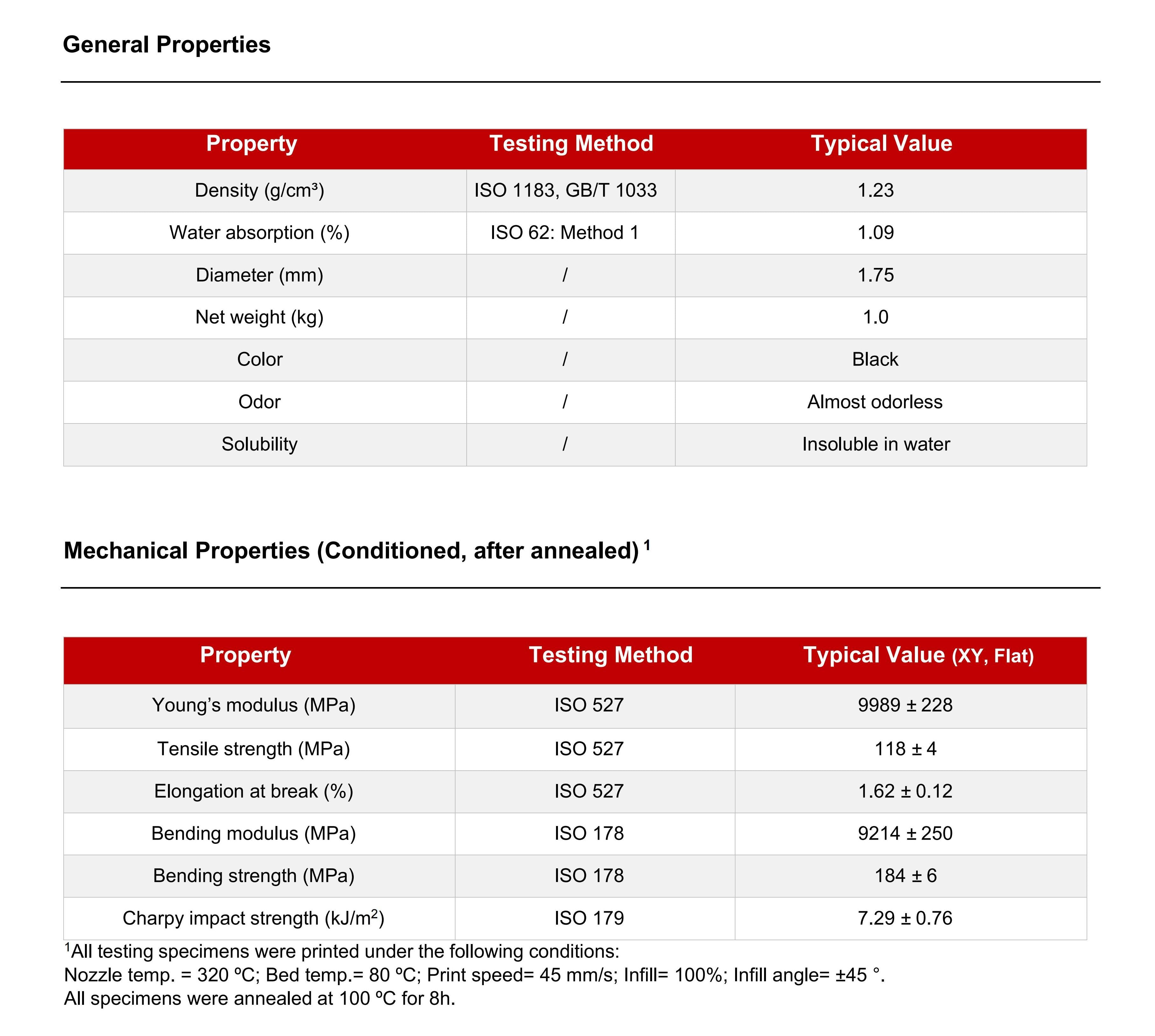

Raise3D Hyper Core PPA CF25 Technical Data Sheet

Safety Data Sheet

Certificate of Compliance

How to Import Slicing Profile to ideaMaker
